Description:

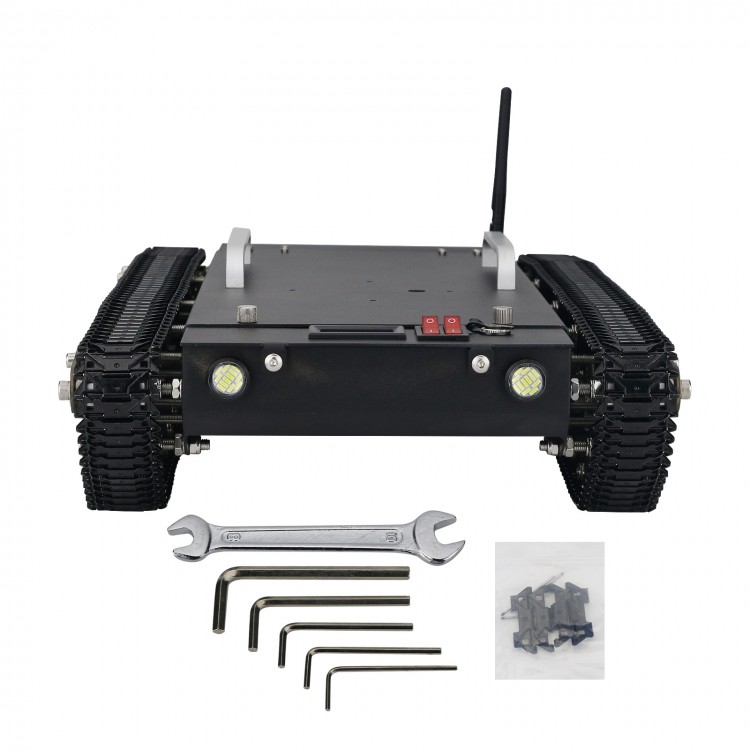

- Product: Upgraded WT-500S Samrt Robot Car
- Working Power: 2-70W
- Working Voltage: 6-12V
- Working Current: 1.5-8A
- Reducation Ratio: 1:30
- Caterphiler Band Wirth: 41MM
- Meterials: Steel
- Working Load: 30KG
- Weight: About 8 KG
- Size:500*300*120
Features:
- the Upgrade WT-500S is made of high-end steel metal, and has done the high-temperature processing in its surface.
- 2pcs 12V LED Lamp have been install into the head, easy to drive at night.
- 550 powerful gear motor support it to move smoothly.
- The working load up to 30kg, help to carry things easily
Motor Parameters:
- Reduction Ratio: 1:30
- Rated Voltage: 12V
- No Load Speed: 617±12% RPM
- No Load Current: 2000mA Max.
- Rated Speed: 560±12% RPM
- Rated Current: 8500mA Max.
- Rated Torque: 5.7Kgf·cm
- Stall Current: 56000mA Max.
- Stall Torque: 40 Kgf.cm Min.
- Stall allowed or not: NO
- Direction (CW/CCW): CW
- Driving Motor Model: 550#
- No Load Speed: 18500±12% RPM
- No Load Current: 1300mA Max.
- End Play: 0.5mm Max.
Package Included:
- 1 x Upgraded WT-500S Samrt Robot Car
Note: There is not including control system and battery.
