| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $83.16 | $81.47 | $78.92 | $75.53 | Contact US |
OC3-ADJ 75ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 50ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75

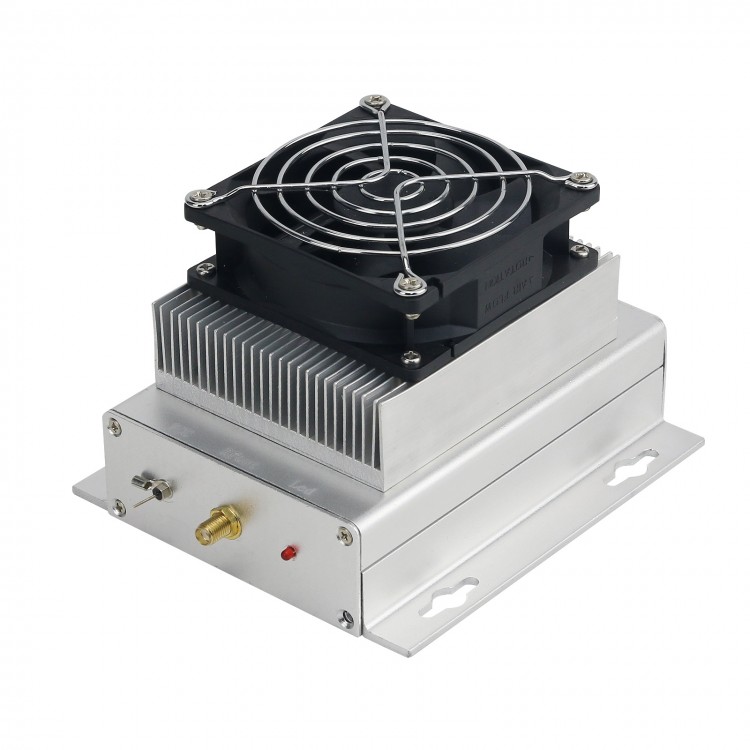

30W RF Power Amplifier 915MHz (850-960MHz) Radio Frequency Amplifier with Heatsink Fan
Technical Parameters:
- Operating Frequency: 915MHz (850-960MHz)
- Input Power: 3dB-12dBm(Can be Customized)
- Output Power: 40-45dBm (10-30W)
- Gain: 40dB
- Power Supply: 20-28V
- Current of Power Supply: 3.0A (Varies with Output Power)
- System Impedance: 50Ω
- Connector Type: SMA-K
- Cooling Way: Smart Temperature Control Fan
- Size: 130 x 110 x 45mm (L*W*H)
Package Included:
- 1 x RF Power Amplifier
Note: It is forbidden to work with no load/load serious mismatch.
