32BIT High Current Alexmos 3 Axis Brushless Gimbal BGC Control Board + Shell for FPV Flight Photography

32BIT High Current Alexmos 3 Axis Brushless Gimbal BGC Control Board + Shell for FPV Flight Photography

Description:
- YES, this is a GENUINE Alex Mos new 32 bit 3 axis controller! 12AMPS per port.The controller can be used for building BIG gimbal for Professional use 3-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers.  Unlike the Simple BGC board, this board is built for heavy duty and high power output.

Specifications:
- Power supply voltage: 3S to 6S
- Current handling up to 12 Amps Constant per EACH motor port
- Dimension of the board: 67(lgh)×37(wdt) x 15(hgt) mm
- Distance between the mounting holes: 45 mm
- Diameter of the mounting holes: 3 mm
- Maximum motor current: 18 A
- Weught:22g

Basic functions of the controller:
- 32-bit MCU — ARM Cortex M4. Effectively calculates the complex tasks for 3-axis stabilization.
- Allows camera control with the RC or analog joystick.
- Use several switchable profiles for different modes of operation
- Supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.
- Battery voltage monitoring, compensating voltage drop in the PID-regulator.
- Low battery alarm (output to 5V active buzzer).
- Increased number of inputs for controlling signals + 3 additional reserved input/output AUX1-AUX3.
- Can supply up to 1A current for external devices on the 5V power line.
- Dedicated UART-socket to connect optional Bluetooth module
- Reverse-polarity protection, overheat and overcurrent protection
- USB interface for the PC connection, to configure, control and upgrade firmware.
- Graphical user interface to manage the settings. Windows / OS X / Linux versions.
- Control through the Serial-protocol using dedicated API.
- Improved attitude estimation algorythms
-Optional second IMU, that will increase the short-term precision of the stabilization 10x-30x times and will make stable work in any frame position.

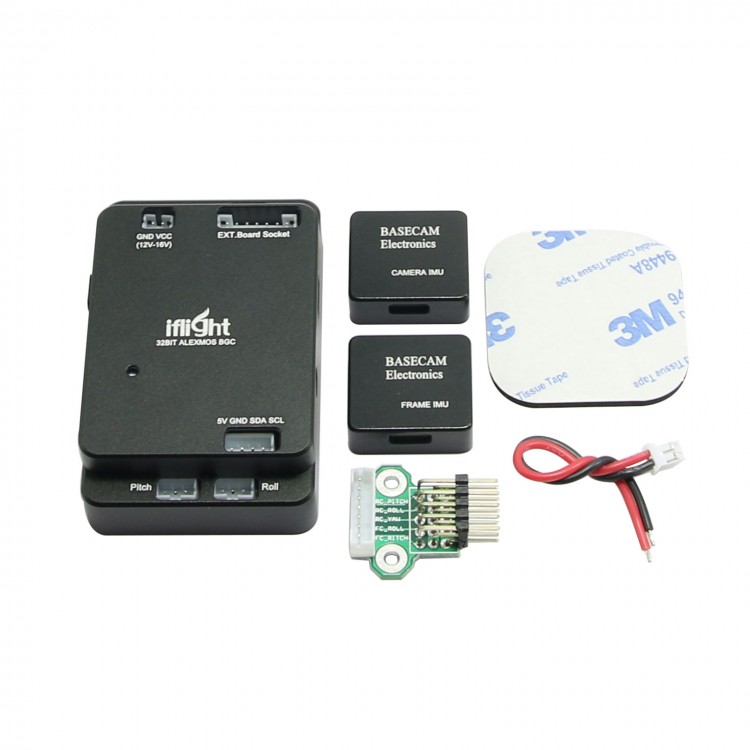

Package includes:
- Control board x 1
- Shell x 1
