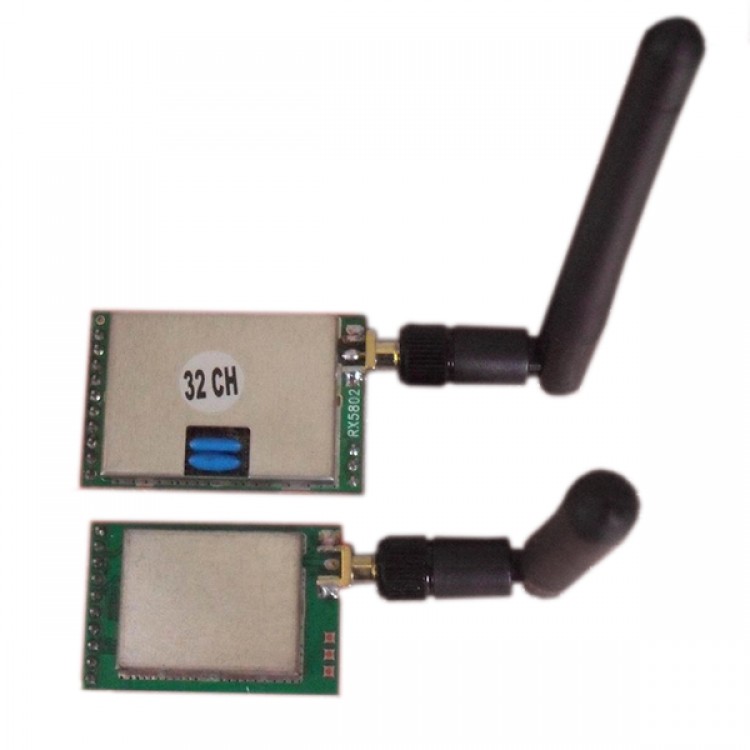

32CH 5.8G 350mW TX5833 Module + Receiver RX5802 Module for Multicopter FPV Photography w/ 3dB Antenna
Description:
- 350mW TX module size: 40.5*26.5* 3.1mm
- TX Weight: 4g, with antenna 15g
- RX size: 40.5*26.5*3.1 mm
- TX Weight: 7g, with antenna 19g
- 5.645～5.945MHz 32 frequency points
- TX module current: 450mA
- RX module current: 180mA
Note: the pins of these two TX RX modules are working fequency setting, default 11111 frequency points 5.860GHz
Four groups of frequency 32 channels to choose from:
A: Ch1:5740MHz Ch2:5760MHz Ch3:5780MHz Ch4:5800MHz
Ch5:5820MHz Ch6:5840MHz Ch7:5860MHz Ch8:5860MHz
B: Ch1:5725MHz Ch2:5745MHz Ch3:5765MHz Ch4:5785MHz
Ch5:5805MHz Ch6:5825MHz Ch7:5845MHz Ch8:5865MHz
C: Ch1:5733MHz Ch2:5752MHz Ch3:5771MHz Ch3:5790MHz
Ch5:5809MHz Ch6:5828MHz Ch7:5847MHz Ch8:5866MHz
D: Ch1:5705MHz Ch2:5685MHz Ch3:5665MHz Ch4:5645MHz
Ch5:5885MHz Ch6:5905MHz Ch7:5925MHz Ch8:5945MHz
Package includes:
- RX module x 1
- TX module x 1
- 3dB antenna x 1
