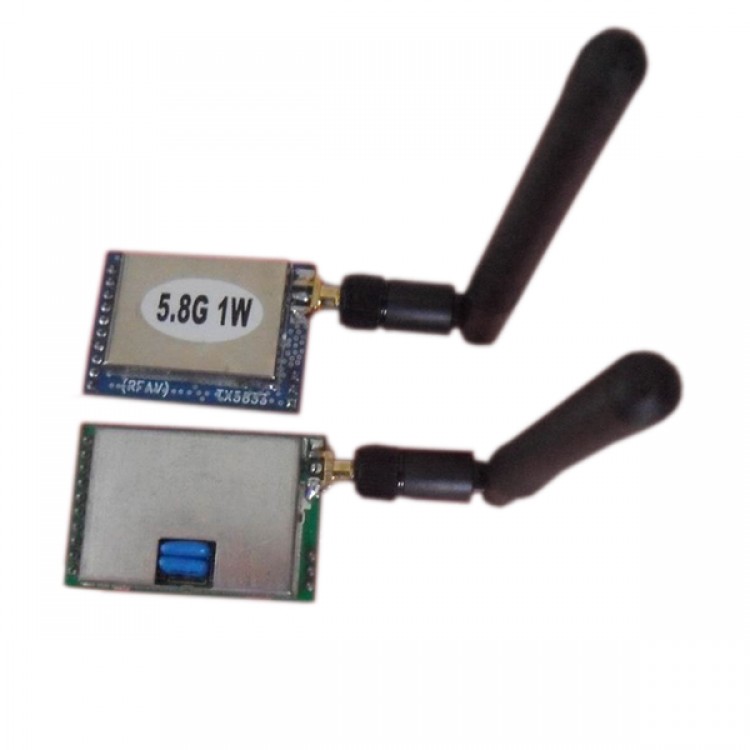

5.8G 1W TX5833 Module + Receiver RX5802 Module for Multicopter FPV Photography w/ 3dB Antenna

5.8G 1W TX5833 Module + Receiver RX5802 Module for Multicopter FPV Photography w/ 3dB Antenna

Description:
- TX5833 is FM audio video TX RX module working in 5705-5945MHz ISM frequency band
- Adopting single chip design, integrating VCO, PLL, wide band FM video demodulation
- This module can receive sound, image signal once connected with power supply, audio cable

Parameters:
- Power: 1W(1000mw)
- Channel: 16CH
- Working voltage: 5V
- Current consumption: 1000mA
- Size: 39.26*29.2*8.25mm , weight: 6.8g
- TX distance: 800-1000m in open field
- Modulation mode: FM wide frequency frequency adjustment

Two groups of frequency 16 channels to choose, esily avode the inteference frequency:
First group:
Ch1 ：5725MHz       Ch2 ：5745MHz
Ch3 ：5725MHz       Ch4 ：5785MHz
Ch5:   5805 MHz      ch6 :  5825MHz
Ch7:   5845 MHz       ch8:  5865MHz

Second group:
Ch9 :  5646MHz        Ch10 :  5665 MHz
Ch11:  5685MHz         Ch12 :  5705 MHz
ch13:  5885MHz          Ch14:  5905 MHz
Ch15: 5925MHz           ch16:  5945 MHz

RX5802 module :
- This module integrates audio video simultenous receiving, with RSSI function. Support 32 frequency to choose from

Parameters:
- Model: 32CH  RX5802
- Frequency band: 5.8G（MHz）
- CurrentL about 180mA
- Voltage: 5V (3.3-5.5V)
- Sensitivity: -95DBM
- Modulation mode: FM wide frequency
- Size: 42.39mm*29.46mm*5.6mm
- Weight: 8.7g
- RSSI function: yes

Four groups of frequency 32 channels to choose from:
 A: Ch1:5740MHz  Ch2:5760MHz   Ch3:5780MHz   Ch4:5800MHz
    Ch5:5820MHz  Ch6:5840MHz   Ch7:5860MHz   Ch8:5860MHz
 B: Ch1:5725MHz  Ch2:5745MHz   Ch3:5765MHz   Ch4:5785MHz
    Ch5:5805MHz  Ch6:5825MHz   Ch7:5845MHz   Ch8:5865MHz
 C: Ch1:5733MHz  Ch2:5752MHz   Ch3:5771MHz   Ch3:5790MHz
    Ch5:5809MHz  Ch6:5828MHz   Ch7:5847MHz   Ch8:5866MHz
 D: Ch1:5705MHz   Ch2:5685MHz   Ch3:5665MHz  Ch4:5645MHz
    Ch5:5885MHz   Ch6:5905MHz  Ch7:5925MHz   Ch8:5945MHz

Package includes:
- RX module x 1
- TX module x 1
- 3dB antenna x 1
