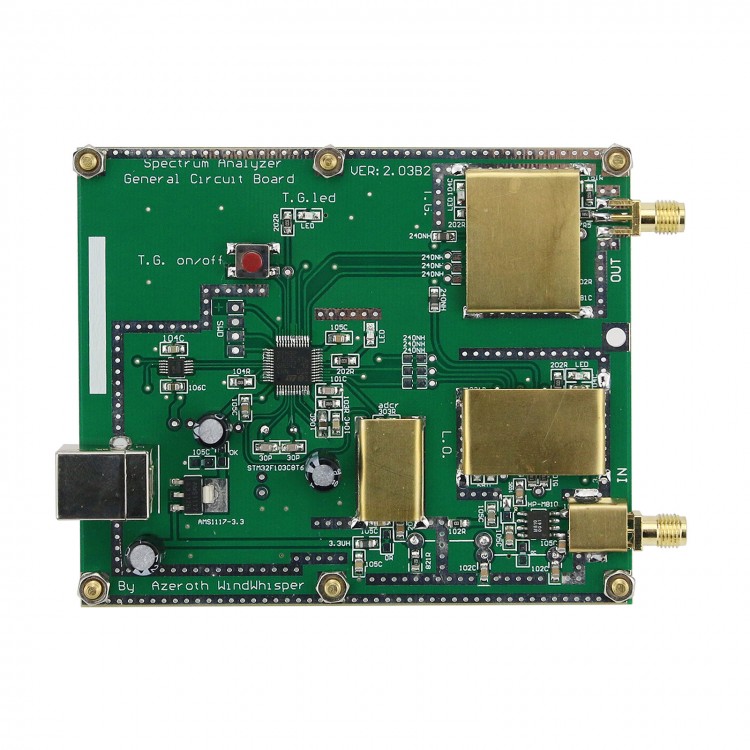

35MHz-3500MHz RF Spectrum Analyzer with Tracking Generator Sweep Generator D6 V2.03B2

Availability: Out Of Stock

  • Price:$48.40
  • Price in reward points: 484 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.43 $46.46 $45.01 $43.08 Contact US
Quantity:

35MHz-3500MHz RF Spectrum Analyzer with Tracking Generator Sweep Generator D6 V2.03B2

Specifications:

- Attribute: RF Frequency Domain Analysis Tool
- Interface: USB
- Powered: Via USB
- Standby Current: ≤90mA
- Sweep Current: ≤350mA
- Sweep Bandwidth: 35MHz-3500MHz
- Tracking Generator Output Bandwidth: 35MHz-1500MHz
- Sweep Step: ≥35~68.75mHz /125Hz, 68.75~137.5mHz /250Hz, 137.5~275mHz /500Hz, 275~550mHz /1kHz, 550~1100mHz /2kHz, 1100-2200mHz /4kHz, 2200-4400mHz / 8kHz
- Sweep Speed: ≥800 points / second
- Sweep Dynamic Logarithmic Ratio: >50dB
- Point Frequency or Sweep Frequency Output Power: About -3dBm
- Input Detection: ≤10dbm
- Background: About -50dBm
- PC Software: For NWT4.11.09
- PC Operating System: For winxp, win732, win764, win1032
- Purpose: To measure frequency and do simple amplitude-frequency characteristic analysis on transmission network
- Applicable: Radio enthusiasts, students

Package Included:

- 1 x Spectrum Analyzer
- 2 x 20CM SMA Jumper Wires
- 1 x USB Cable
