3DR Pixhawk Mini Flight Controller 32 Bit ARM Cortex PX4 for Mini Quadcopter

Tags: 3DR Pixhawk

Availability: Out Of Stock

  • Price:$97.32
  • Price in reward points: 973 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $95.37 $93.43 $90.51 $86.61 Contact US
Quantity:

3DR Pixhawk Mini Flight Controller 32 Bit ARM Cortex PX4 for Mini Quadcopter




The Quick Start Guide


Product Description:

- Pixhawk Mini,the next generation autopilot from 3DR.Building on the success of the original Pixhawk,Pixhawk Mini offers more in a 60% smaller package.
- Pixhawk Mini has been designed in collaboration with HobbyKing and is proudly based on the PX4 open-hardware project.It is compatible with and optimized for the PX4 flight stack.
- One-third the size of the original Pixhawk
- Improved sensors lead to more stable,more reliable flight and navigation
- The hard-to-use DF13 connectors of the original Pixhawk have been replaced by intuitive Micro JST

Improvements over the original Pixhawk:
- Smaller,a third of the size.
- Rev 3 processor for long term software support.
- Improved sensors,both primary and secondary IMU MPU9250 and ICM20608 for more reliable flight.
- Micro JST rather than the hard-to-use DF13 connectors.
- Integrated piezo speaker and safety switch.

Features:
- Advanced 32 bit ARM Cortex M4 Processor running NuttX RTOS
- 8 PWM/servo outputs
- Abundant connectivity options for additional peripherals (UART,I2C,CAN)
- Redundant power supply inputs and automatic failover
- Integrated safety switch and optional external safety button for easy motor activation
- Multicolor LED indicator
- Integrated multi-tone piezo audio indicator

Weight and Dimensions:
- Pixhawk Mini:38x43x12mm;15.8 grams

Package List:

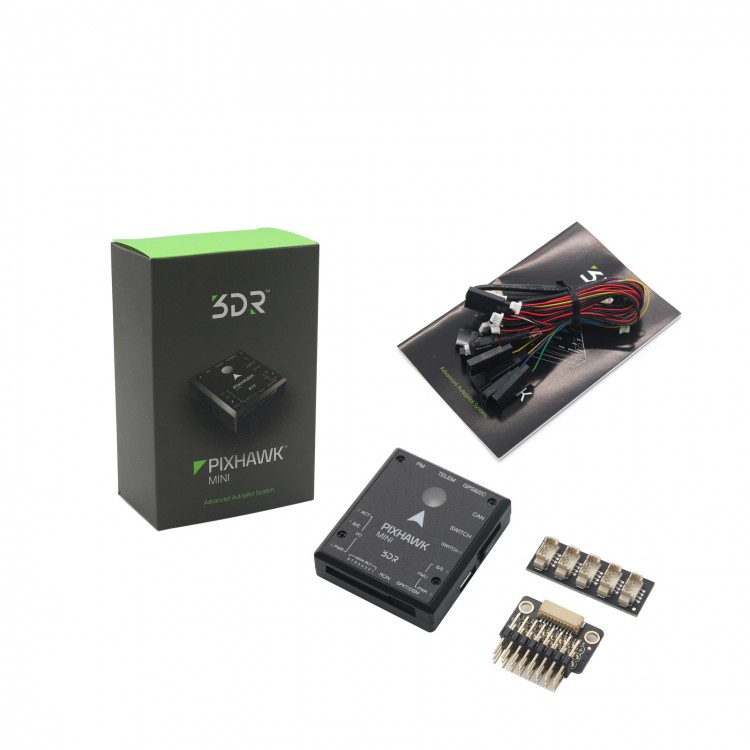

- 1 x Pixhawk Mini Flight Control
