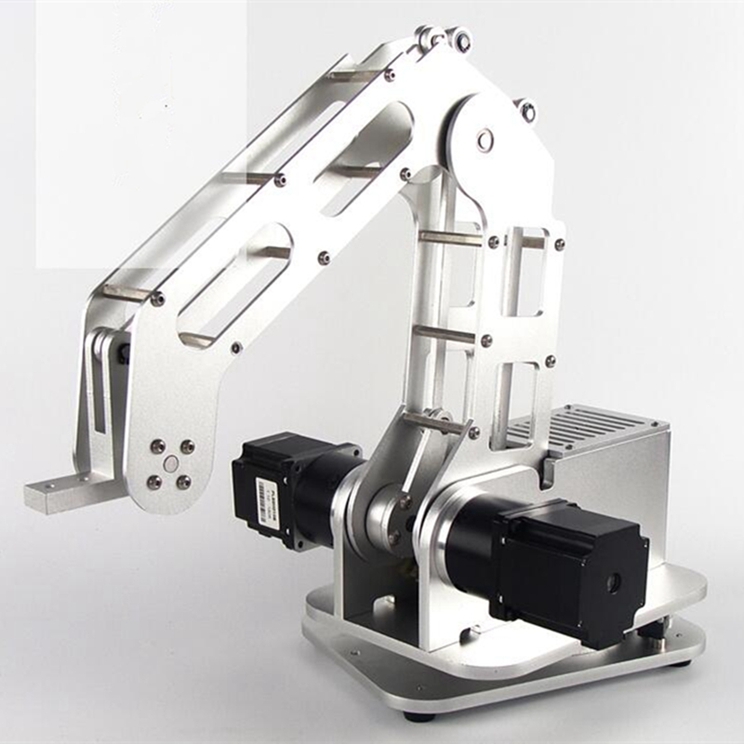

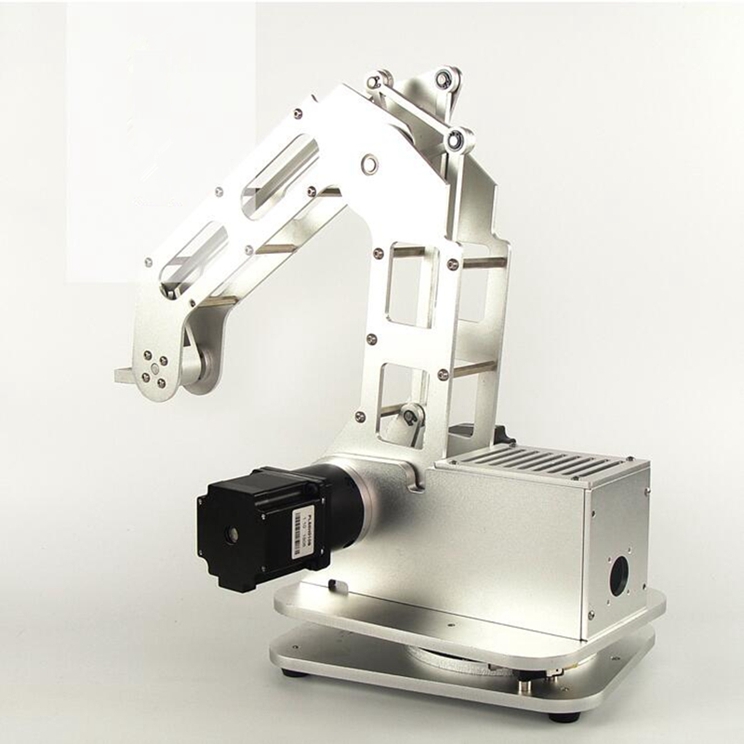

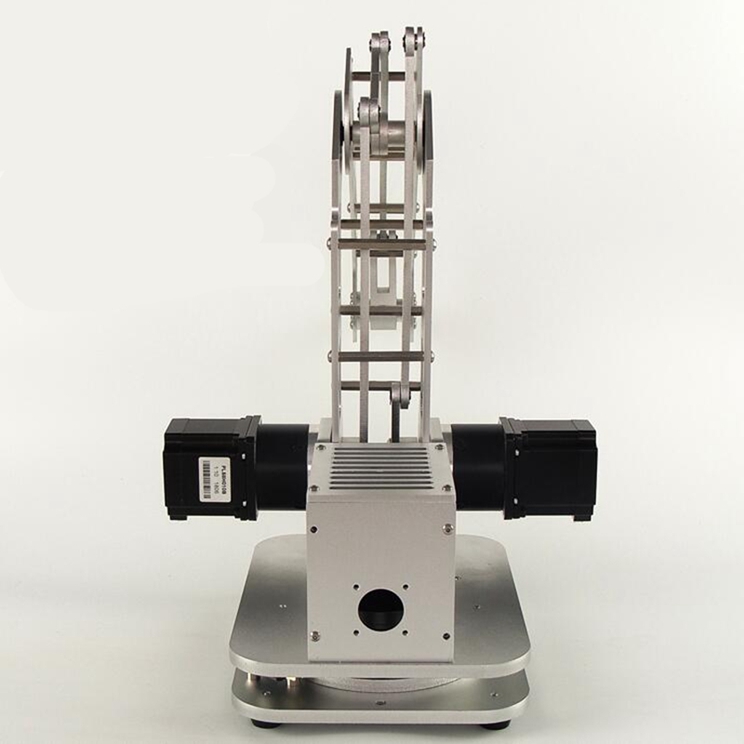

4-Axis Robotic Arm 4-DOF Robot Arm Industrial + 3pcs 57 Gear Motors Max. Load 2.5kg
Features:
- High Precision: Adopted 1:10 gear motors with 0.3mm accuracy
- Premium Quality: it is made of 6061 aluminum alloy with anodized surface and high quality bearings
- The strengthened version with max. load up to 2.5kg
- When it is equipped with clips or suction cup accessories, it can carry small objects through custom actions
Specifications:
- Axis QTY: 4
- Max. Load: 2.5kg

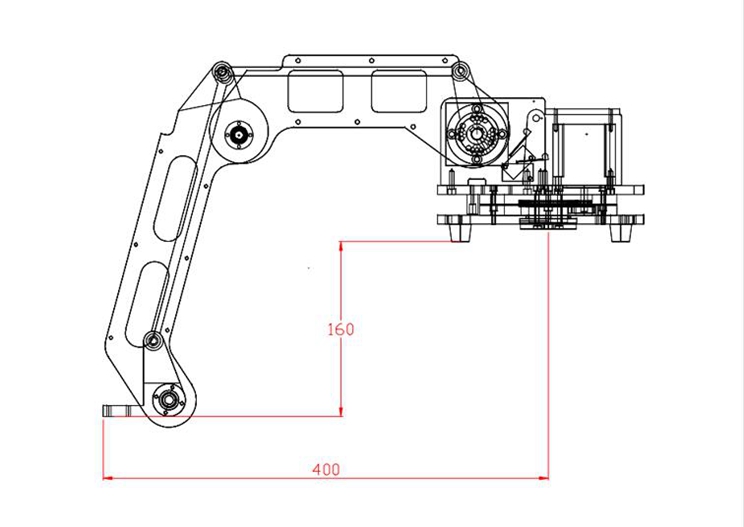

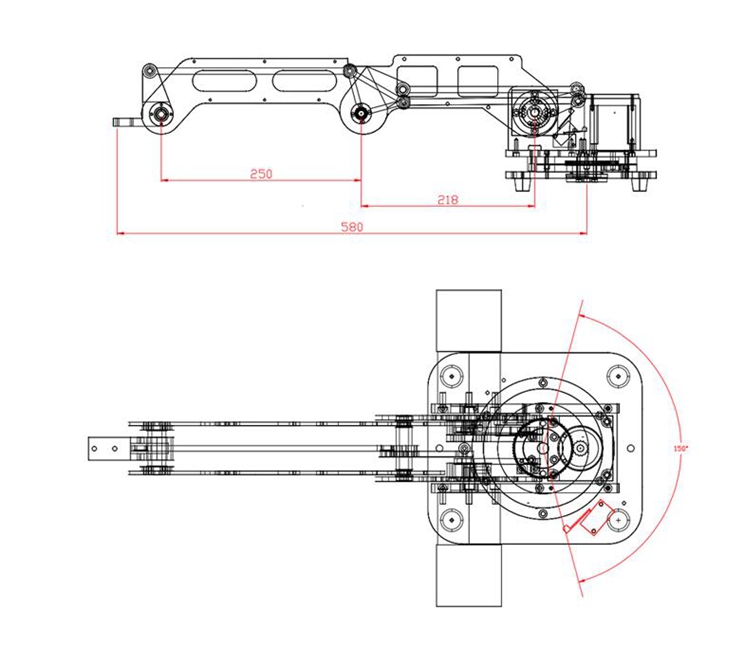

- Max. Stretching Distance: 580mm
- Repeat Positioning Accuracy: 0.3mm
- Communication Interface: WIFI
- Power Supply Voltage: 100-240V, 50/60Hz
- Power Supply Input: 24V/ 20A DC
- Power: 500W MAX.
- Operating Temperature: -10℃ to 60℃
- Material: Aluminum Alloy
- Base Size: 220 x 168mm
Axis Motion Parameters:
- Axis Motion Parameter: 0° to 85°; Max. Speed: 320°/s (250g load)
- Base: -10° to 95°; Max. Speed: 320°/s (250g load)
- Arm: 90° to -90°; Max. Speed: 480°/s (250g load)
- Rotation Shaft: 90° to -90°; Max. Speed: 480°/s (250g load)
Package Included:
- 1 x Industrial Mechanical Arm
- 3 x Gear Motors
Note: Controllers and drivers are not included.
