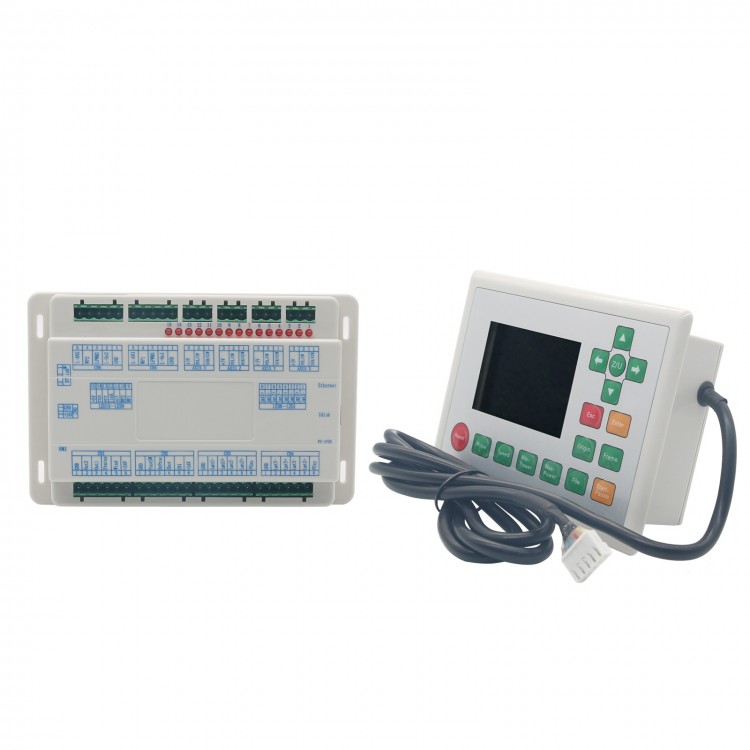

RuiDa RDC6442G CO2 Laser Controller System DSP for Cutter Engraver Machine
Description:
- RDC644XG system is a new generation system for control of laser engraving and cutting, which is developed by RD technology, Ltd.
- High hardware stability, high voltage or static electricity rejection, and friendly 3.5TFT man-machine display.
- This system is provided with stronger software function including perfect 4-axis motion control function, large-capacity file storage, two-channel adjustable digits laser power control interface, USB driver of stronger compatibility,multi-channel general/special IO control, and, this system can communicate with PC by USB2.0 or Ethernet, and the communication mode is automatically checked by the system.
Digital laser control signals:
(1) TTL level output, 50 mA,drive capability(can set enable signal polarity in software)
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V
Motor control signal:common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ
USB: Max. transmission rate 12M bps; The longest distance is 5 meters.
Network:Max. transmission rate is100M; Max. transmission distance is 200M.
Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse
Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
Specifications:
Product Model : RDC6442G
6: the sixth generation controller
4: controller version
4: 4-axis
X: displayer type (1: TTF; 2:3.5 inch colorful screen; 3: 5.7 inch colorful screen; 4:7 inch touch screen)
G: standard
If you need 6442S, please leave us message when placing the order.
Application area: laser cutting, laser engraving, laser welding etc.
Power:+24V, >2A
Temperature: 0~50 °, humidity is not greater than 70%.

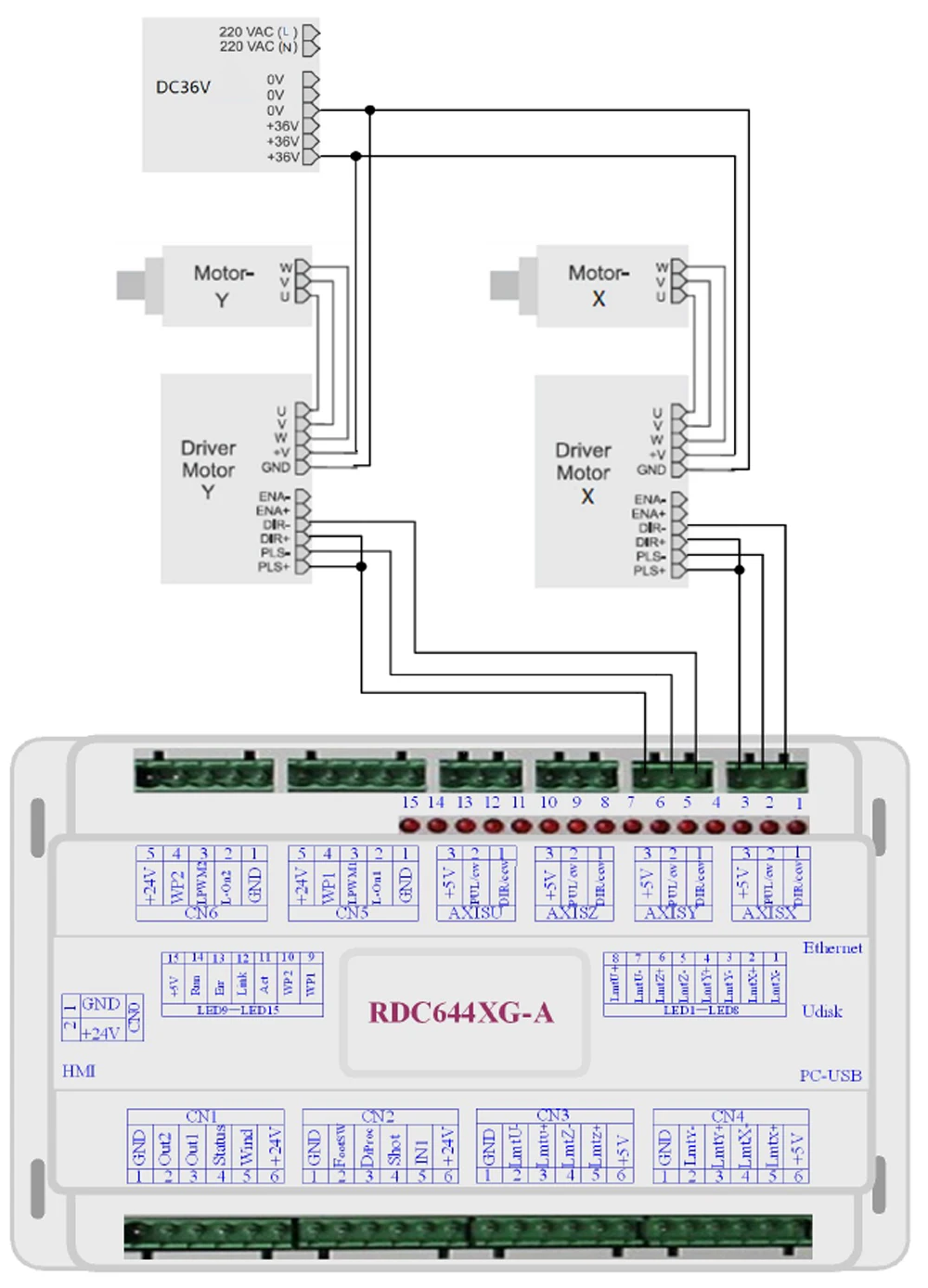

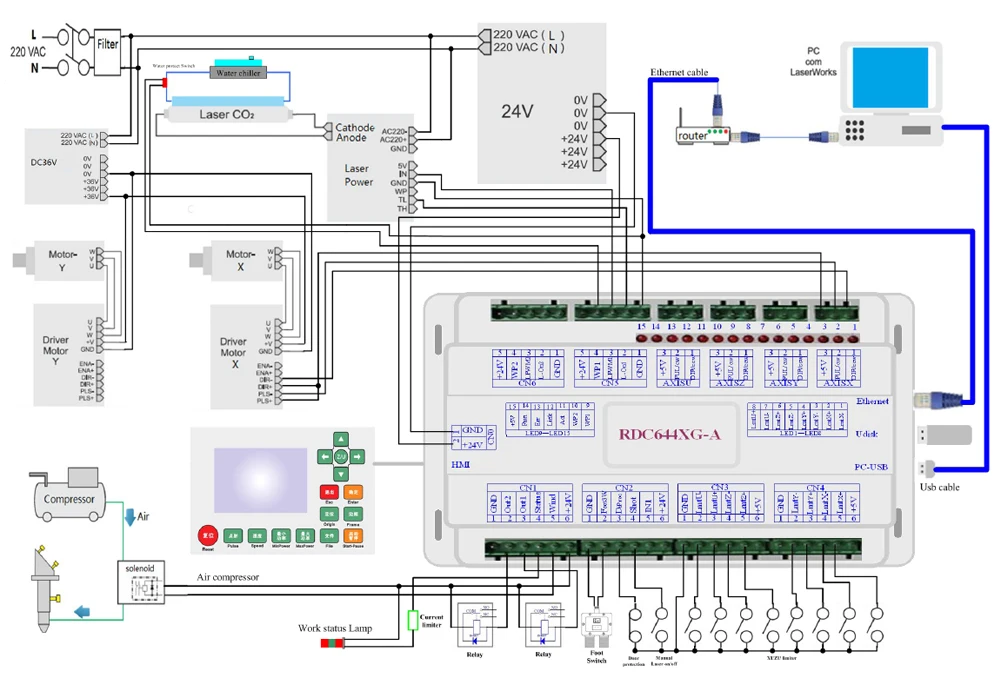

Electrical Connection of Control System: Connection of Glass Tube Laser Power: Connection of Motor Driver:
