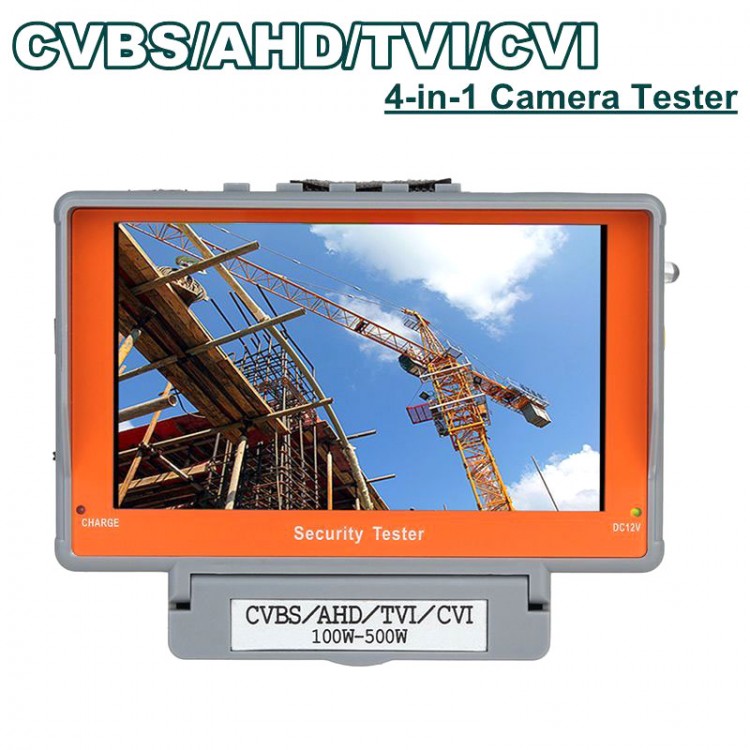

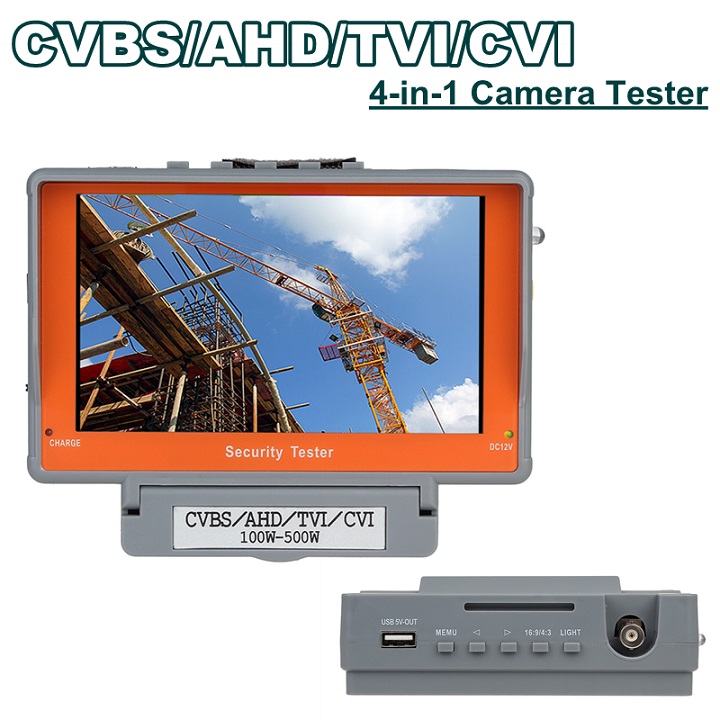

4 in 1 Wrist 5" CVBS/AHD/TVI/CVI CCTV Camera Test Display Monitor Tester Audio Kit

4 in 1 Wrist 5" CVBS/AHD/TVI/CVI CCTV Camera Test Display Monitor Tester Audio Kit

Features:

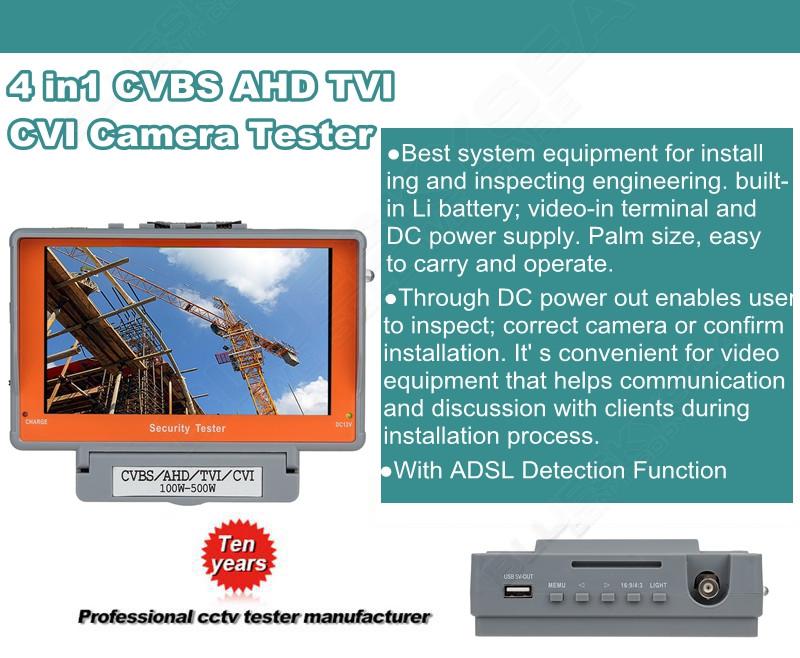

- Best system equipment for installing and inspecting engineering.built-in Li battery;video-in terminal and DC power supply.Palm size,easy to carry and operate.
- Through DC power out enables user to inspect,correct camera or confirm installation.It's convenient for video equipment that helps communication and discussion with clients during installation process.

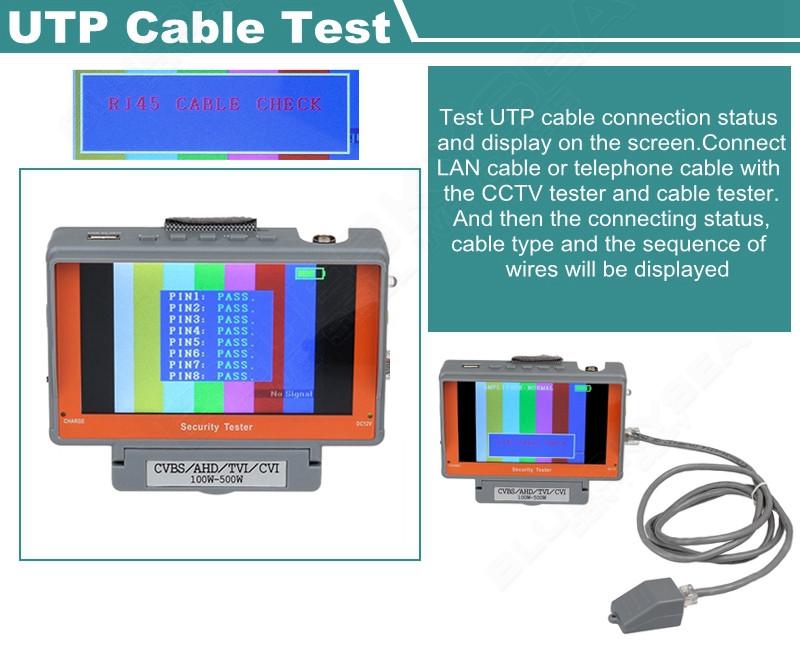

- With ADSL Detection Function

Application:Monitor:camera quality inspecting; image of installation correcting; inspect and repair of monitor system circuit

Functions:
- Portable product Mainframe:Portable product is able to use in any place and any time. It is easy to hold and do not need complicated equipment that hiders the inspecting and repairing.
- Monitor:5" high image resolution monitor enable to show clear image that fits any place to use.

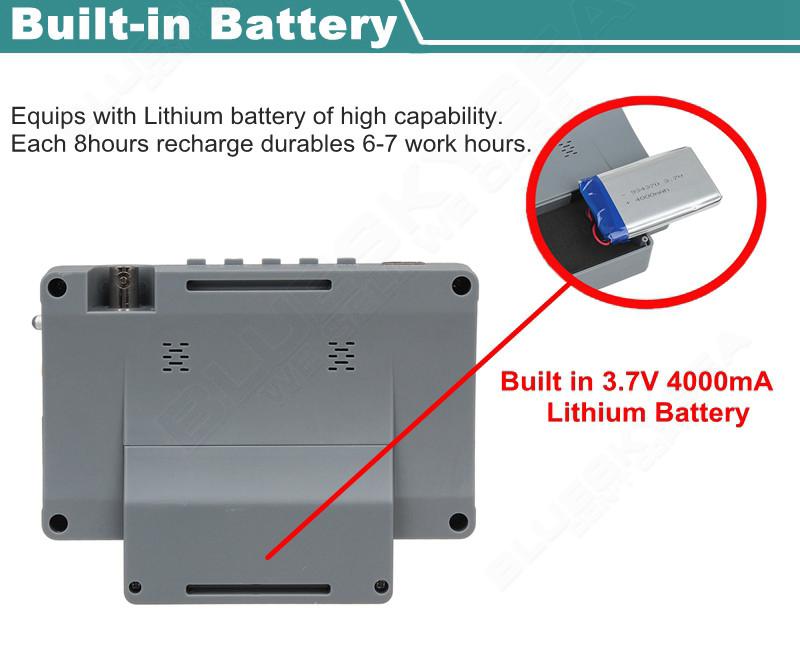

- Long work time:Equips with Lithium battery of high capability. Each 8 hours recharge durables 6-7 work hours. (AHD and CCD power supply without)

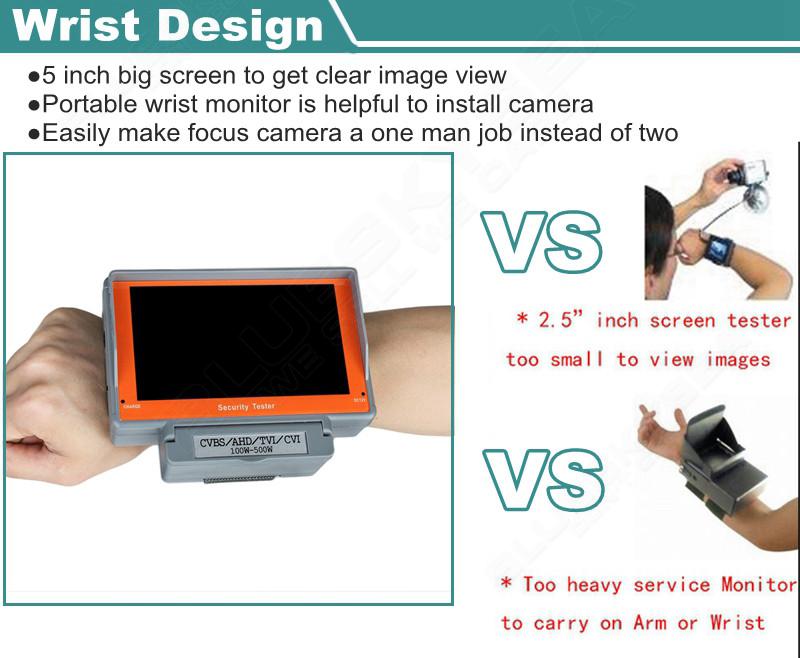

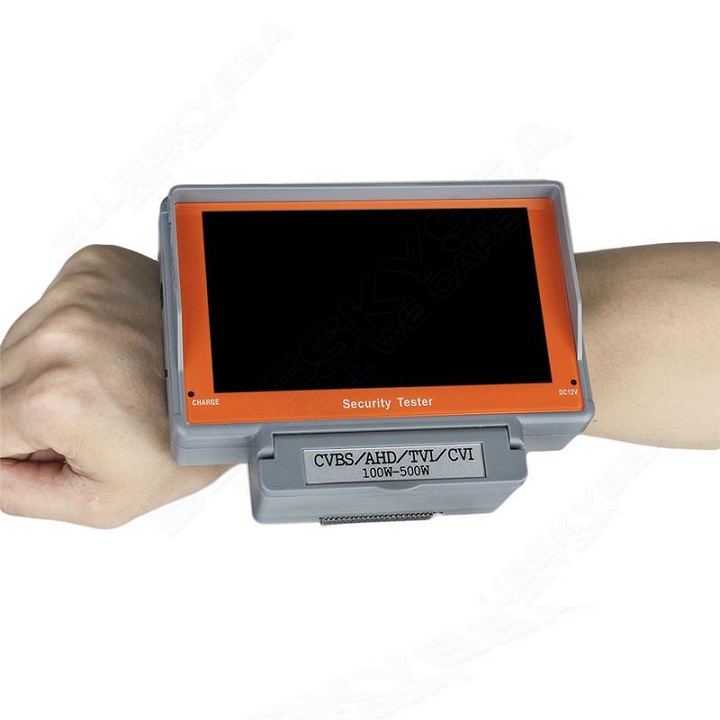

- Humanized design of appearance:Hand-hold design for professionals.Easy operation without taking off gloves speeds your works.Clasp ring at bottom fits to all chains and use in all environments.
- Support DC power for camera

Specification:
- Display:5" TFT Color LCD

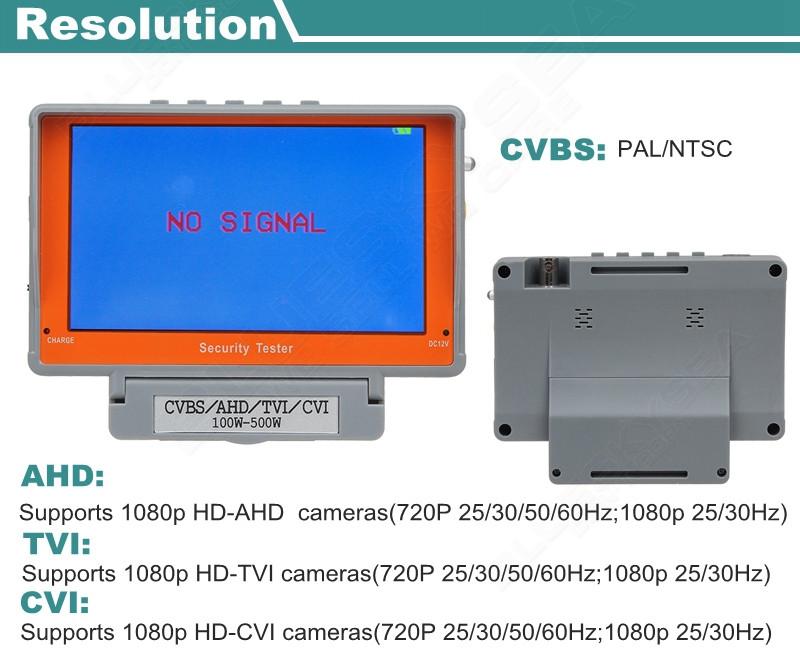

- Image Resolution:(480X272)/(800X420)

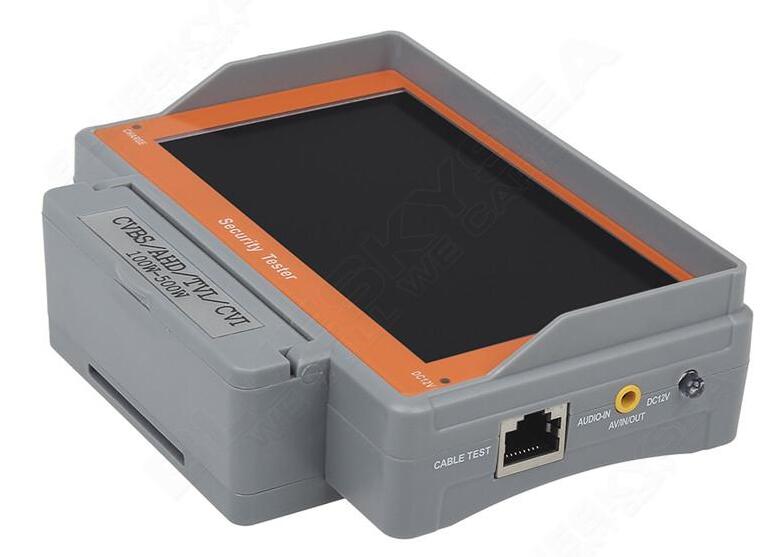

- Video in:Video in x1
- Power out:DC power out x1(AHD camera of power source/Max electric currency 1500mA)

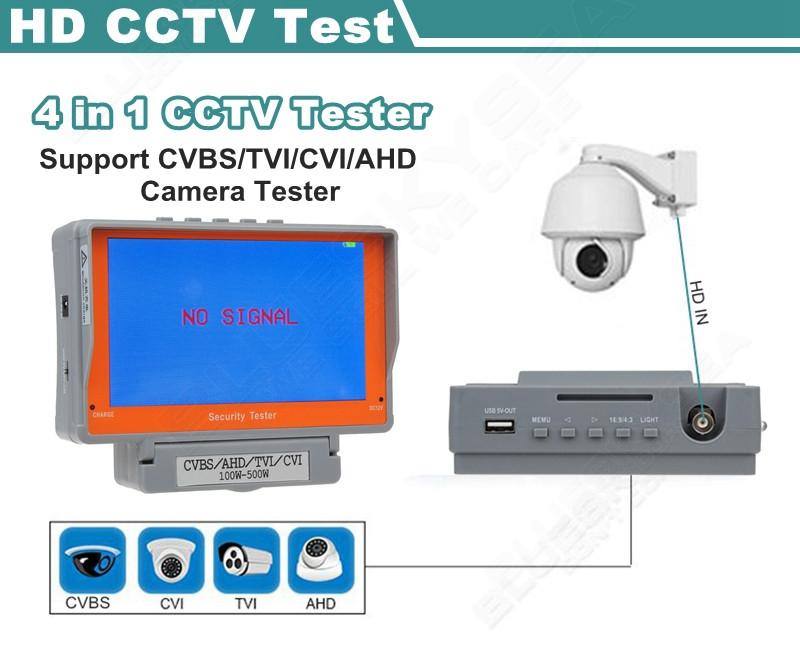

- System Format:PAL/NTSC/AHD
- Status Indicator:2LED
- Charging IND-Red
- 12V OUT-BLUE

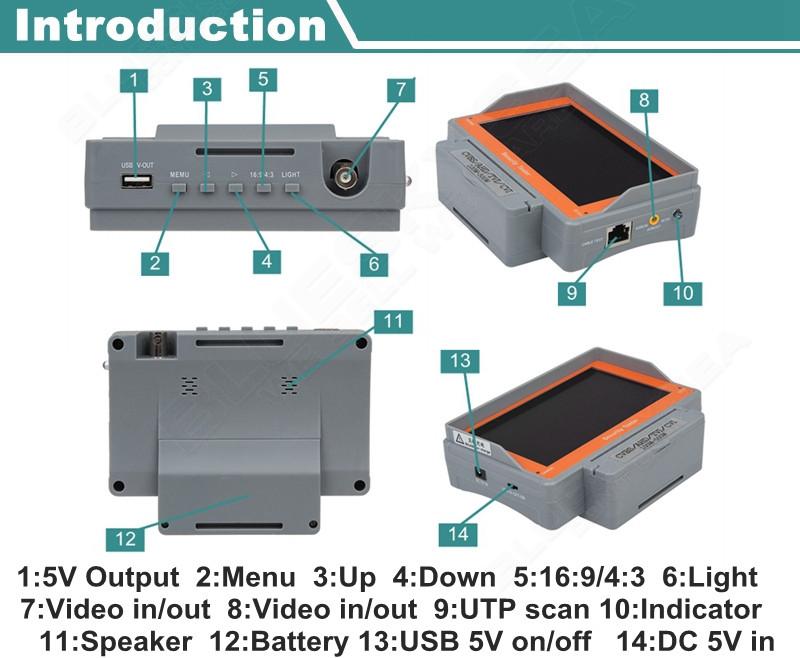

- Interface:OSD POWER

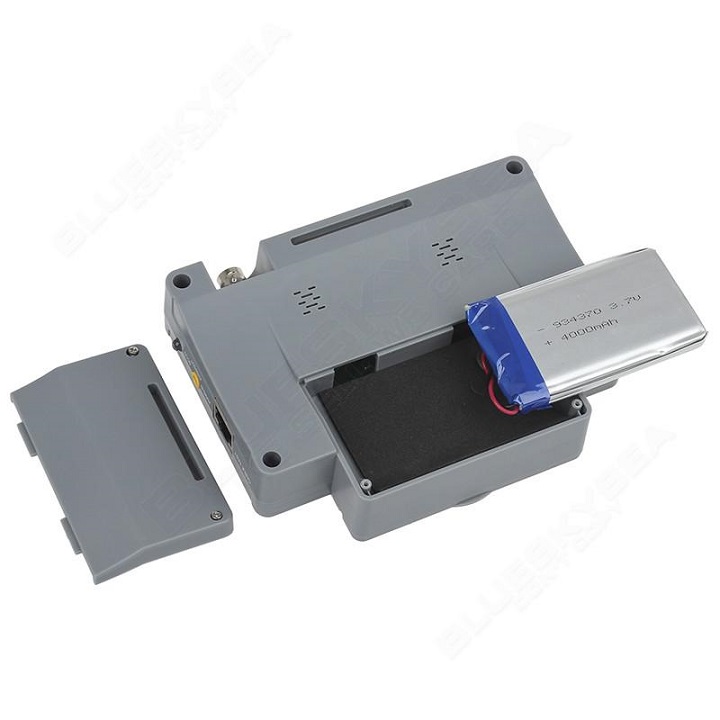

- Power source:Built-in rechargeable Lithium battery:3.7V 4000mA
- Power source:External power: DC 5V 2.0A Adapter
- Dimension:135x100x45mm (LxWxH)
- Weight:280g

Package Content:
- 1 x AHD + TVI + CVBS image display device
- 1 x Transfoemers
- 1 x Power supply (5V-2A)
- 1 x English manual
- 1 x VIDEO CABLE
- 1 x DATE CABLE
