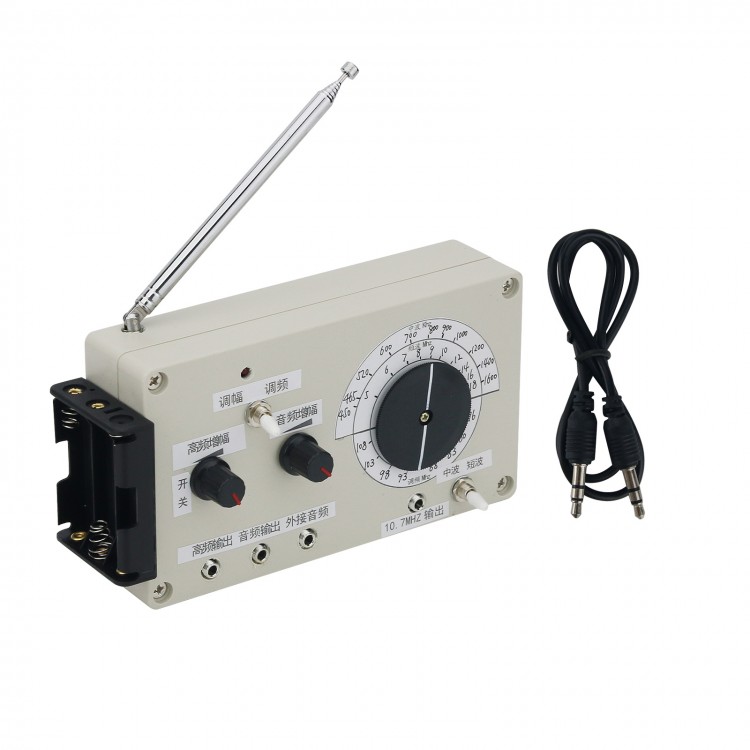

400KHz-1650KHz/5MHz-18MHz AM Radio 76MHz-108MHz FM Radio Three Band Radio 2 in 1 Signal Generator
Description:
- This product is a signal generator that combines amplitude modulation and frequency modulation, with a frequency range of approximately 76 - 108MHz. It has a separate 10.7mhz intermediate frequency signal output, with an amplitude modulation frequency range of 400khz-1650kHz and an intermediate frequency of 465kHz. Short wave frequency range: 5mhz-18mhz (Three band version). The generated audio is a sine wave of around 800hz-1100hz. You can also connect audio signals externally.
- This type of signal generator can both transmit signals wirelessly and output signals through wiring, with a transmission distance of about 2 meters in the mid band and about 10 meters in the FM band. The distance is only for reference.
- There is a 3.5mm socket for outputting high-frequency and low-frequency signals, which can also be used as a signal injector. It is a sharp tool for repairing, assembling, and debugging radios.
Package Included:
- 1 x Host
