4WD Robot Tank Chassis Kit Black Chassis + Joystick Control + 4pcs 12V 300RPM Motors with Encoder
Parameters of Tank Chassis:
- Size: 37.5 x 24 x 10.5cm (L*W*H)
- N.W.: 1.43kg
- Material: Aluminum Alloy
- Removable Track: Engineering Plastic (4.1cm in Width)
- Control Way: Joystick Control Version (If you need WiFi or Bluetooth Control, please contact us for prices and details)
Parameters of 12V 300RPM Motors with Encoder:
- Model Number: JH25-310
- No-Load Current: about 220mA
- Load Torque: about 0.6kg.cm; Current: 500mA
- Power: 1.6W
- Stall Torque: about 2kg.cm; Current: 2A
- Voltage: 12V
- Speed: 300RPM
- Shaft Diameter: 4mm
- With Hall Encoder: Yes

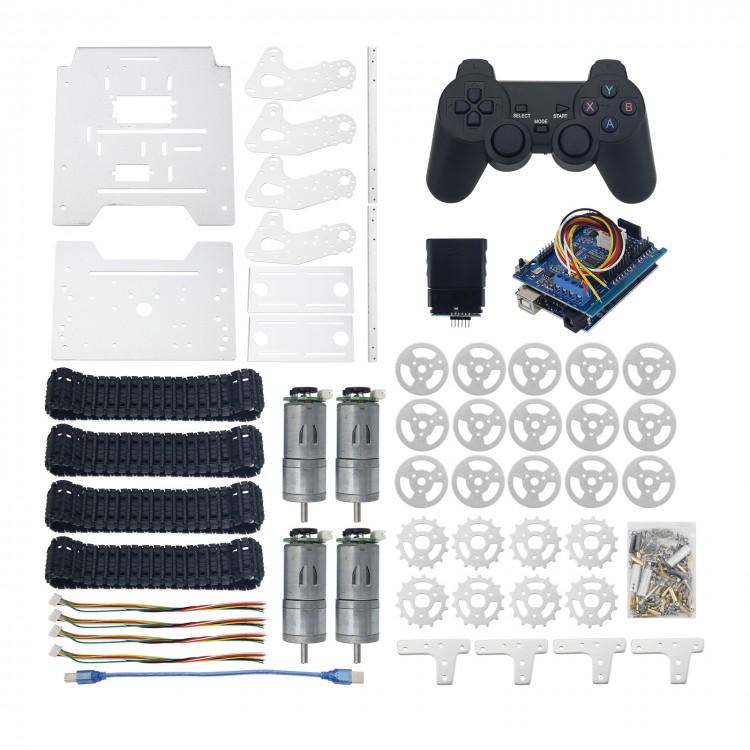

Package Included:
- 1 Set of Panels
- 4pcs Motors
- 4pcs Shock-Absorbing Drive Wheels
- 8pcs Non Shock-Absorbing Load-Bearing Wheels
- 2pcs Shock-Absorbing Tracks (Removable)
- 1 Set of Screws
- 1 Set of Joystick for PS2 with Receiver
- 1 x UNO Development Board
- 1 x Drive Board (Random color: Blue or Green)
Note: Self-assembly is needed, enclosed with assembling instructions. Thank you!

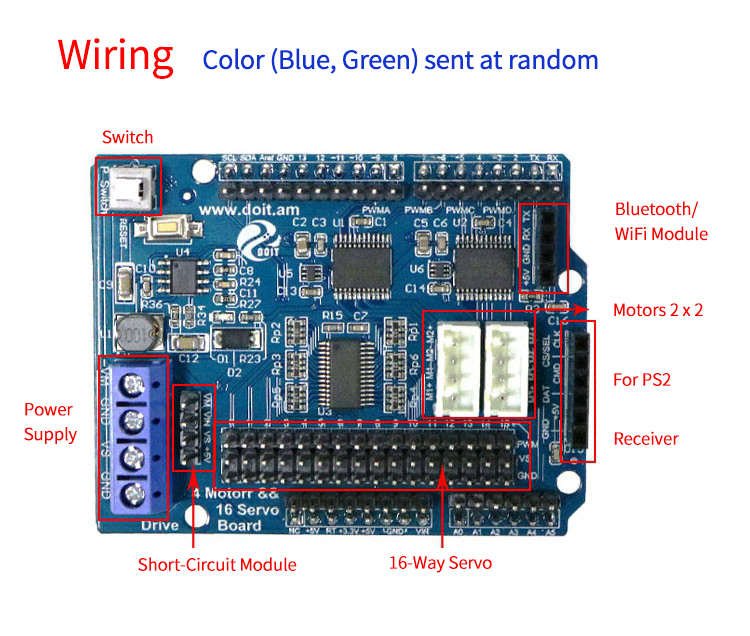

Technical Parameters:
Power Supply:
- Motor Power Supply (VM): 4.5V-36V; Can be powered separately;
- Servo Power Supply (VIN): 5-18V; Can be powered separately.
Means to Provide Single Power Supply:
- Open-circuit VM and VIN, separately control motor with 6-36V;
- Open-circuit VS and VIN, separately control servo with 6-18V;
- Short-circuit VM and VIN with short-circuit VS and 5V at the same time, simultaneously control motor with 6-18V and control 16-Way servo with 5V.
