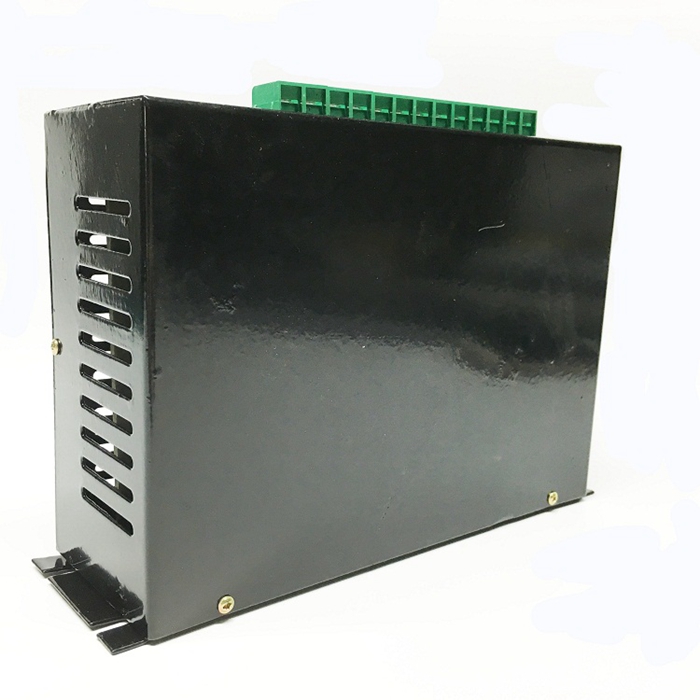

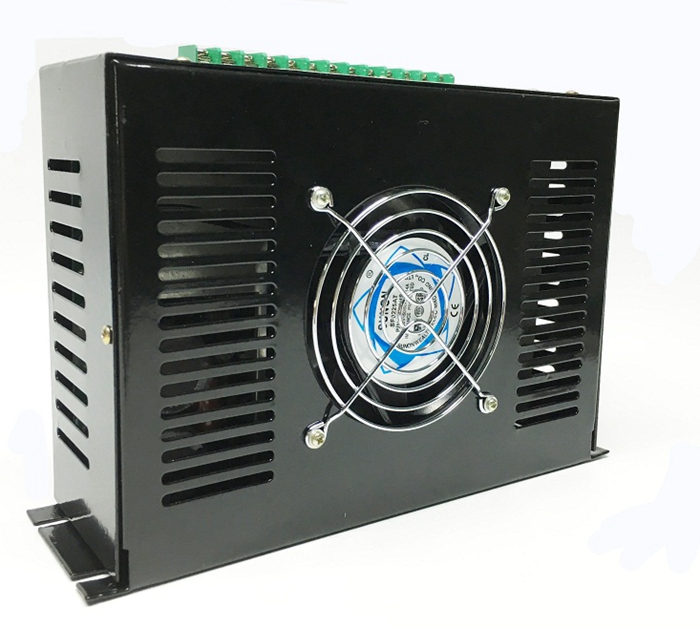

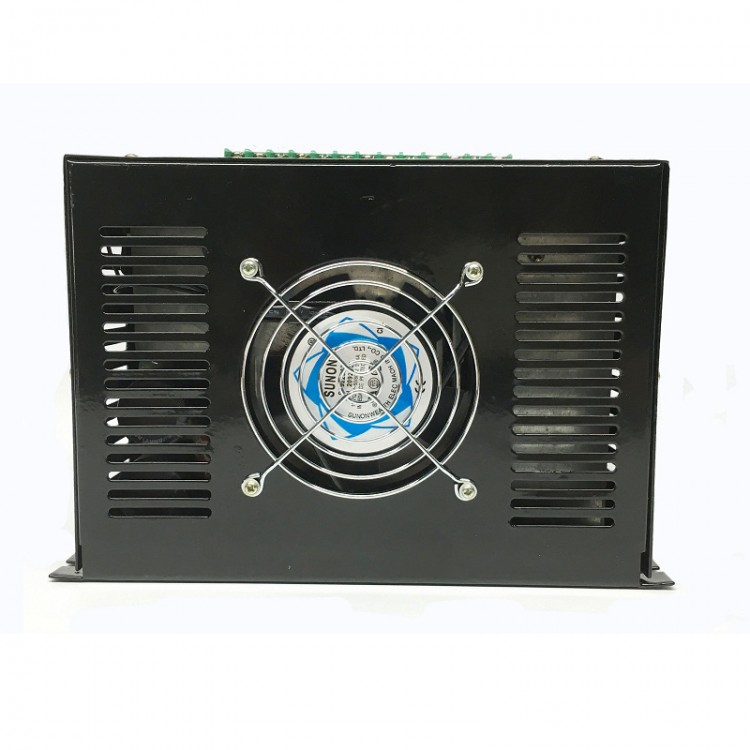

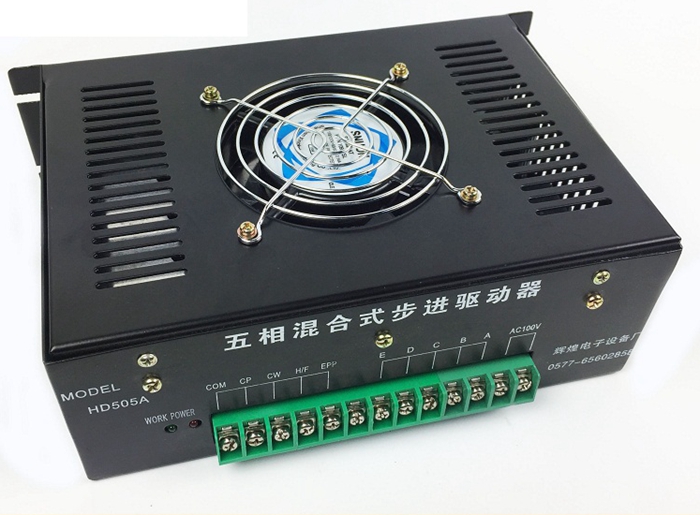

5-Phase Hybrid Stepper Motor Driver For 110 130 Stepper Motor HD505A
Specifications:
- Input: AC 100±20%, 5A
- Output: Phase Current: 5A
Control Performance
- Control Method: Frequency compensation / temperature compensation
- Adjustment Way: Constant frequency PWM current modulation
- Step Control: 10/20 beats per tooth
- No-load Maximum Starting Frequency: >3K
- No-load Maximum Operating Frequency: >30K
Operation Control
- Control Input: step pulse input signal, positive and negative control signal, step control signal, offline control signal
-Signal Output: Power indication, phase origin indication
Structure
- Protection Level: IP20
- Cooling Method: Strong Cooling Wind
- Installation Method: Wall-mounted
- Fits for Motor: 110BYG550, 110BYG550B, 130BYG550, 130BYG550A, 130BYG550B
Package Included:
- 1 x 5-Phase Hybrid Stepper Motor Driver
