503X Audio Amplifier Board with Speaker Display for 12V 24V 220V 5inch Bass Main Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$14.09
  • Price in reward points: 141 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.81 $13.53 $13.10 $12.54 Contact US
Quantity:

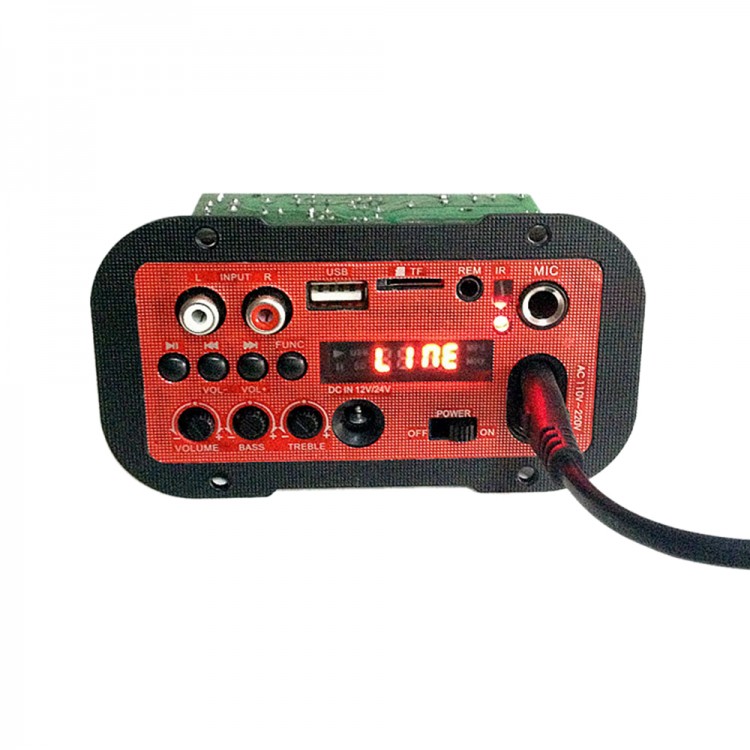

503X Audio Amplifier Board with Speaker Display for 12V 24V 220V 5inch Bass Main Board

Features:

- Breakpoint memory playback and digital display function;
- Cara OK function, can use the microphone to sing;
- Can be adjusted treble, bass and main volume independently
- Can read TF card and U disk, MP3 WAV song;
- DC 12V/ 24V or 110-220V AC voltage is ok
- With AUX input, can access the computer, mobile phone, DVD or CD audio;
- Using the latest digital power amplifier, rated power 30W, can run 5-8 Inch 4Ohm 70 magnet trumpet.

Speaker connection:
The red and black line on the power amplifier board that can connect a 4Ohm 70 magnet speaker or audio (red for +,black for -);

Ppower supply connection:
- DCIN 12V/DC24V interface panel can access 12V DC or DC 24V, current 3A and above;
- AC 100-220V interface can access AC110V-220V household power(can not touch the circuit board, so as to avoid the electric shock).
- Can not be with AC100-220V,DC 12V, DC24V at the same time.

Specification:
- N.W: About 160g
- Mounting hole: Width 100*hight 50mm
- Overall size: W*H*D 118*67*67mm
- Mounting hole distance: 70*57mm

Package included:
- 1 x Amplifier Board
