50M-6GHz Low Noise Amplifier LNA RF Power Amplifier Gain 20DB Powered By USB OpenSourceSDR Lab
Description:
It is a low noise RF amplifier suitable for 50M-6GHz, featuring 20dB gain. With a MicroUSB power supply port, you can plug in a USB data cable to connect it with a computer or other equipment to get it powered. After the power is supplied, the LED light on the product will light up, indicating that it is working now.
Specifications:
- 50M-6GHz RF signal power amplifier, gain 20dB
- With large dynamic range and wide operating frequency range, it is suitable for various types of RF signal amplification with fixed gain
- Wide frequency range, stable gain, low noise figure, and large dynamic range (+20dBm at 1dBP)
- Applicable to all kinds of RF transmission circuits, extending the communication distance
- Shield with anti-reverse protection diode

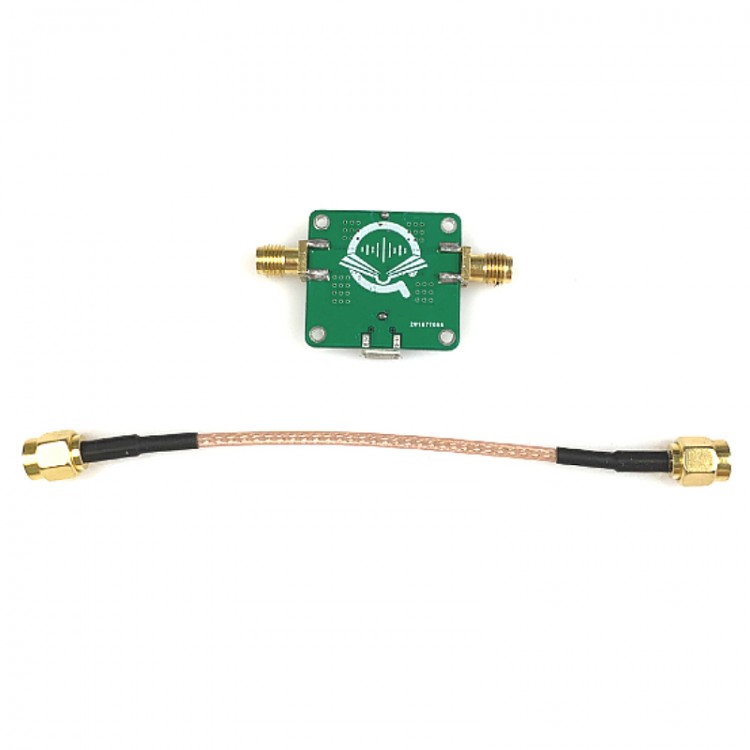

Package Included:
- 1 x RF Power Amp Board
- 1 x SMA Cable
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
Instructions for Use:

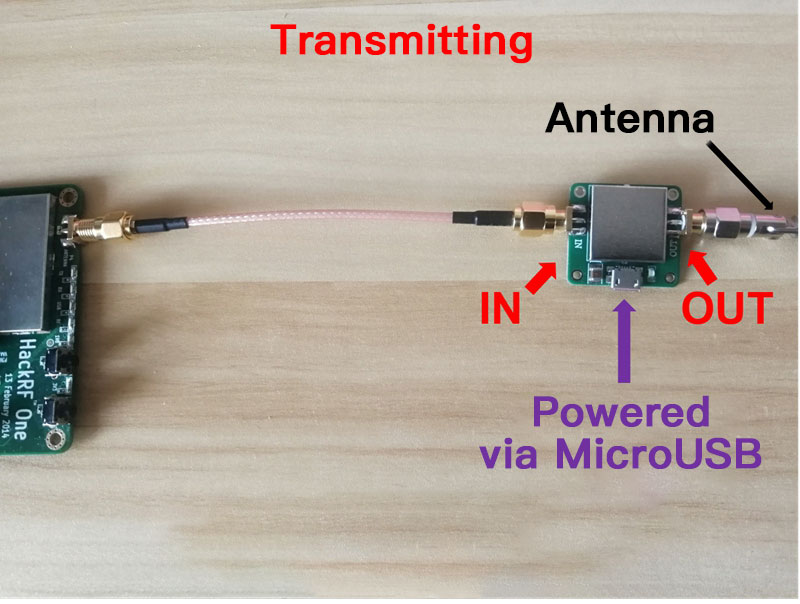

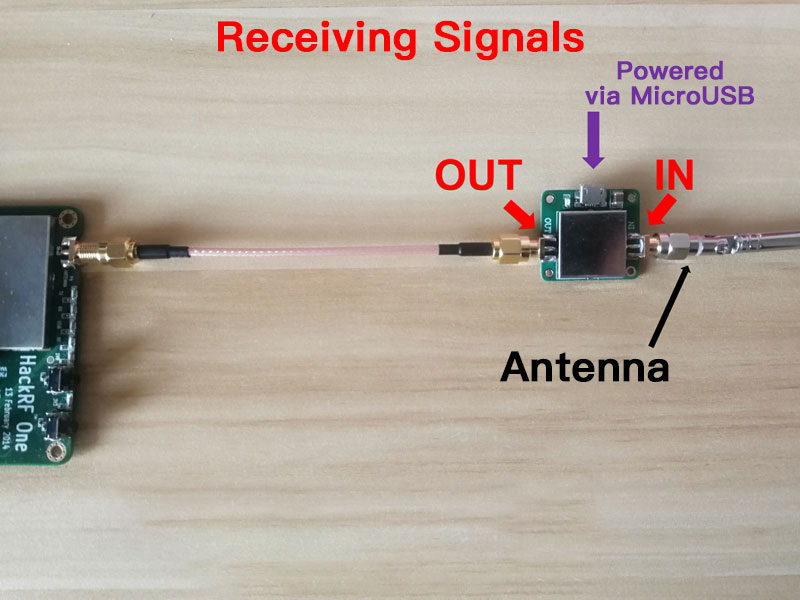

Take HackRF One transmitting and receiving signals as an example.
