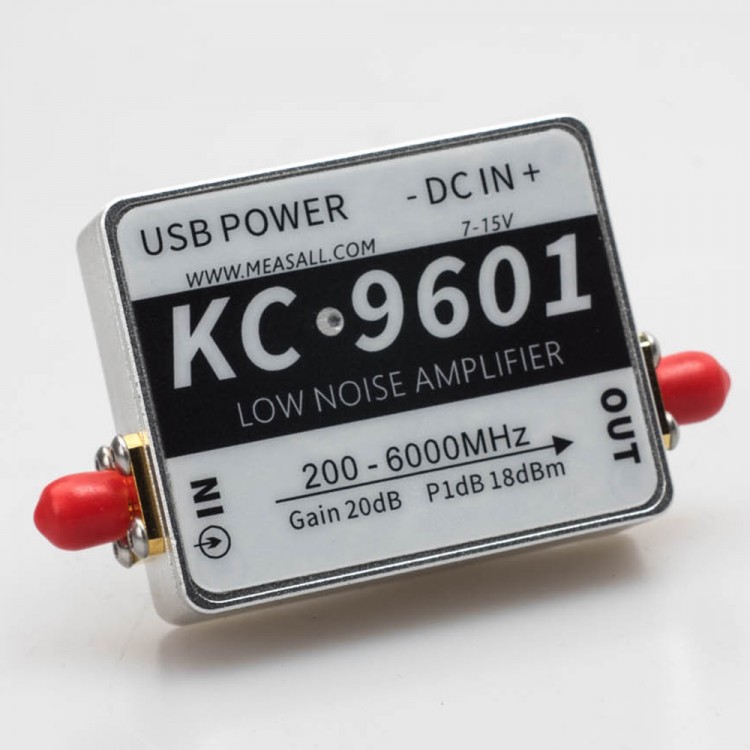

6GHz 20dB NF 1.3dB RF Low Noise Amplifier Module KC9601 5.8G RF Amplifier

Availability: Out Of Stock

  • Price:$55.90
  • Price in reward points: 559 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $54.78 $53.66 $51.99 $49.75 Contact US
Quantity:
Buy it now Add cart

You might like

380MHz-6GHz Low Noise RF Amplifier Module Gain 20dB 5.8G Amplifier 2.4G KC9601

380MHz-6GHz Low Noise RF Amplifier Module Gain 20dB 5.8G Amplifier 2.4G KC9601

$57.12

(0)
LNA-9037 Low Noise Amplifier LNA w/ 20DB High Gain (without Lithium Battery) for SDR MW SW Radio FM

LNA-9037 Low Noise Amplifier LNA w/ 20DB High Gain (without Lithium Battery) for SDR MW SW Radio FM

$13.89

(0)
TQP3M9037-LNA 0.1MHz–6GHz 20dB Low Noise Amplifier with Built-in 3.7V Lithium Battery + Type-C Cable

TQP3M9037-LNA 0.1MHz–6GHz 20dB Low Noise Amplifier with Built-in 3.7V Lithium Battery + Type-C Cable

$22.83

(0)
YZ-GB016020G 10MHz-6GHz Wideband 20dB High Flatness RF Gain Amplifier Type-C Interface and SMA Female Connector

YZ-GB016020G 10MHz-6GHz Wideband 20dB High Flatness RF Gain Amplifier Type-C Interface and SMA Female Connector

$15.79

(0)
SBB5089 5MHz - 6GHz Wideband Low Noise Amplifier 20dB Gain RF Amplifier Module (without Power Supply Module)

SBB5089 5MHz - 6GHz Wideband Low Noise Amplifier 20dB Gain RF Amplifier Module (without Power Supply Module)

$23.72

(0)
50MHz-6GHz 20dB RF LNA Low Noise Amplifier Small Signal Receiving Amplifier RF Accessory with SMA Female Connector

50MHz-6GHz 20dB RF LNA Low Noise Amplifier Small Signal Receiving Amplifier RF Accessory with SMA Female Connector

$17.89

(0)
SBB5089 5MHz - 6GHz Wideband Low Noise Amplifier 20dB Gain RF Amplifier Module (with Type-C 5V Power Supply Module)

SBB5089 5MHz - 6GHz Wideband Low Noise Amplifier 20dB Gain RF Amplifier Module (with Type-C 5V Power Supply Module)

$24.70

(0)
10M-6GHz Low Noise Amplifier Gain 20DB High Flatness LNA RF Signal Driving Receiver Front End

10M-6GHz Low Noise Amplifier Gain 20DB High Flatness LNA RF Signal Driving Receiver Front End

$19.35

(0)

6GHz 20dB NF 1.3dB RF Low Noise Amplifier Module KC9601 5.8G RF Amplifier


Specifications:
- RF low noise amplifier
- Frequency: 200MHz-6000MHz
- Typical gain: 20dB (see the test chart for details)
- Minimum gain: 15dB
- Output Po1dB: 18dBm
- Typical NF: 1.3dB
- RF Interface: Standard SMA Female (hole)
- Supply voltage: 5V USB / 7-15V power outlet
- Power Interface: USB / power outlet
- Temperature range: -40 ~ +60 ℃
- Included accessories: power plug

Package Included:
- 1pc  New 200MHz-6000MHz 20dB NF:1.3dB RF Low Noise Amplifier Module KC9601
