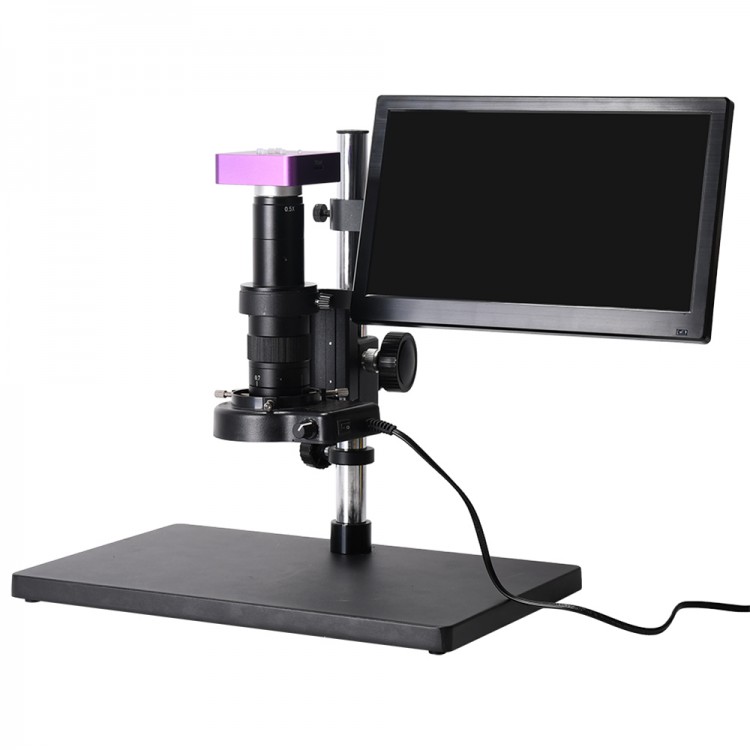

51MP 1080P 60FPS Digital Microscope with HDMI USB Camera 180X Lens 11.6" Screen for PCB Soldering

Availability: In stock, usually dispatched in 1 business day

  • Price:$433.36
  • Price in reward points: 4334 Reward Points: 43
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $424.69 $416.03 $403.02 $385.69 Contact US
Quantity:
51MP 1080P 60FPS Digital Microscope with HDMI USB Camera 180X Lens 11.6" Screen for PCB Soldering

Features:

1. PC supports for multiple system; support for Windows XP/7/8/10 system
2. Comes with a 180X C-mount zoom lens for industrial microscope camera
3. This 51MP industrial microscope camera is suitable for repairing industry
4. Adopting high quality metal housing, it is sturdy and durable, featuring long service life
5. High resolution and dual output make it more convenient to use

Camera Specifications:
- Item Type: Microscope Camera
- Module: 5130
- Sensor: 51MP for CMOS
- Optical Format: 1/2.3 inch
- Pixel Size: 1.335μmx1.335μm
- Interface: HDMI (Type A); USB (Type B). Small memory card
- HDMI Image Resolution: 51MP
- Video Resolution: 2.7K at 30FPS; 1080p at 60FPS
- HDMI Resolution: 1920 x 1080p 60FPS
- HDMI Scale: Support 4:3, 16:9, 16:10 screens
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; and 640 x 510 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port
- 11.6-inch HD IPS Monitor Resolution: 1920x1080P

180X C-Mount Lens:
- Zoom C-Mount Lens
- 0.5X C-mount adapter
- Objective Magnification Power by 0.7X-4.5X
- Working distance: 100mm/3.9"
- Maximum field of view: 18.5 x 10.5mm
- Minimum field of view: 2.8 x 1.6mm

56 LED Ring Light:
- 56 LED Adjustable Compact Microscope Ring Light
- Provides intense and focused shadow-free illumination
- 56 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, auto switching
- Inside diameter of the ring light: 27mm/1.1"
- Overall outside diameter: 45mm/1.8"
- Working Distance: 27mm-45mm/1.1-1.8"

Package Included:
- 1 x Microscope Camera
- 1 x 180X Lens
- 1 x Microscope Light Source
- 1 x Camera Stand
- 1 x 11.6" HD IPS Monitor
- 1 x Power Supply
- 1 x USB Cable
- 1 x HDMI Cable
- 1 x Software CD
- 1 x Remote Control

Note:
1. PC Support: For Windows XP/7/8/10 system.
2. For USB output, software operating white balance, exposure and color adjustment can be adjusted (The camera keys are not available. Remote control cannot operate).
3. For high-definition multimedia interface output, the function can be adjusted when connected to the monitor (Camera keys available. The remote control can be operated wirelessly).
4. When using USB connection, please make sure that there is no memory card in the camera, memory card storage is just used for high-definition multimedia interface output. The USB output will be stored in the PC.
5. When connecting the camera to the computer, just plug in the USB cable (no need to use power).
6. Battery is not included. A 2302 button battery is recommended for the remote control.
