| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $48.40 | $47.41 | $45.93 | $43.96 | Contact US |
XD-3420 30W Permanent Magnet DC Motor High-Speed Micro Motor (24V 7000r/min) with Threaded Shaft
$31.66
XD-3420 30W Permanent Magnet DC Motor High-Speed Micro Motor (12V 3500r/min) with Threaded Shaft
$31.66
200W 24V DC Worm Gear Reduction Motor XD5D200-24A18S 1800RPM DC Motor and NRV40 Gear Reducer
$185.00

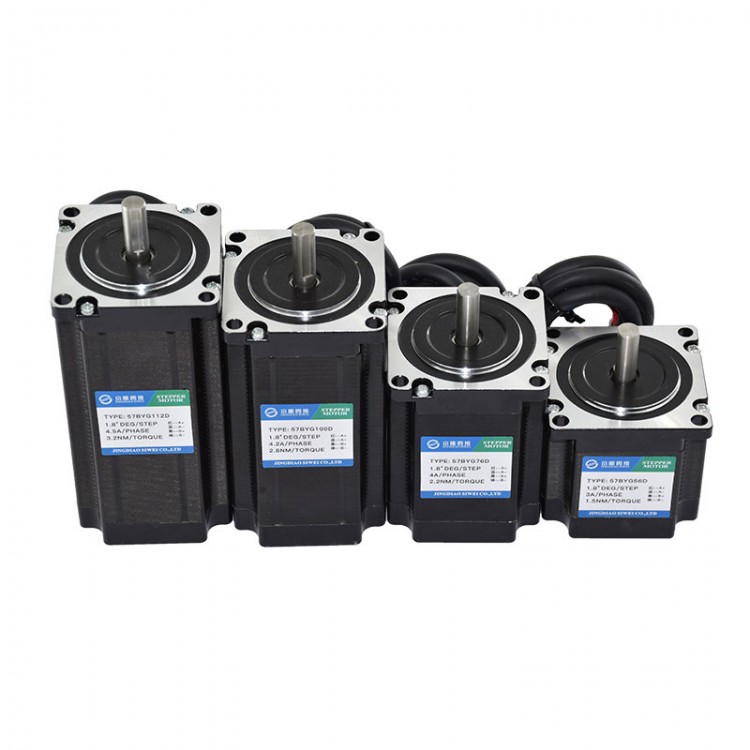

57-100 Sheathed Wire Stepper Motor with Stable Performance Support Current and Voltage Modification
Wiring mode:
AL-: Alarming Signal; connect PLC or controller alarming signal interface
AL+: Alarming Voltage; VDC (+5V and +24V)
EN-: Enable Signal; connected to PLC or controller enable signal terminal
EN+: Enable Voltage; VDC (+5V and +24V)
DR-: Direction Signal; connected to PLC or controller direction signal terminal
DR+: Direction Voltage; VDC (+5V and +24V)
PU-: Pulse Signal; connected to PLC or controller pulse signal terminal
PU+: Pulse Voltage: VDC (+5V and +24V)
VCC: Input power supply (positive pole); VDC (24-60V); recommended common voltage 24V/36V/48V
GND: Input power supply (negative pole); VDC (24-60V); recommended common voltage 24V/36V/48V
Package Included:
- 1 x 57-100 Stepper Motor
