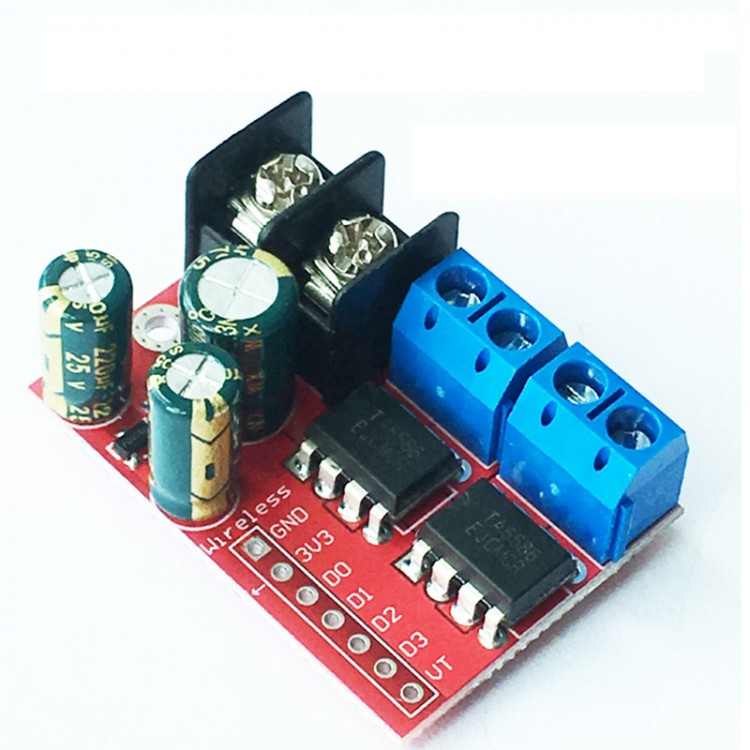

5A 2-Channel DC Motor Driver Module CW CCW PWM Speed Control Remote Control of Relay Light Strip

5A 2-Channel DC Motor Driver Module CW CCW PWM Speed Control Remote Control of Relay Light Strip

Applications:
It not only can be used for remote control motors, but also for DIY remote control relays or remote control light strip, which can control four channels at the same time.

Attention:
When you want to change the direction of motors, please wait for motors to stop first. Otherwise, instantaneous current will burn the module. The bare pins on the back of the circuit board must not be short-circuited, otherwise permanent damage may be caused. Reverse connection of power supply is not allowed. There is a printing prompt on the back of the circuit board. Please follow the instruction, otherwise it will burn out.

Features:

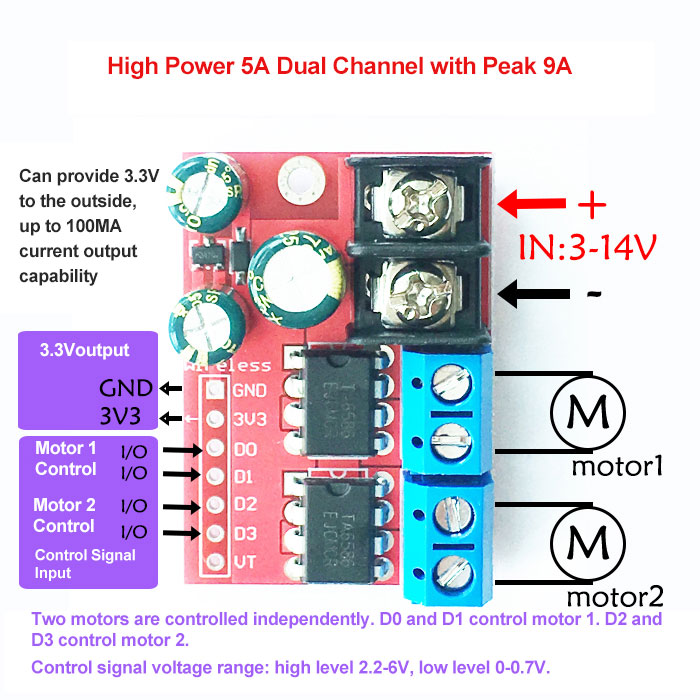

- Can independently control two motors. Each channel can output 5A, peak 9A, standby current is only 10uA
- Wide power supply range 3-14V, signal power supply range 2.2-6V, 3.3V and 5V levels can be met
- The board provides 3.3V 100mA power to the outside to meet your control system power consumption. Can also be used with 433M wireless module to remotely control motors, or remotely control other loads

Specifications:

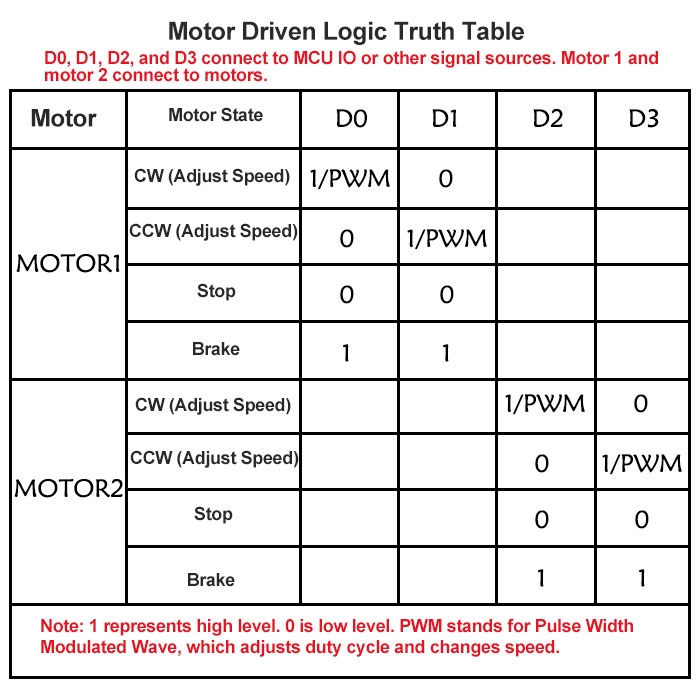

- Dual H-bridge motor drive. Can drive two DC motors or a 4-wire two-phase stepper motor at the same time
- Module supply voltage: 3V-14V
- Signal terminal input voltage is 2.2-6V, support 3.3V and TTL level
- 1-channel working current 5A, peak current up to 9A, low standby current (less than 10uA)
- Diameter of mounting hole: 2 mm
- Weight: 14g

Package Included:
- 1 x DC Motor Driver Module

Note: Remote control is optional. If it is needed, please contact us to pay extra money and for more details.
