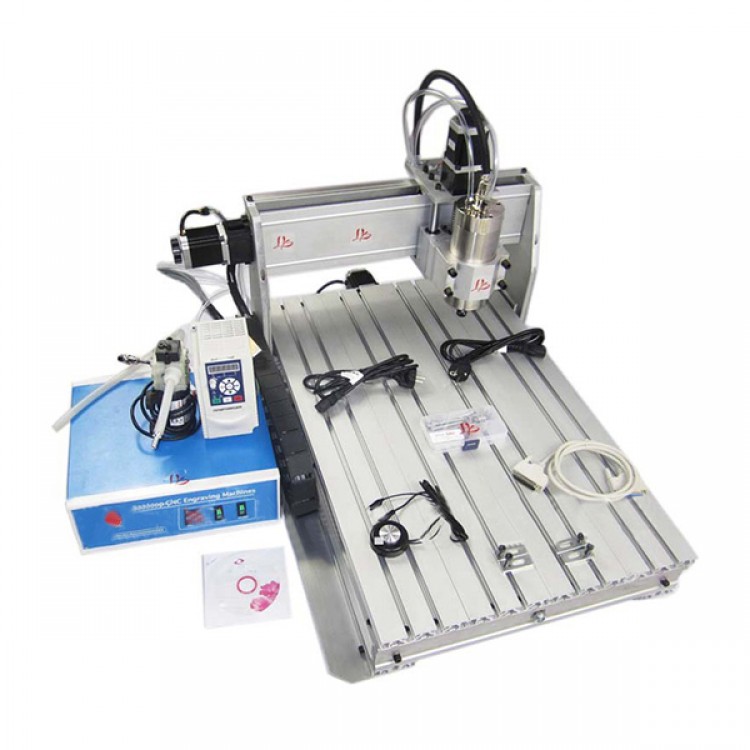

6040Z-S80 Engraving Machine CNC with 1.5KW VFD Water Cooled Spindle for Engraving Hard Material

With Oversea Warehouse,pls contact us for shipping fee

Introduction
- The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
- The 6040Z-S80 is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
- In addition, it can be upgraded to be installed a rotational axis.

Technical Parameters

CNC6040Z-S80 triaxial engraving machine part parameters:

Effective working travel:

580(X)mm*480(Y)mm*65(Z)mm

Shape dimension:

850*640*470mm

Max.thickness of the meterials :

≤90mm(the distance between Z axis and the bottom of the working station)

Max.workpiece dimension:

200mm*240mm<90mm

Work table dimension:

750mm*480mm*20mm

Frame materials:

6061 aluminum alloy + 6063 Industrial aluminum

Driving units :

X axis

NEW 1605 ball screws

Y axis

NEW 1605 ball screws

Z axis

NEW 1605 ball screws

Sliding units :

X axis

Dia.16mm chrome plate shafts

Y axis

Dia.20mm chrome plate shafts

Z axis

Dia.13mm chrome plate shafts

Stepping motor type :

57 two-phase 3A ,super-low noise ,NEW

Spindle motor:

1.5KW VFD spindle ,NEW

Principal axis collet:

ER11/3.175 collet

Spindle speed:

3000 ~ 9000rpm/min (PWM stepless speed regulation)

Empty line speed:

0-5000mm/min

Resetting accuracy:

0.05mm

Engraving accuracy:

better than 0.04mm (has been tested)

Spindle precision:

radial runout≤0.03mm

Control unit:

triaxial one-piece drive + ring variable power + PWM speed

Communication interface:

through parallel connection with computer

Software environment:

Windows 2000 / xp

Carving speed:

0-2500mm/min (different materials differ)

Warranty:

1 year warranty machine part;

6 months warranty Electrical parts, stepping motor and spindle

Interface:

Parallel port (25pin)

Software Compatability:

Mach3/Emc2,(Type3,Wentai, ArtCAM)

Command code:

G code/.nc/.ncc/.tab/.txt

Machine weight :

58KG

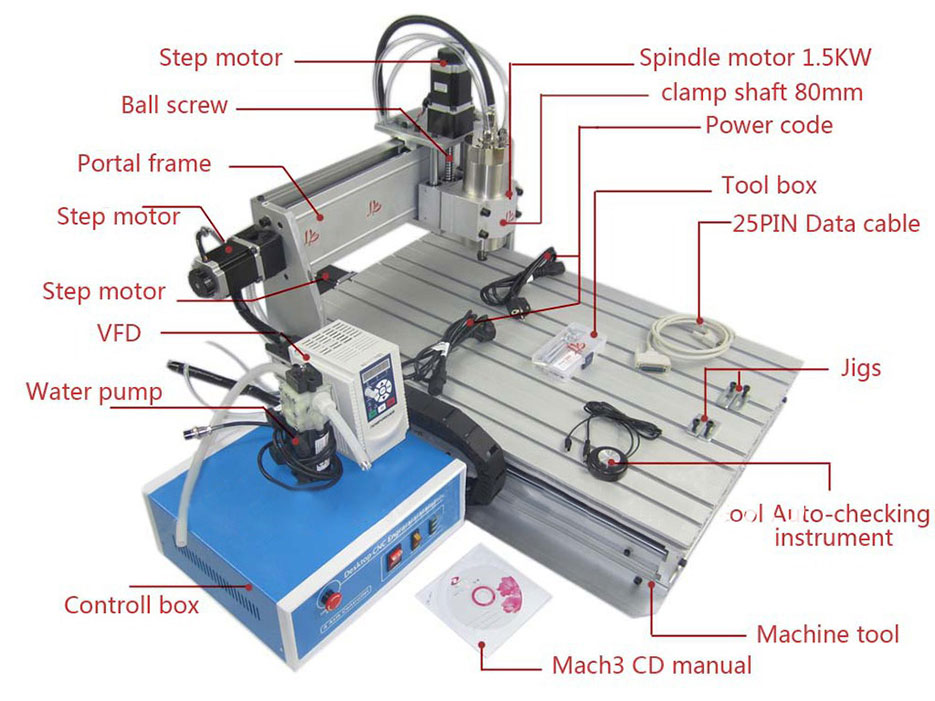

Packing list:

1× Engraving machine

1× Control box

1× VFD

1× Parallel port cable 25pin

2× Power cable

1× Tool box and tools

3× Axis motors

1× 1.5KW inverter

1× tool auto-checking instrument

1× water pump

1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)
