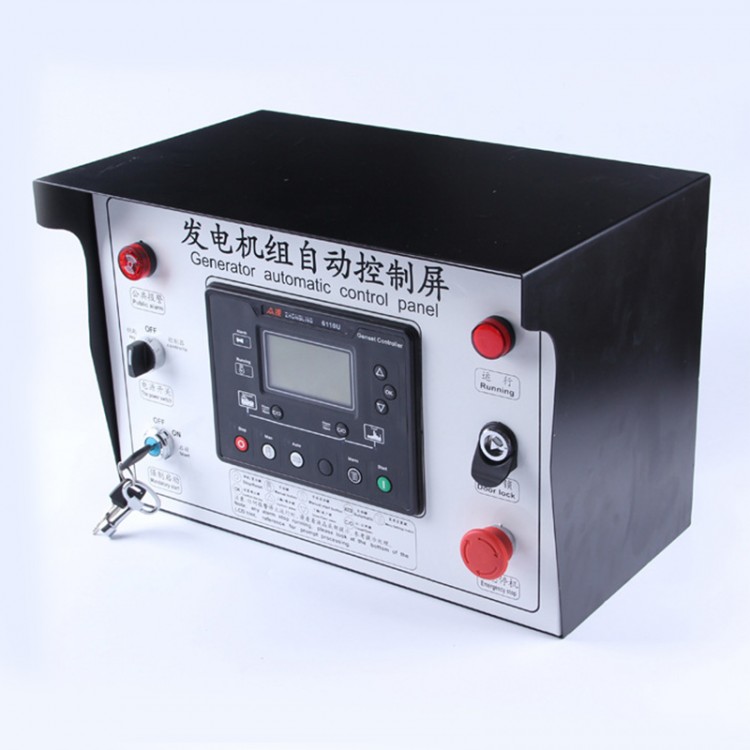

6120U Diesel Generator Set Automatic Control Cabinet Automatic Start Stop Protection Controller

Availability: In stock, usually dispatched in 1 business day

  • Price:$459.96
  • Price in reward points: 4600 Reward Points: 46
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $450.76 $441.56 $427.76 $409.36 Contact US
Quantity:

 6120U Diesel Generator Set Automatic Control Cabinet Automatic Start Stop Protection Controller

This liting is for 6120 Diesel generator set

Description:
- 6100U series power station automation controller integrated digital, intelligent, networked technology, used for a single generator set of automation and monitoring system, realize the generating units of automatic start / stop, measurement data and alarm functions of protection and remote. Controller adopts the large screen liquid crystal display (LCD), a Chinese, English, Spanish and Russian optional interface, simple operation, reliable operation.
- 6100U series power station automation controller using microprocessor technology, the various parameters of the precision measurement, fixed value adjustment, timing, threshold setting and other functions, all the parameters of the controller can be from the controller front panel adjustment, or the use of PC through the adjustment of programming interface, also can use the PC through RS485 interface adjustment and monitoring. The utility system has the advantages of compact structure, simple connecting line and high reliability, and can be widely used in the automatic system of various types of generating units.
Second: performance and features
- 6100U series has four models:
- 6110U: used for single machine automation, through the remote control of the power generation unit automatic start and stop;
- 6120U Optional: in the 6110U based on the increase of the city's electricity consumption monitoring and municipal electricity / power generation automatic switching control function (AMF), in particular, is applicable to a city one machine automatic system.
Its main features are as follows:
- liquid crystal display LCD as a 32x64, with backlight, four kinds of language (Simplified Chinese, English, Spanish and Russian) display with the touch of a button operation;
- The screen saver with hard screen acrylic material, wear resistance and scratch resistance;
- The use of silicone panels and buttons, high and low temperature and strong ability to adapt to the environment;
- The RS485 communication interface, using MODBUS protocol to achieve the "three remote" function;
- It is suitable for three-phase four wire, three-phase three line, second-line single-phase, two-phase three wire (120V/240V) power supply system 50Hz/60Hz;
-  acquisition and display the city electricity / power three-phase voltage, three-phase current, frequency, cumulative boot times the maximum cumulative 999999
- control protection function: diesel generator automatic start / stop, close brake switch (ATS) and perfect fault protection function;
- have power shutdown, idle speed control, speed control, preheating control function, and is the relay output;
- parameter setting function: allows the user to change the setting of the parameters. At the same time, memory in the internal flash memory, isn't lost in the system is out of power, all the parameters of the controller can from the front controller panel adjustment, or use the PC through programming interface to adjust (using SG72 adapter)
- The variety of temperature, pressure, level sensor can be used directly, and can customize the parameters;
- Multiple successful starting conditions (speed sensor, oil pressure, power) can be selected;
- The power supply of a wide range of VDC (8~35), can adapt to different starting battery voltage;
-  all parameters are used to digitally adjust the, abandoned the conventional potentiometer simulation adjustment method, improves the reliability and stability of the whole machine;
- A rubber sealing rings between the shell and the design the control panel, waterproof performance can reach IP55;
- The controller uses a fixed metal card;
-  modular structure design, flame retardant ABS shell, pluggable terminal blocks, embedded installation, compact structure, convenient installation.


The Accessory as following picture for this box assembling.
