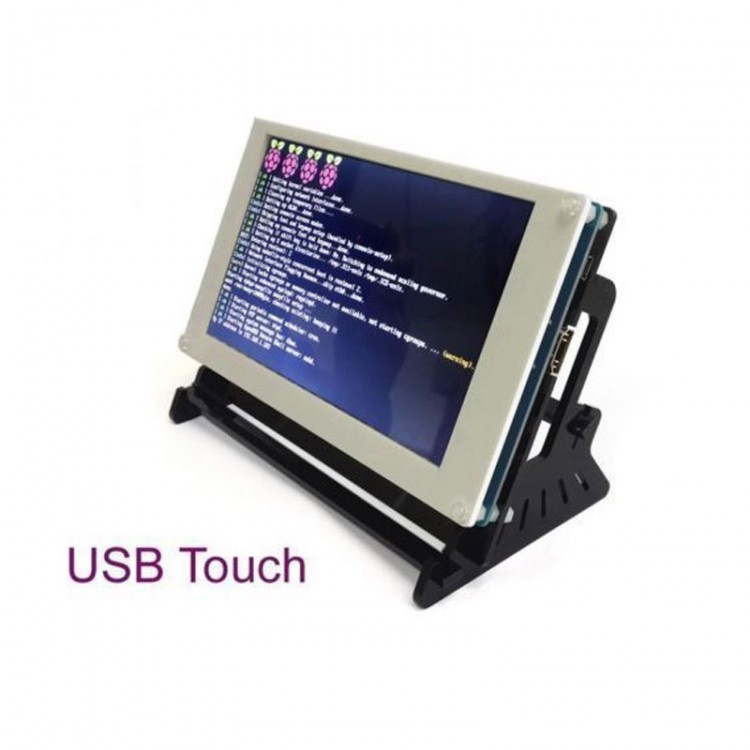

7" USB Capacitive Touch Screen 800x480 LCD HDMI Raspberry Pi 2 B/B+ With Bracket

Availability: In stock, usually dispatched in 1 business day

  • Price:$84.74
  • Price in reward points: 847 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $83.05 $81.35 $78.81 $75.42 Contact US
Quantity:


7" USB Capacitive Touch Screen 800x480 LCD HDMI Raspberry Pi 2 B/B+ With Bracket



  • This is a specific open source product Raspberry Pi designed a 7-inch screen,
    has the following advantages:


    1, a larger screen: 7-inch screen magnification of 480 * 800 points, better visual effect for sharper display
    2, USB power and touch, capacitive touch screen
    3, 2nd generation support Raspberry Pi model B Raspbian system
    4, support Raspberry Pi B / B + Pidora, Raspbian, Arclinux, XBMC system,
    5, HDMI input, faster, smoother transmission
    5, unique DIY matching shell design, so that your screen is no longer naked, with Eleduino Raspberry Pi rainbow shell, multicolor shell, instantly make your Raspberry Pi into one machine

    Parameters:


    7"Inch Lcd Module parameter

    Driver element

    a-si TFT active matrix

    Resolution definition

    800x480

    Display Color

    16.7M

    Interface

    Digitalparallel 8bit RGB

    Visual area (mm)

    154.08WX85.92(H)mm

    Dot pitch (mm)

    0.0642Wx0.1790H

    Visual angle (U/D/L/R)

    50/70/70/70

    Brightness (cd/m2)

    400

    Contrast

    500:1

    Response time (ms)

    White→ Black10BlackWhite15

    Operating temperature

    -20~70

    Pannel power consumption

    0.226W

    Package included :

    7.0-inch LCD * 1
    7.0 screen acrylic shell bracket * 1 (excluding the motherboard housing)
    Customized version of HDMI cable * 1
    USB cable * 1
