70MHz-6GHz B210 RF Development Board Open-Source SDR Development Replacement for USRP Ettus UHD
Description:
Open-source universal SDR development platform supports for GNU Radio, MATLAB, SDR#, and UHD (USRP Hardware Driver).
Its chip, FPGA firmware, software, and performance are exactly the same as those of the original B210. Its frequency offset of 1PPM is more accurate than the 2PPM of the original board, and the bit error rate is lower.
Compared with the original B210, its structural layout is more reasonable and compact; Compared with the B200 mini, it has better RF electromagnetic compatibility. After a long period of testing, its stability is even better.
Features:
- A scaled-down version of the original B200. Its performance indicators are consistent with those of the imported version, and the stability is better
- All use industrial-grade chips and support a temperature range of -40 to 85°C
- Highly integrated: RF range from 70MHz to 6GHz
- Support a maximum real-time bandwidth of 56MHz and a reference sampling rate of 61.44MS/s
- Support high-speed USB 3.0 connection, for Windows, Linux use
- Open source UHD supports multiple frameworks and supports a variety of open source programs
- User-programmable XC6SLX75 FPGA for Spartan 6
- 12-bit AD936x RFIC chip for Analog Devices
Package Included:

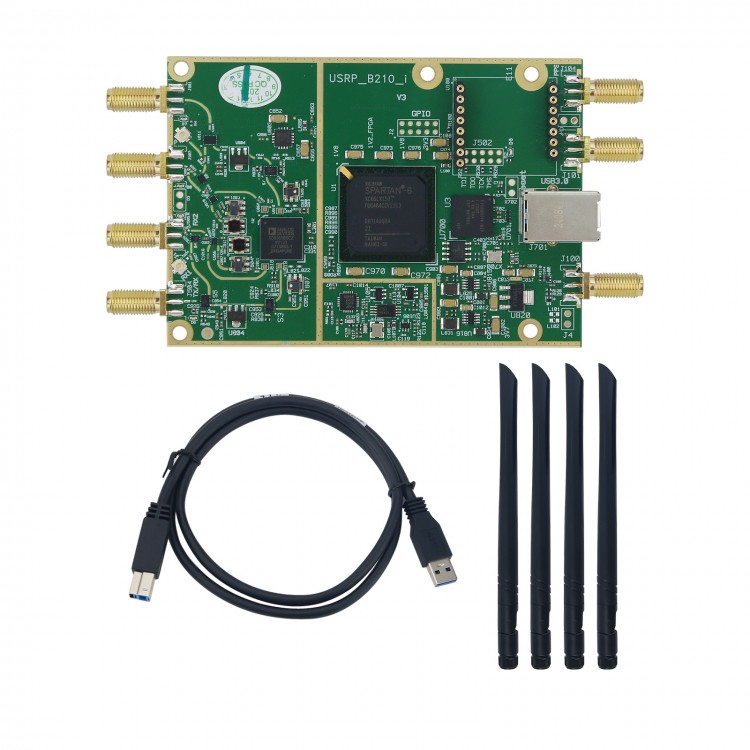

- 1 x Development Board.jpg)
