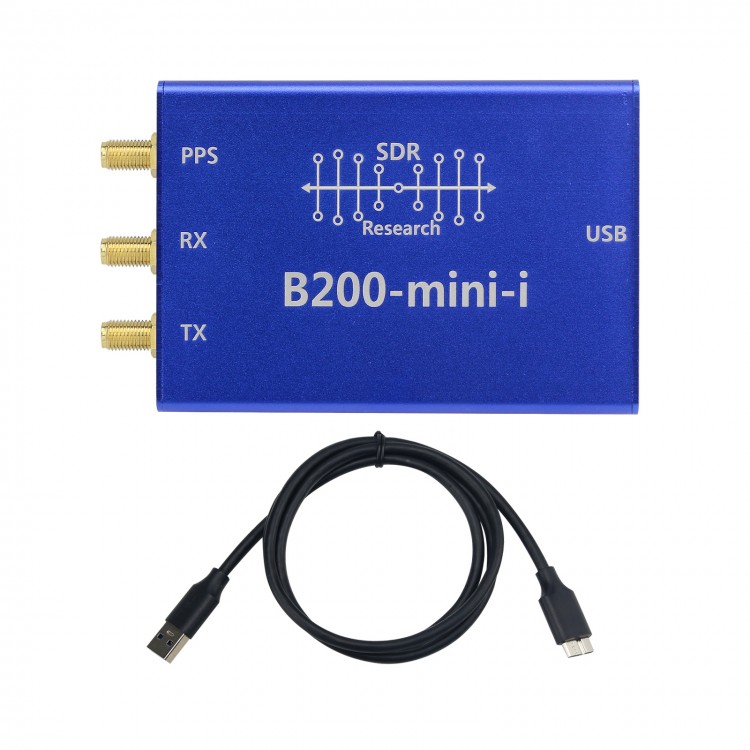

B200-mini-i Scale-Down Version Software Radio SDR RF Development Board USRP Replace for Ettus B200Mini/B210

Availability: In stock, usually dispatched in 1 business day

  • Price:$569.72
  • Price in reward points: 5697 Reward Points: 57
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $558.33 $546.93 $529.84 $507.05 Contact US
Quantity:

B200-mini-i Scale-Down Version Software Radio SDR RF Development Board USRP Replace for Ettus B200Mini/B210

Description:

B200 Scale-Down Version boasts the performance index consistent with the imported version, and its stability is better. Small size 90 x 60mm.

Features:
- Its performance indicators are consistent with the imported version, and its stability is better
- Using industrial-grade chips, supporting temperature range -40 to 85℃
- Highly integrated, radio frequency ranges from 70MHz to 6GHz
- Support maximum real-time bandwidth 56MHz, 61.44MS/s reference sampling rate
- Support high-speed USB 3.0 connection, for Windows and Linux
- Open source UHD supports multiple frameworks and open-source programs
- User-programmable XC6SLX75 FPGA for Spartan 6
- Adopt 12-bit AD9361 RFIC chip

Parameters:
Input/Output:
- DC voltage input: 5V

Conversion Module Parameters:
- ADC sampling rate (maximum): 61.44MS/s
- ADC resolution: 12bits
- ADC SFDR: 78dBc
- DAC sampling rate: 61.44MS/s
- ADC resolution: 12bits
- Maximum rate with host (16b): 61.44MS/s
- Local oscillator accuracy: ±2.0ppm
- Unlocked TCXO accuracy: ±7.5 ppm

Single-Channel RF Performance Parameters:
- Single sideband signal/image rejection: -35/50dBc
- 3.5GHz: 1.0degRMS
- 6GHz: 1.5degRMS
- Output power: >10dBm
- Input third-order intercept point: -20dBm
- Noise figure: <8dB

Physical Attributes:
- Size: 9 x 6 x 1.5cm
- Product weight: 150g

Package Included:

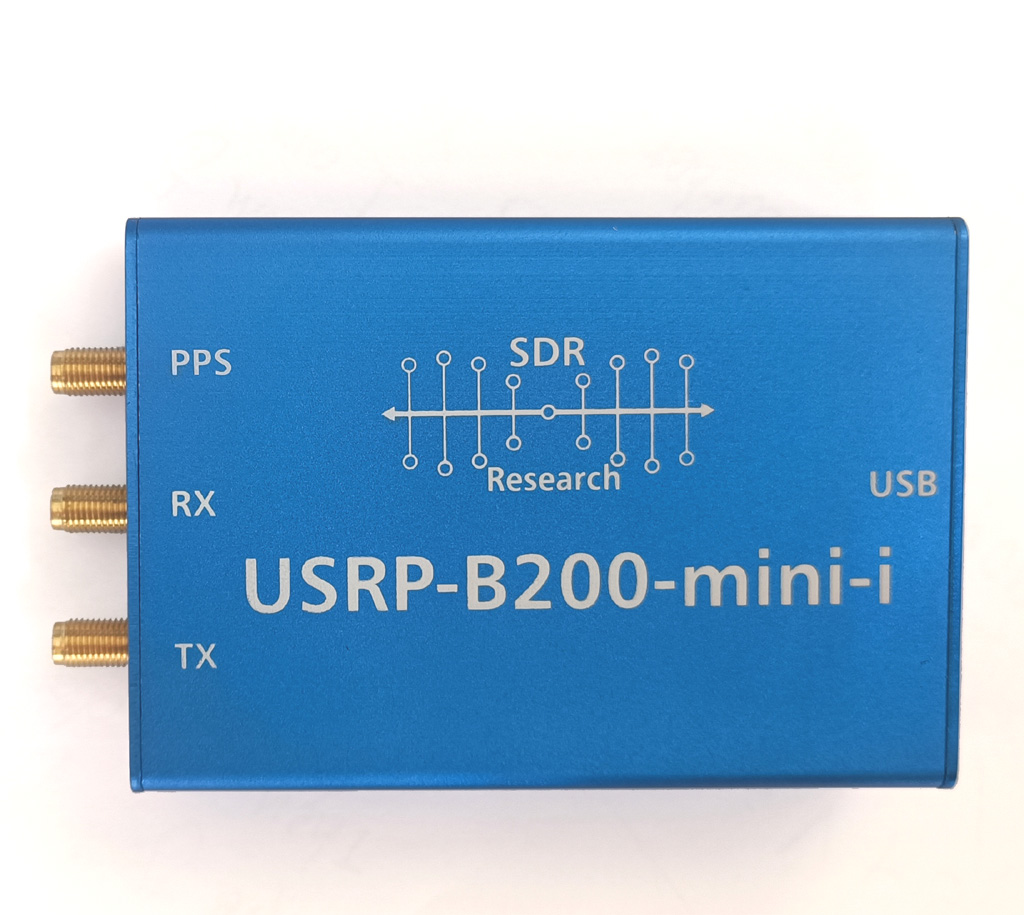

- 1 x URSP-B200-mini-i

Note:
- Other boards pictured are not included, for demonstration purposes only. Thank you for your understanding!

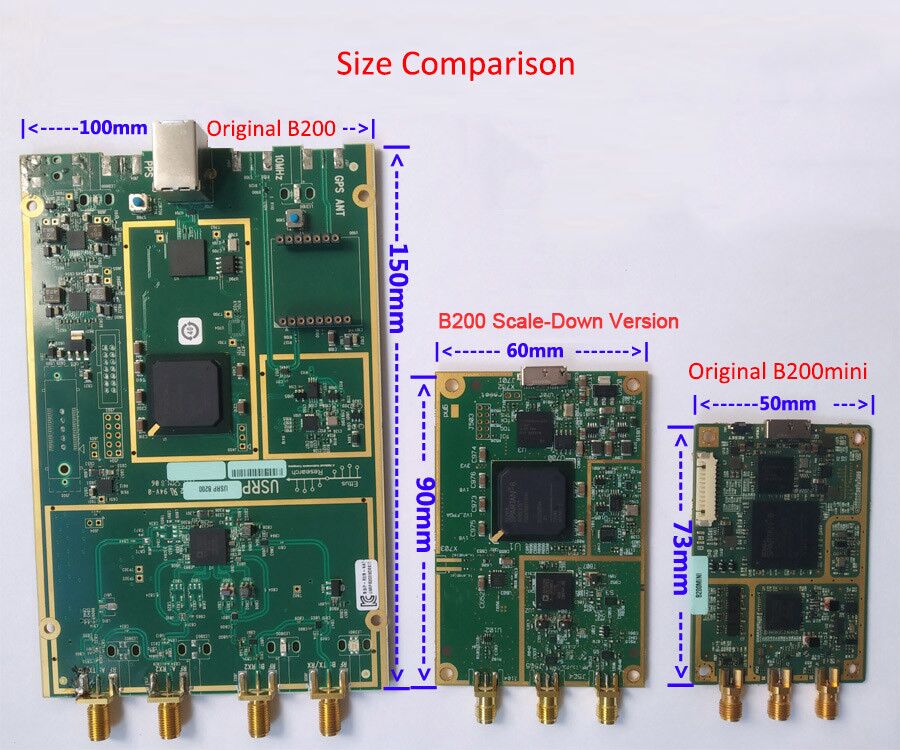

Comparison:
- It is more reasonable and compact than B200 structure layout.
- It is better than B200mini in RF electromagnetic compatibility.
- Its stability is better after long time testing.
