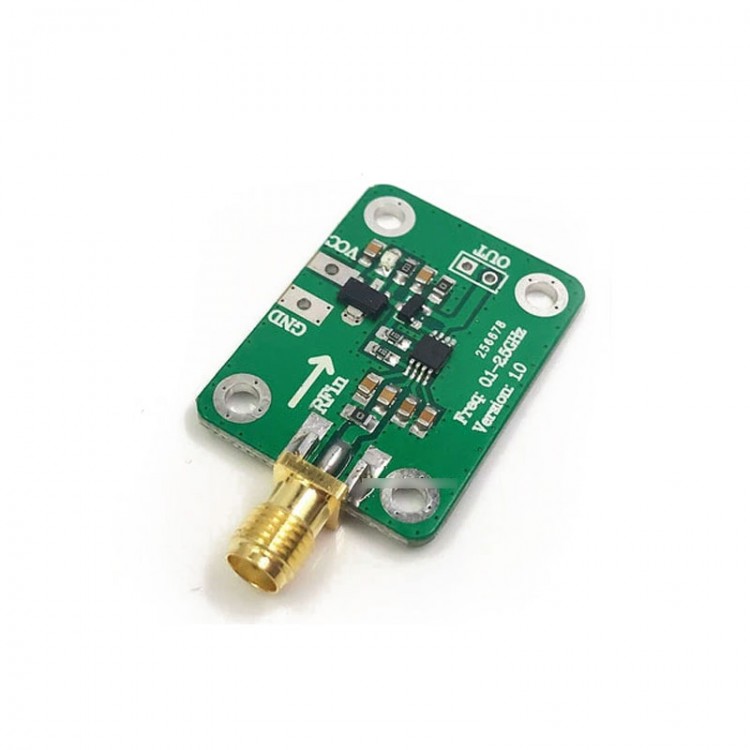

-72dBm ~ -2dBm AD8313 RF Power Meter Logarithmic Detector 0.1 - 2.4GHz Frequency Detection Module
Application:

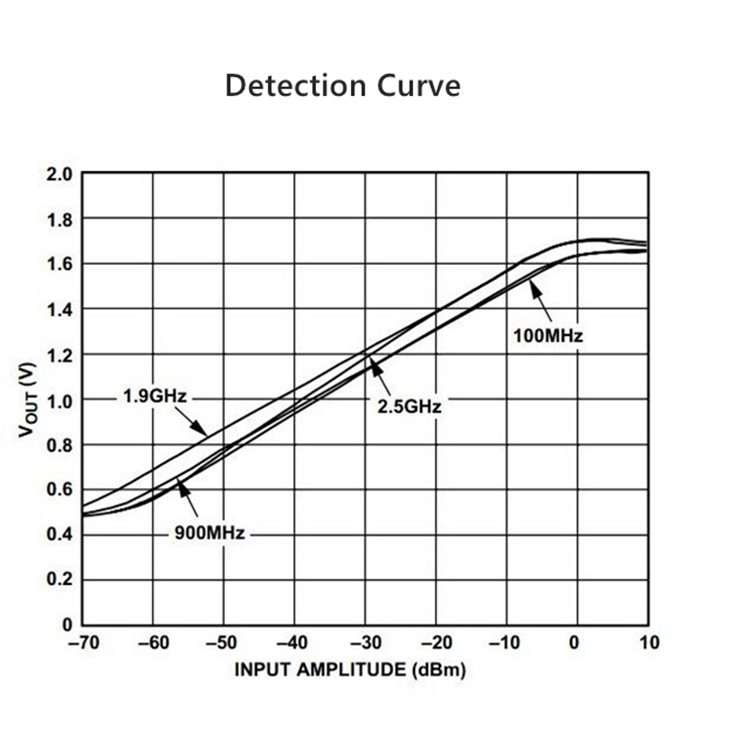

- This product is used for RF signal power detection, with a detection frequency range of 0.1-2.4GHz. It can detect a RF signal with a power range of -72dBm to -2dBm, and convert such RF signal into a DC voltage output. The larger the amplitude or power of the RF signal, the higher the output voltage. The output voltage is proportional to the logarithm of the input signal amplitude, thereby expanding the dynamic range of the detected signal, which reaches 70dB.
- It can be widely used in RF signal detection, signal power measurement, environmental field strength detection, and can also be used as a component of automatic gain control and automatic level control.
Specification:
- Working frequency: 0.1 - 2.5GHz
- Measuring power: -72 ~ -2dBm
- Output voltage: 0.5 - 1.65V
- Detection slope; 18mV/dBm (Typ.)
- Input impedance: 50ohm
- Power supply voltage: 7 - 15V
Package Included:
- 1 x Module
