Frequency Sweep Generator Meter 50K-4.4GHz Network Analyzer NWT4000-3
Specification:
- TYPE:NWT4000-3 sweep analyzer
- Frequency range:50k-4.4GHz
- STEP:50k-35M/10Hz *** 35M-68.75M/15.625Hz *** 68.75M-137.5M/31.25Hz;
137.5M-275M/62.5Hz *** 275M-550/0.125KHz *** 550M-1.1G/0.25KHz;
1.1G-2.2G/0.5kHz *** 2.2G-4.4G/1kHz;
- RF output power:-5DBM
- MAX input power:-5dBM
- Detection: a logarithmic detector ， 50k-34.99999M, direct detection, 35M-4.4G frequency conversion detection,
- Sweep time 4 second/550 point
- Connect :USB/N
- POWER:DC12V/0.3A
- Control software:WINNWT4
- Size:118*64.5*23.5mm
- Weight:800 g

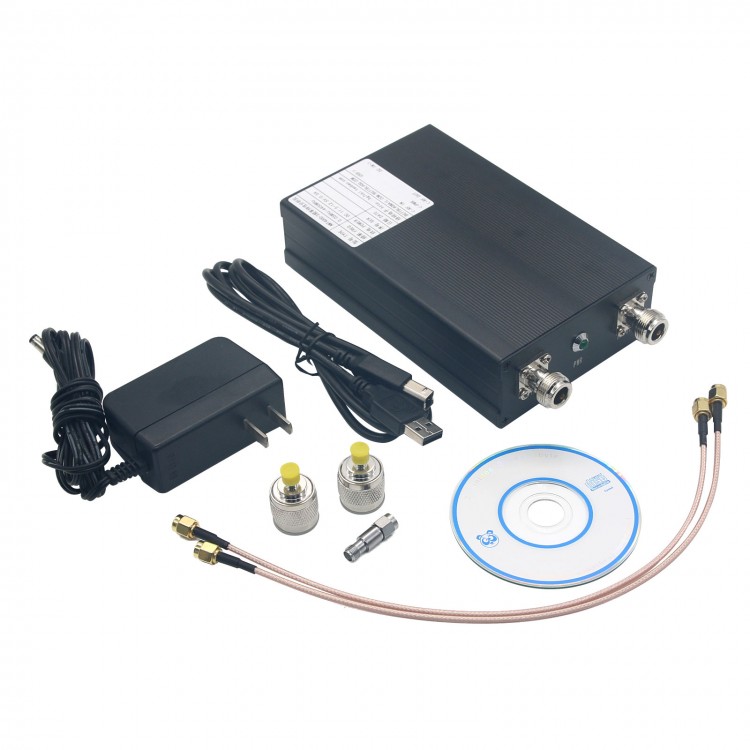

Package List:
- 1 x Frequency Sweep Generator
- 1 x USB CABLE
- 2 x SMA cable
- 1 x DISC
- 1 x DC-6G attenuator
- 1 x AC220-DC12V adapter
- 2 x N-SMA
