Tags: Frequency Sweeper Generator
| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $241.19 | $236.27 | $228.88 | $219.04 | Contact US |
OC3-ADJ 75ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 50ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75

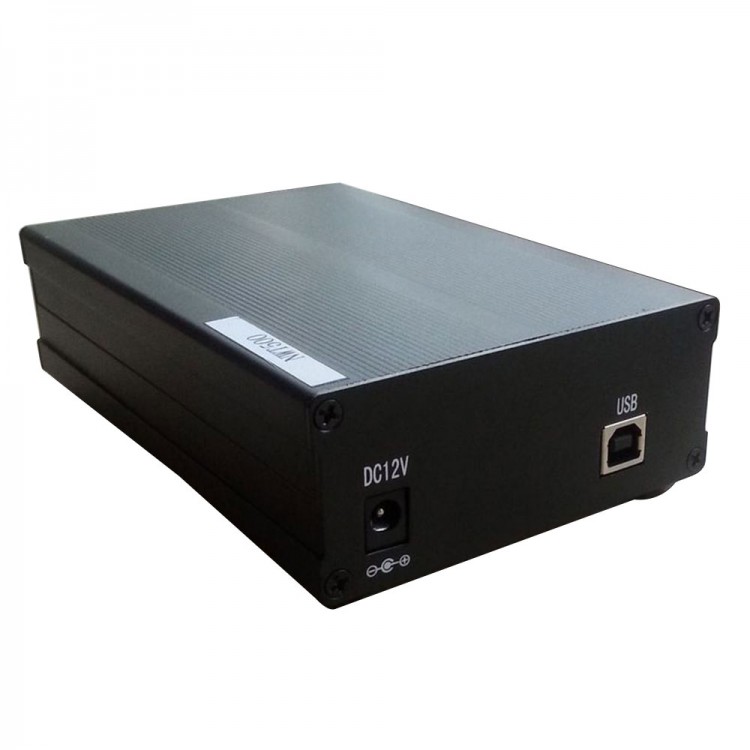

NWT4000-2PRO 35M-4.4G Frequency Sweeper Generator Simple Spectrum Network Analyzer
Document Download Link: Click here Code:4145
Instruction: Click Here
Specification:
- 35M-4.4G sweep,simple spectrum analyzer,generator.
- Model : sweep simple spectrum analyzer,simple signal generator
- Freuqnecy range:35MHz-4.4GHz，
- STEP:2.2G-4.4G/1kHz; 1.1G-2.2G/0.5kHz; 550M-1.1G/0.25KHz; 275M-550/0.125KHz;
137.5M-275M/62.5Hz, 68.75M-137.5M/31.25Hz; 35M-68.75M/15.625Hz
- RF output power:-5DBM
- MAX input power:-5dBM
- Sweep time 4 second/550 point
- Connect :USB/SMA
- POWER:DC12V/0.5A
- Control software:WINNWT4
- Size:41*97*168mm (with N connect)
- Weight:500 g
Package List:
- 1 x Frequency Sweeper Generator
- 1 x USB CABLE
- 2 x SMA CABLE
- 1 x DISC 1PCS
- 1 x 40DB attenator
