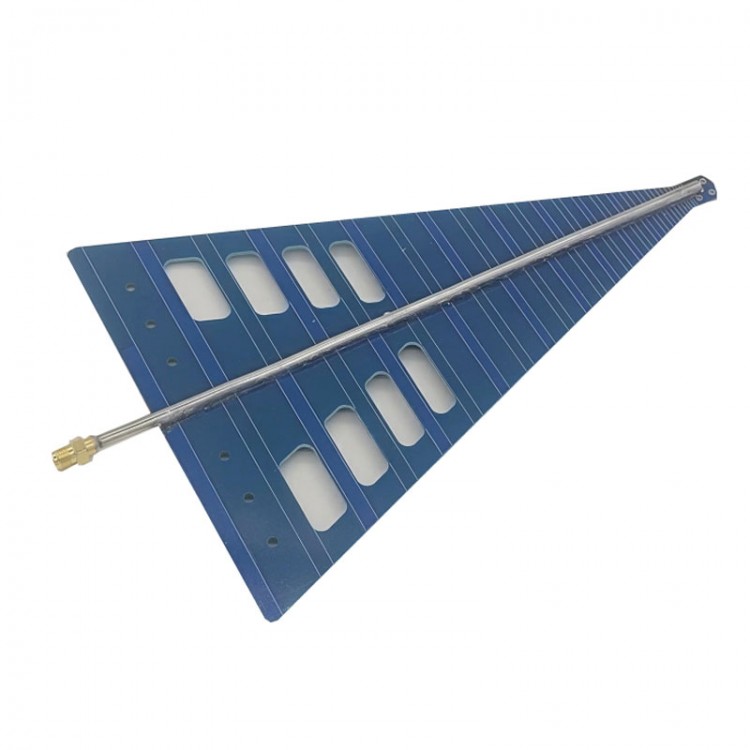

780MHz - 7.5GHz High Gain UWB Dedicated Log Periodic Antenna with SMA Female Connector EMC Antenna
Description:
- Log-periodic antenna is a broadband, high-gain log-periodic antenna that can be used for direction finding, spectrum analysis, signal analysis, positioning, broadband measurement, direction finding, etc. It can provide directional benefits of 6-9dBi in the frequency band range of 780 MHz to 7.5GHz. It provides the high field strength requirements for EMC testing, making it an ideal test antenna.
Specification:

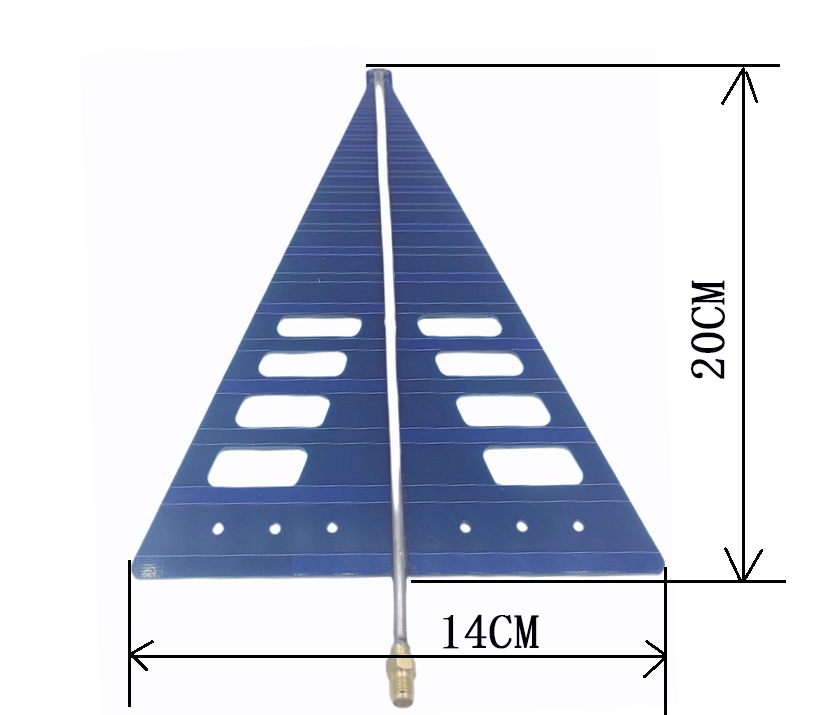

- Size: 200 x 140 x 1.6mm
- Antenna broadband: 780 - 7.5GHz
- Impedance: 50ohm
- Gain: 7dBi - 9dBi

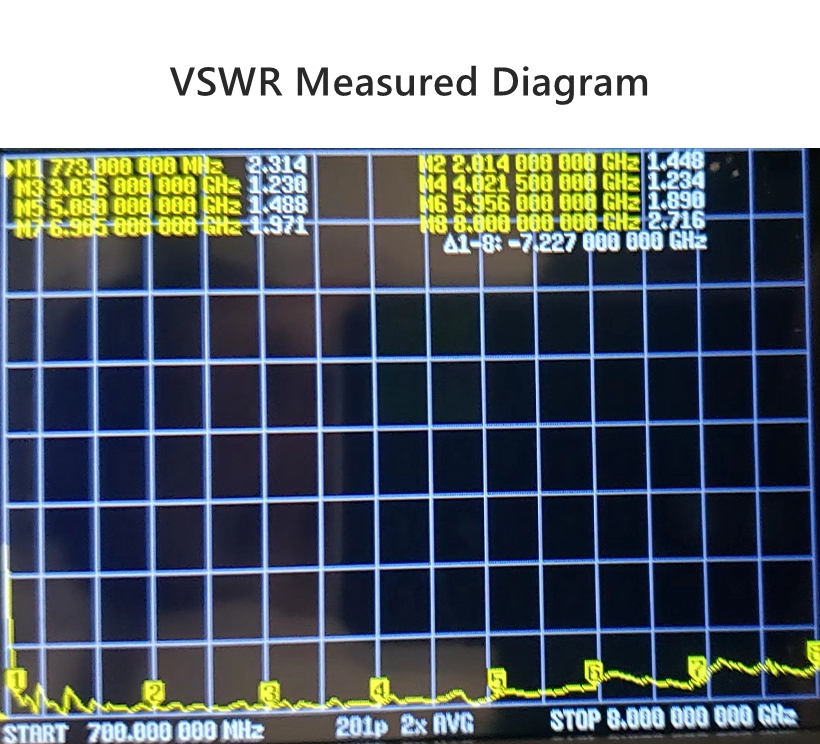

- VSWR: <2
- Connector type: SMA Female (SMA-K)
Package Included:
- 1 x Log Periodic Antenna (SMA-K Connector)
