915MHz 13W–15W 36dB FPV RF Power Amplifier Module RF Power Amp w/ 820MHz–960MHz Operating Frequency
Technical Specifications:
* Operating Frequency: 820MHz–960MHz
* Input/Output Impedance: 50Ω
* Maximum Input Power: 10dBm at 10mW
* Output Power: 13W at DC 24V and 15W at DC 28V
* Power Supply Voltage: 24V–28V
* Operating Current: 1.8A (varies with input power and supply voltage)
* Module Connectors: SMA female on both ends
* Enclosure: CNC-machined sandblasted aluminum case
* Cooling: Aluminum profile heat sink with an always-on fan (high fan speed, slightly noisy)

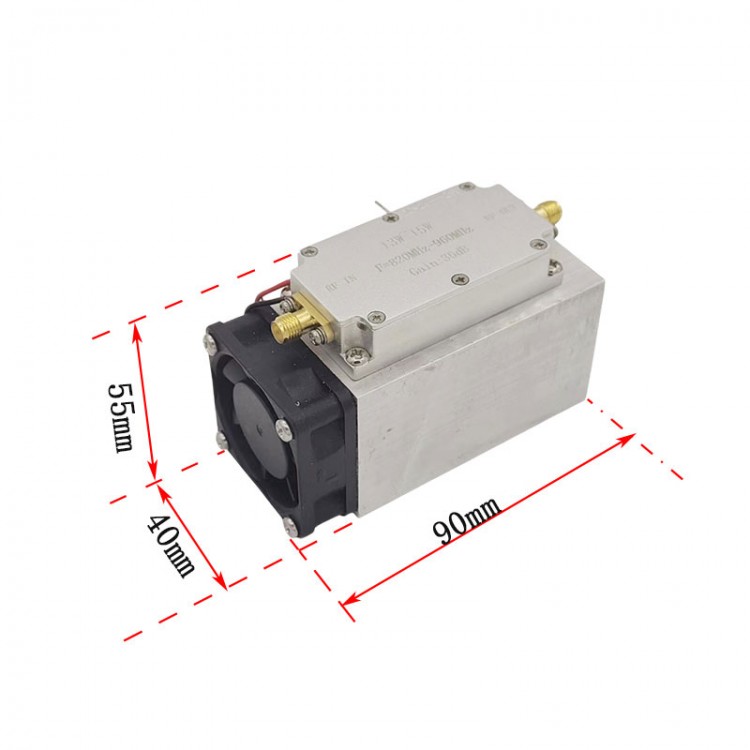

* Dimensions: 90mm x 40mm x 55mm (including heat sink)
* Weight: 192g
Attention:
* Ensure the input (RF IN) and output (RF OUT) ports are connected first, and only then connect the DC power supply.
* When supplying DC power to the module, make sure the positive and negative terminals are connected correctly. Do not reverse the polarity, as this can damage the module!
Packing List:
* 1 x RF Amplifier
Packaging Details:
* G.W.: 0.22kg
Note:
* When transmitting with an antenna, please select an antenna with a standing wave ratio below 2 at the corresponding frequency.
* Be sure to connect a load at the output end before supplying DC power.
* Operating without a load may damage the module.
