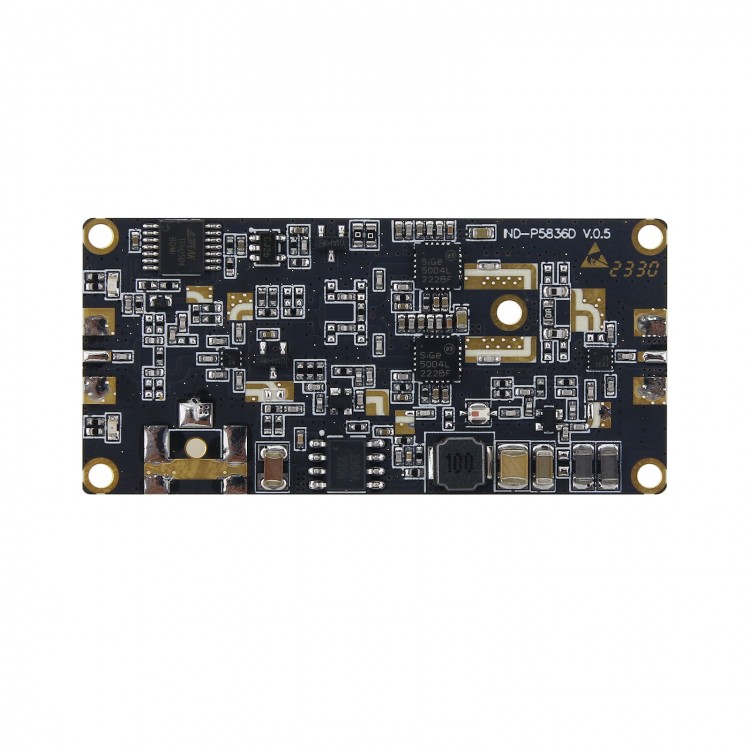

ACASOM 5.8G 4W PCBA High Quality Signal Booster Antenna Range Extender Module for RC Drones FPV UAV
Specification:
- Frequency range: 5.725 ~ 5.85GHz
- Operating voltage: 6 ~ 16V
- Receiving gain: 17dB±1
- Transmission gain: 18dB±1
- Input trigger power:
Min: 3dBm
Max: 20dBm
- Max output power (P1dB): 36dBm (4W)
- EVM: 3% at 28dBm 802.11 54Mbps OFDM 64QAM BW 20MHz
- DC supply current: 435mA at Pout 28dBm 9V
Package Included:
- 1 x PCBA
