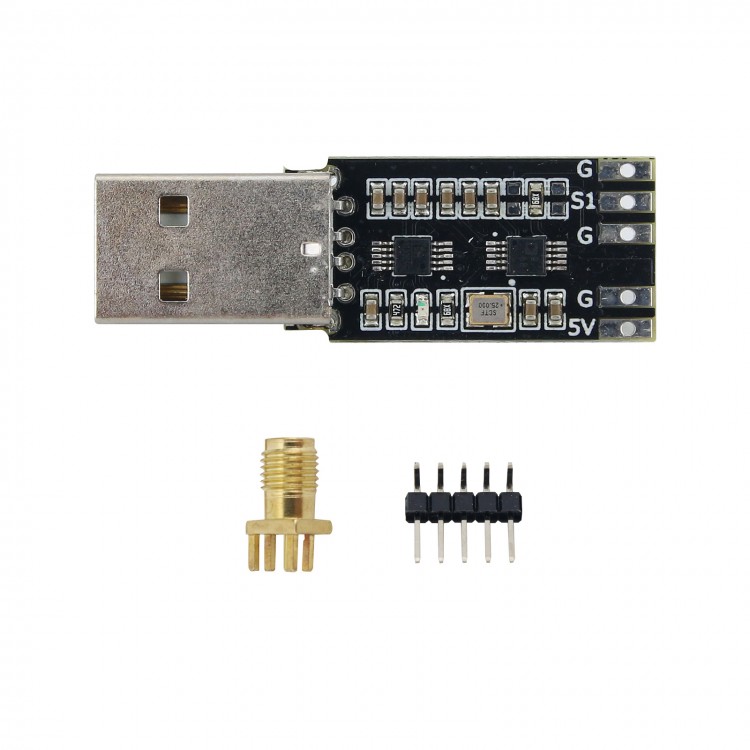

AD9833 1Hz--12MHz Signal Generator Module USB Interface Sine Wave Triangular Wave Square Wave Output
Features:
- Support sine wave, triangular wave, square wave output

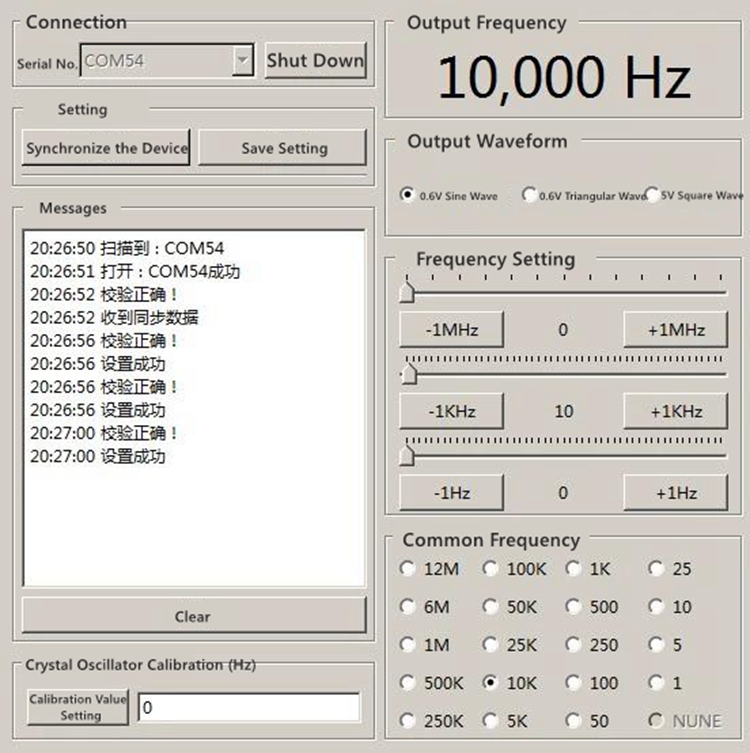

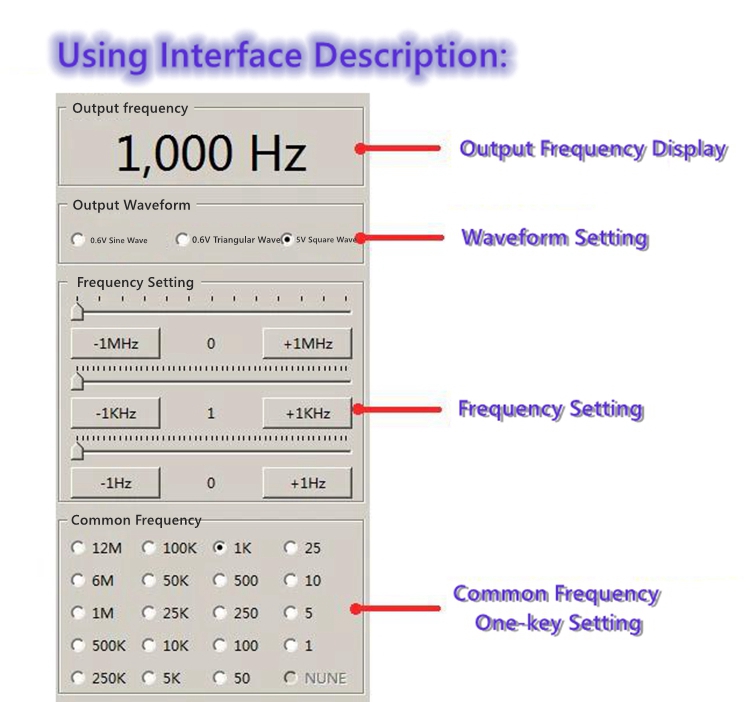

- Support upper computer fast setting of frequency and waveform
- Support fixing output frequency and waveform after saving parameter
- Support oscillator error calibration to realize precise output
- 1Hz adjustment accuracy, 1Hz-12MHz adjustable range
- Stable output frequency
Specification:

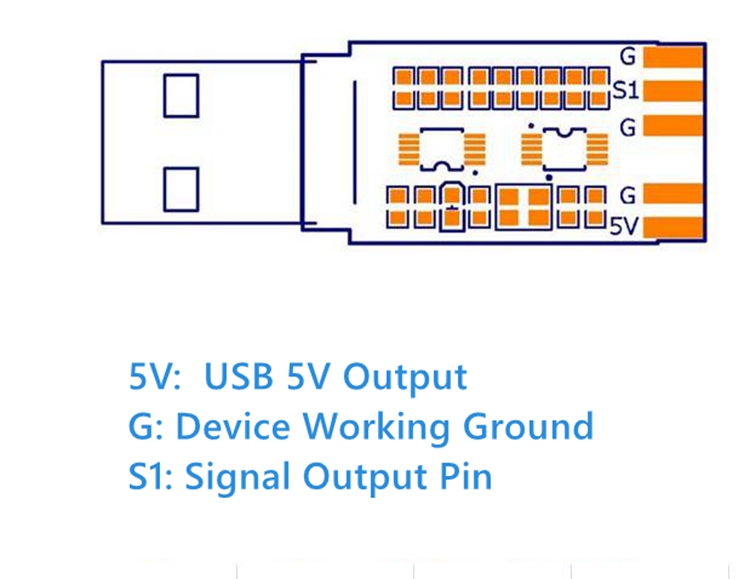

- Working voltage: USB 5V
- Output frequency: 1Hz-1MHz for sine wave; 1Hz-1MHz for triangular wave; 1Hz-12MHz for square wave
- Output amplitude (Vpp): 600mV for sine wave; 600mV for triangular wave; 5V for square wave
- Adjustment accuracy: 1Hz for sine wave; 1Hz for triangular wave, 1Hz for square wave.
Note:
- It is not recommended to use for DuPont cable for frequency above 1MHz, please use high frequency transmission cable with SMA connector.
Package Included:
- 1 x Signal Generator Module
