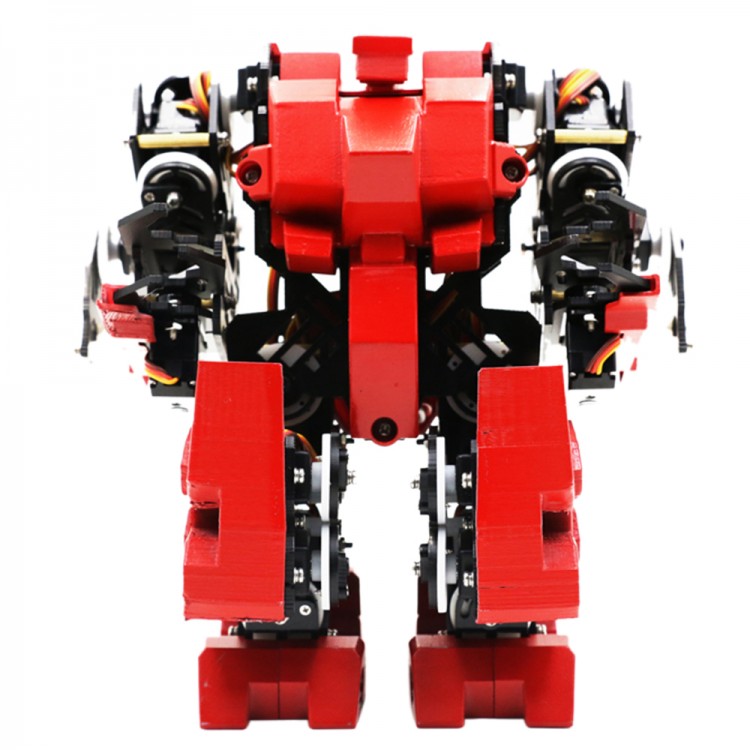

AI.Frame Apollo AIF-44-0 Anthropomorphic Robot Humanoid Robotic Kit for DIY with Metal Servo
Description:
Ai.Frame Apollo is an open-source, miniature humanoid robot. Versatile, abundant upgrades, customizable commands, pre-assembled or self-assembly.
Apollo is equipped with 16 metal micro actuator, the body skeleton is made of acrylic sheet material, using a laser cutting process. Fuselage using 3D printing technology to produce (mold), currently housing a total of three different styles, users can also customize their favorite shell, and his name or logo printed on the outer shell. Its suite of for parts, the user needs to DIY. Control part adopts 32 servo control board, and is equipped with intelligent mobile phone remote control software to remote control robot.
Technical parameters
- Frame material: acrylic sheet
- Housing material: ABS engineering plastic
- Protocol: Bluetooth 4.0
- Width height (CM): 18*11*22CM
- Main control panel CPU signal: STM32
- Power Board features: low voltage protection, overload protection,
- Servo performance:Actuator:R & D servo, performance better, more durable
- Torque: 4kg.cm
- Gear: all-metal with overload protection
- PWM output: 32 50HZ PWM
- Control software: graphics software
- Mobile APP support: Android+IOS
- Battery: 850 mAh
- Weight: 680g
- Version: Metal Gear Servo
- Note:This product is self-assembly.
Package included:
- 1 x Robot Kit
