• Air-Cooled High-Speed Spindle Motor DC12-48V 300W with Power Supply for Engraving Machine CNC

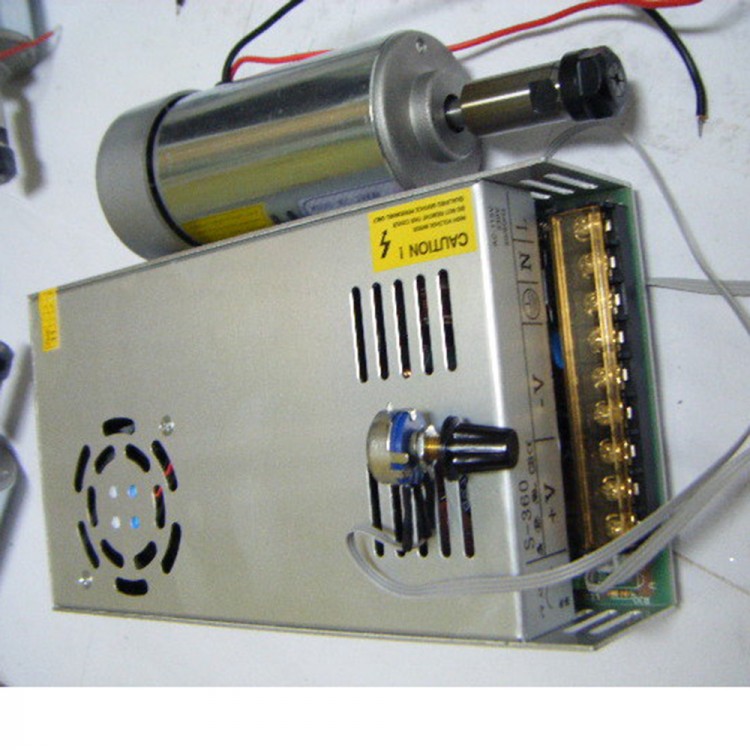

Air-Cooled High-Speed Spindle Motor DC12-48V 300W with Power Supply for Engraving Machine CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$110.19
  • Price in reward points: 1102 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $107.99 $105.78 $102.48 $98.07 Contact US
Quantity:

Air-Cooled High-Speed Spindle Motor DC12-48V 300W with Power Supply for Engraving Machine CNC

Specification:

- Operating voltage: 12-48VDC
- Power: 300W
- Speed: 3000-12000r / min
- Torque: 230mN.m
- Insulation resistance:> 2 megohms
- Dielectric strength: 400V
- Diameter: 52mm
- Spindle runout about 0.01-0.04
- It can be used for engraving metal or non-metal and other materials
- Chuck (default type:3.17MM) and can be 1/1.5/2.0/2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0/6.5/7 types, each of the jaws clamp range: 0.5mm

Power supply:
- Input: AC 220V 50HZ
- Output:DC0-48V
- Power: 360W
- With fan
- Can be stepless speed regulation range: 0-100% by potentiometer

Package included:
- 1 x Spindle Motor
- 1 x Power Supply
