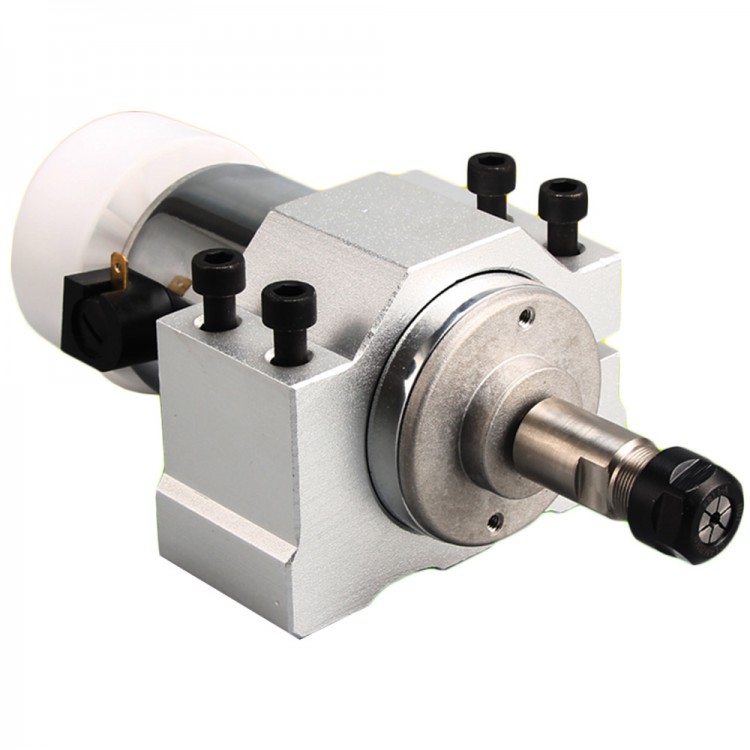

• ER11 300W Air-Cooled Single Spindle Motor+48V 360W Power Supply+Motor Mount 52mm for PCB Engraving Machine DIY CNC
  • ER11 300W Air-Cooled Single Spindle Motor+48V 360W Power Supply+Motor Mount 52mm for PCB Engraving Machine DIY CNC

ER11 300W Air-Cooled Single Spindle Motor+48V 360W Power Supply+Motor Mount 52mm for PCB Engraving Machine DIY CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$85.40
  • Price in reward points: 854 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $83.69 $81.98 $79.42 $76.01 Contact US
Quantity:

ER11 300W Air-Cooled Single Spindle Motor+48V 360W Power Supply+Motor Mount 52mm for PCB Engraving Machine DIY CNC

Specification:

- Operatign current: DC12-48V
- Power: 300W
- Max. current: 6A
- Speed: 3000-12000r/min (12V-3000r/ 24V-6000r/36V-9000r/ 48V-120000r)
- Torque: 40mN.m
- Temperature rise: 15 deg C
- Insulation resistance: >2MOhm
- Dielectric strength: 400V
- Diameter: 52mm
- Clamping chuck length: 35mm
- Wrench: 13/ 17
- Motor length: 175mm
- N.W: 0.8kg

Power supply:
- AC/IN: 110/220V +-20%
- DC/OUT:0-48V 7.5A
- Voltage: 48V
- Power: 360W

Connection method:
- The adjustable power supply 1 and 4 are for motor, 8 and 9 for 220V voltage, 7 for grouding line.
- One power supply can run 3 spindle motor at the same time.
- 2 and 5 is a group; 3 and 6 a group.

Package included:
- 1 x Spindle Motor
- 1 x Power Supply
- 1 x Motor Mount
