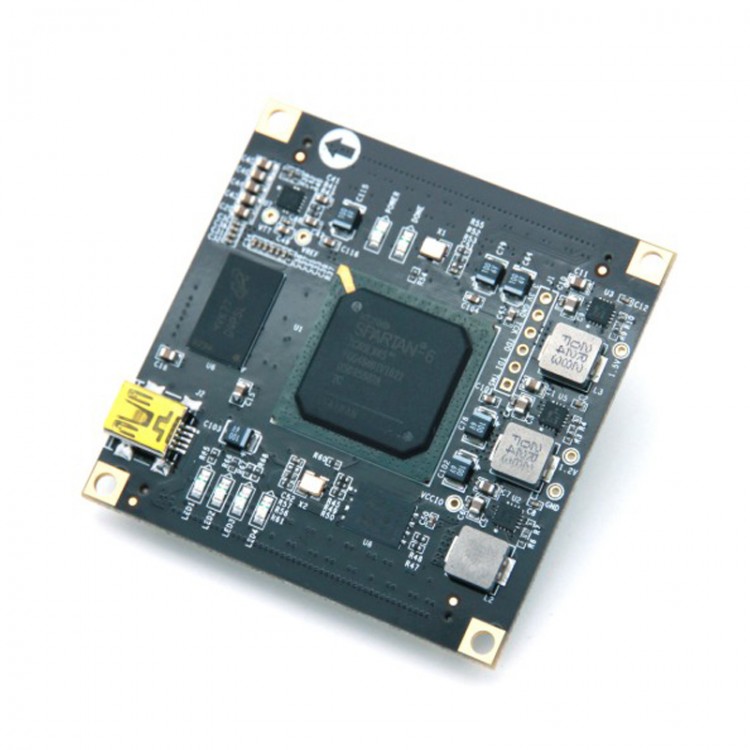

ALINX XILINX FPGA LX45 Development AC6045 Core board Active Crystal Support LVDS

Availability: In stock, usually dispatched in 1 business day

  • Price:$204.41
  • Price in reward points: 2044 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $200.32 $196.23 $190.10 $181.92 Contact US
Quantity:
Buy it now Add cart

You might like

XILINX FPGA Development Board XC3S500E Spartan-3E Core Board Minimum System Board

XILINX FPGA Development Board XC3S500E Spartan-3E Core Board Minimum System Board

$38.84

(0)
Unwelded New SP Version 7020 FPGA Minimum System Development Board Core Board with Onboard Downloader for Xilinx

Unwelded New SP Version 7020 FPGA Minimum System Development Board Core Board with Onboard Downloader for Xilinx

$117.98

(0)
Singxer SDA-1 DAC AMP DSD512 USB2.0 PCM HDMI XMOS Decoder Amplifier xCORE-200 AK4493EQ Black

Singxer SDA-1 DAC AMP DSD512 USB2.0 PCM HDMI XMOS Decoder Amplifier xCORE-200 AK4493EQ Black

$699.00

(0)
ALTERA FPGA Developing Board Studying NIOS EP4CE6 Chip SPI FLASH AX Expansion for Students

ALTERA FPGA Developing Board Studying NIOS EP4CE6 Chip SPI FLASH AX Expansion for Students

$48.86

(0)
Unwelded New SP Version 7020 FPGA Minimum System Development Board (Downward Welding) Core Board Onboard Downloader for Xilinx

Unwelded New SP Version 7020 FPGA Minimum System Development Board (Downward Welding) Core Board Onboard Downloader for Xilinx

$102.43

(0)
XILINX FPGA SPARTAN6 LX16 DDR3 Development Board 1G DDR3 128M FLASH Gigabit Ethernet for Arduino

XILINX FPGA SPARTAN6 LX16 DDR3 Development Board 1G DDR3 128M FLASH Gigabit Ethernet for Arduino

$223.16

(0)
Unwelded SP2 Version 7020 FPGA Minimum System Development Board 1.3-inch Square Screen Core Board Onboard Downloader for Xilinx

Unwelded SP2 Version 7020 FPGA Minimum System Development Board 1.3-inch Square Screen Core Board Onboard Downloader for Xilinx

$119.76

(0)
Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM

Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM

$73.99

(0)

ALINX XILINX FPGA LX45 Development AC6045 Core board Active Crystal Support LVDS

Product Specification:
- FPGA mode:XC6SLX45-2FGG484
- DDR3:2Gbit
- FLASH:64Mbit

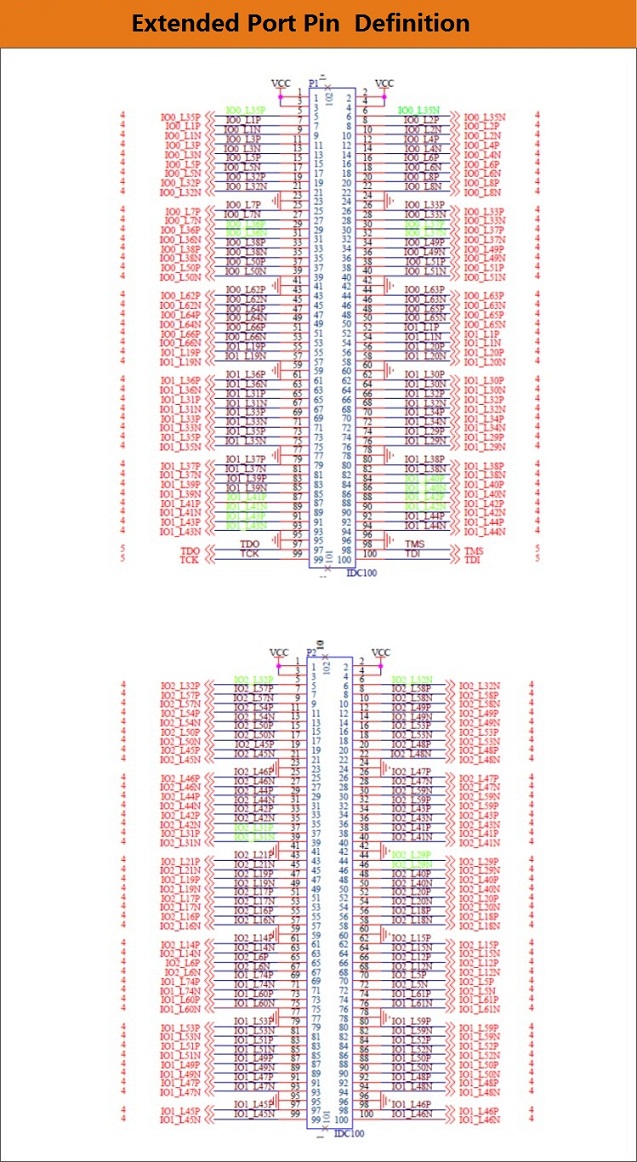

- Reserved IO port:2 way 100 pin high speed connector 168
- Support LVDS:84 Pair LVDS
- Reserved JTAG port lead to Expansion port
- Onboard 3.3V,1.2V,1.8V Power,only need supply 5V electricity
- USB  electricity supply port,the core board can work separately.
- Onboard 50M and 27M Active crystal

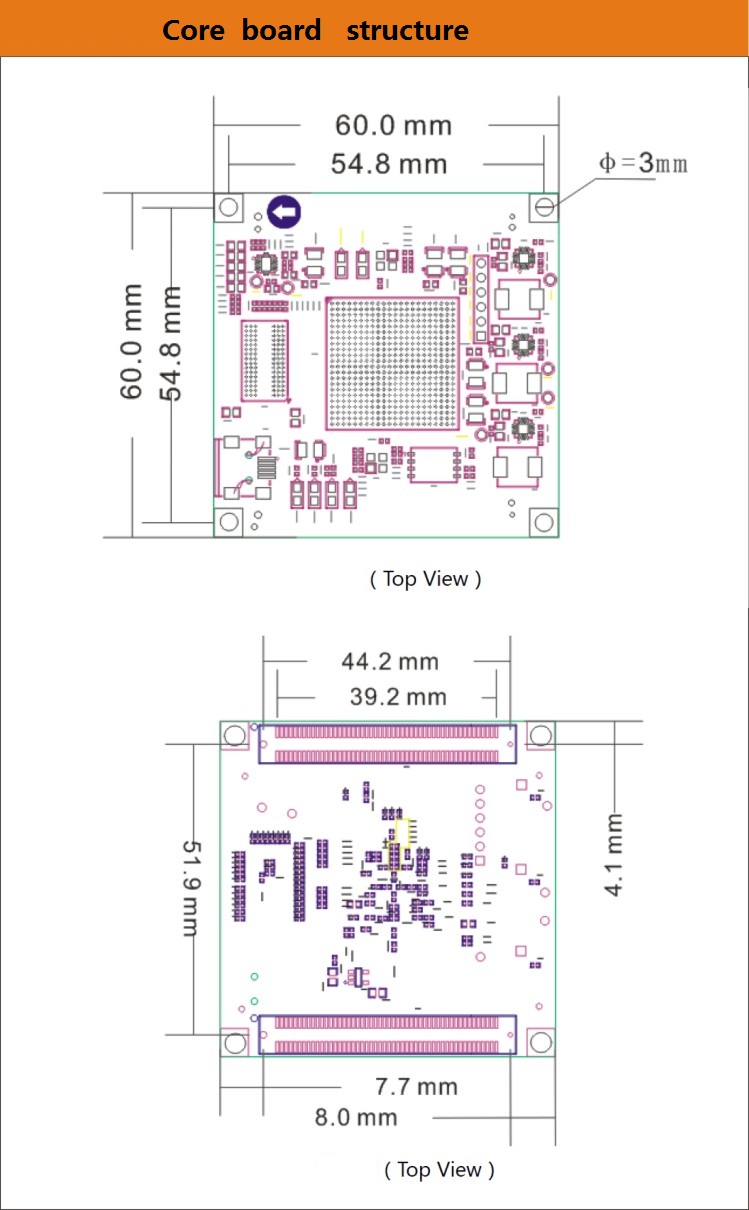

- Size:60*60mm

Package List:
- 1X    FPGA Core board
- 1X    MiNi USB wire
- 2X    Plate to plate connector
