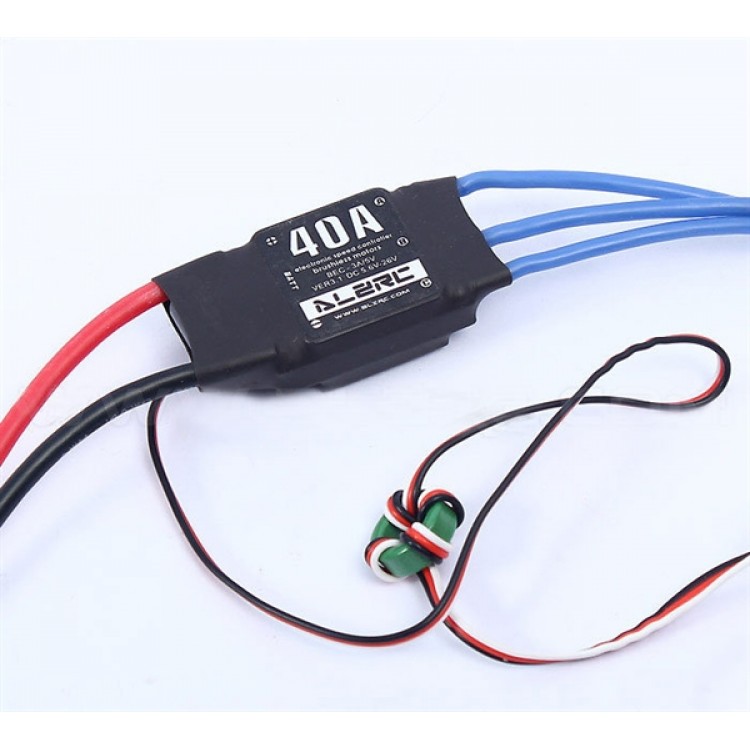

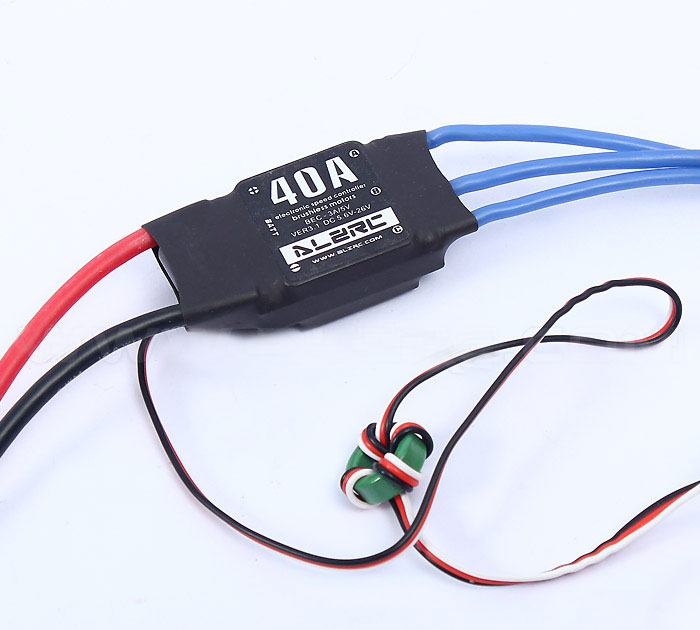

ALZRC 40A ESC RCE-BL40A

ALZRC 40A ESC RCE-BL40A

Description:

1.The power input uses high-capacity low-impedance electrolytic capacitors, which greatly improved anti-jamming capability;
2.Output power MOSFET with a separate heat sink, effectively reducing the device temperature, high current ability to work to improve the    system;
3.Single-chip control;
4.Microcontroller chips using an independent regulator, to avoid interference caused by power supply BEC load changes, to improve the stability of single-chip work;
5.provide gold-plated motor connectors and heat shrink tubing DPM, easy to install (Note: This is optional equipment);

Specification:

Output:  Continuous current 40A, short-time current 55A (less than 10 seconds)
Power input  2-6 LiPo or 5-18 NiMH / NiCd battery pack
BEC output: 3A (switch mode power supply regulator-switch mode)
Maximum speed:   2 Poles 210 000 r / min, 6 poles 70 000 rev / min, 12-pole motor 35 000 rev / min
Dimensions:   55mm (length) * 28mm (W) * 12mm (H)
Weight: 35g (including heat sink)
Accessories: gold-plated motor connectors and heat shrink tubing three (optional)

Content:

40A ESC x 1
