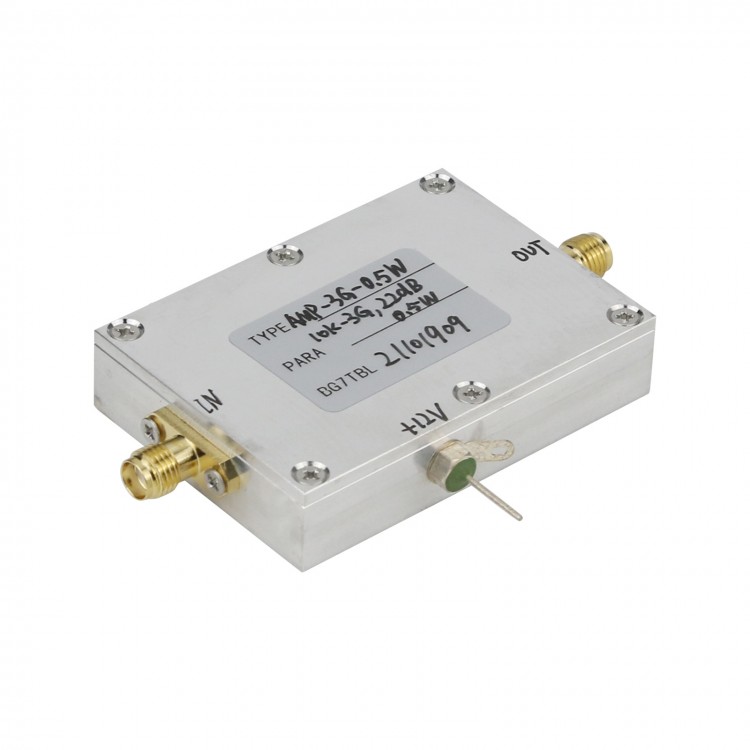

AMP-3G-0.5W Small Broadband RF Power Amplifier 10K-3G Gain 22DB 0.5W Low Noise For Signal Generators
Description:
10K-3G 0.5W amplifier can be used with signal generators to increase signal output power.
Specifications:
- Model: AMP-3G-0.5W
- Power supply: DC11.5-13V, <0.3A
- Gain: 10M-3G/22dB+/-1.5dB; 10K-10M/23.5dB+/-1.5dB
- Operating frequency: 10k-3.0GHz
- Noise figure: 5dB
- Input and output impedance: 50 ohms
- Maximum output power: 0.5W
- Input return loss: 15DB at 0.9G
- Output return loss: 13DB at 1G
- Maximum input power: 13dBm
- Connector: SMA
- Size: 75 x 54 x 12mm/3 x 2.1 x 0.5" (L*W*H)
- Weight: 65g
Package Included:
- 1 x RF Power Amplifier Module
