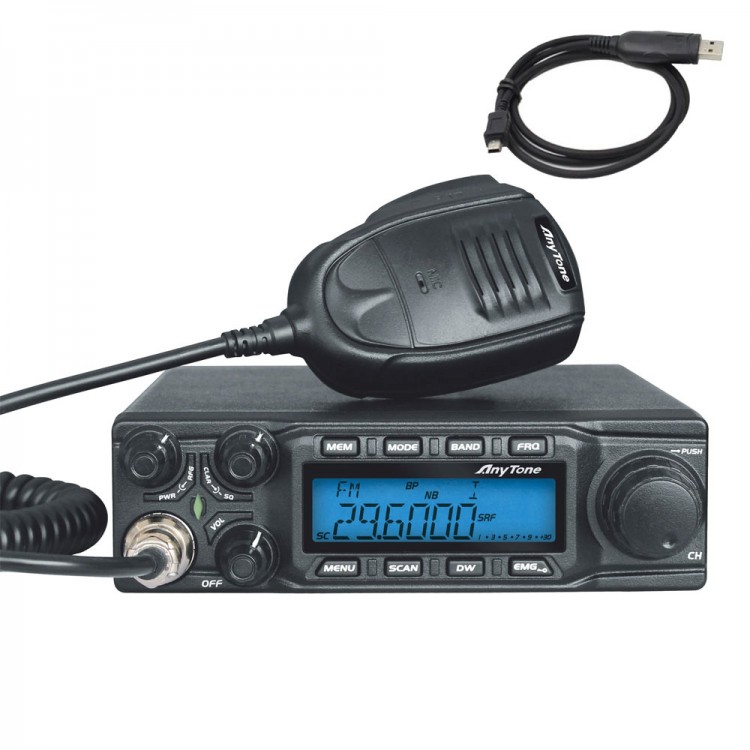

AnyTone AT-6666 28.000-29.699Mhz 60W CB Radio Mobile Radio Transceiver with Programmable Cable

AnyTone AT-6666 28.000-29.699Mhz 60W CB Radio Mobile Radio Transceiver with Programmable Cable

Features:
* AnyTone AT-6666 High Output Power: 15W/45W/60W, flexible menu function and big LCD to display frequency. Perfect for truckers
* 6 groups memory channel
* 7-color LCD display-white/blue/green/yellow/red/purple/cyan to meet your needs.Free to download the programming software at AnyTone Official Website
* Frequency Tuning Step 100Hz, 1KHz, 10KHz, 100KHz and 1MHz
* Frequency Control: Phase-Locked-Loop Synthesizer
* Microphone with push-to-talk/UP/DN and cold cord
* Programmable RB Function, NB/ANL Function, SQ and ASQ Function
* 40 channels (programmable) in each band, DW DUAL-WATCH Function, EHCO Function, DTMF, TOT, BEEP Voice Prompt, EMG CALL, SWR PROTECTION, HI-CUT Function, +10KHZ Function, Power Supply Voltage Protection, Key-Lock Function and more
* SCAN, NB/ANL, DW DUAL-WATCH, TOT, HI-CUT, DTMF Functions
* ±1.5KHz clarifier, +10KHZ function; SWR, S/RF function, Key-lock function
* Power Supply Voltage Protection and RF GAIN/RF PWR Adjustment

General Parameters:
* Frequency Range: 28.000-29.699Mhz (Programmable)
* Frequency Band: A/B/C/D/E/F/G/H/I
* Channel: 40channels (programmable) in each band
* Frequency Control: Phase-Locked-Loop Synthesizer
* Frequency Step: 100Hz, 1KHz, 10KHz, 100KHz and 1MHz
* Frequency Tolerance: ±5.0 ppm
* Temperature Range: -20℃ to +50℃
* Microphone: with push-to-talk /UP/DN and coiled cord
* Input Voltage: 13.8V
* Dimensions (in mm): 245(L) x 158(W) x 48(H)
* Weight: 1.5kg
* Antenna Connector: UHF, SO239

Transmitter:
* Power Output: AM: 15W / FM: 45W / SSB: 60W (PEP)
* Drain: 12A (with modulation)
* Modulation: FM/AM/USB/LSB
* Inter-modulation Distortion: SSB: 3rd order, more than -25dB; 5th order, more than -35dB
* SSB Carrier Suppression: 55dB
* Unwanted Side-band: 50dB
* Frequency Response: AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
* Output Impedance: 50ohms, unbalanced

Receiver:
* Sensitivity: SSB: 0.25μV for 10dB (S+N)/N AM:1.0μV for 10dB (S+N)/N FM: 1.0μV for 20 dB (S+N)/N (All at greater than 1/2 watt of audio output)
* Adjacent-Channel Selectivity: AM/FM: 60dB SSB: 70dB
* Image Rejection: More than 65dB
* IF Frequency: AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz
* RF Gain Control: 45dB adjustable for optimum signal reception
* Automatic Gain Control (AGC): Less than 10dB change in audio output for inputs from 10 to 100,000 micro-volt
* Squelch: Adjustable; threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV
* Audio Output Power: 3W at 8 ohms
* Frequency Response: AM/FM: 300 to 3000Hz; SSB: 450 to 2500Hz
* Built-in Speaker: 8 ohms, round
* Supported external Speaker (not included): 8 ohms; disables internal speaker when connected

Package Included:
* 1 x Transceiver
* 1 x Microphone
* 1 x Mounting bracket
* 1 x Set of accessories
* 1 x Programmable cable
