APDS-9960 Proximity Ambient Light RGB Gesture Sensor Module for Arduino DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.08
  • Price in reward points: 91 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.90 $8.72 $8.44 $8.08 Contact US
Quantity:

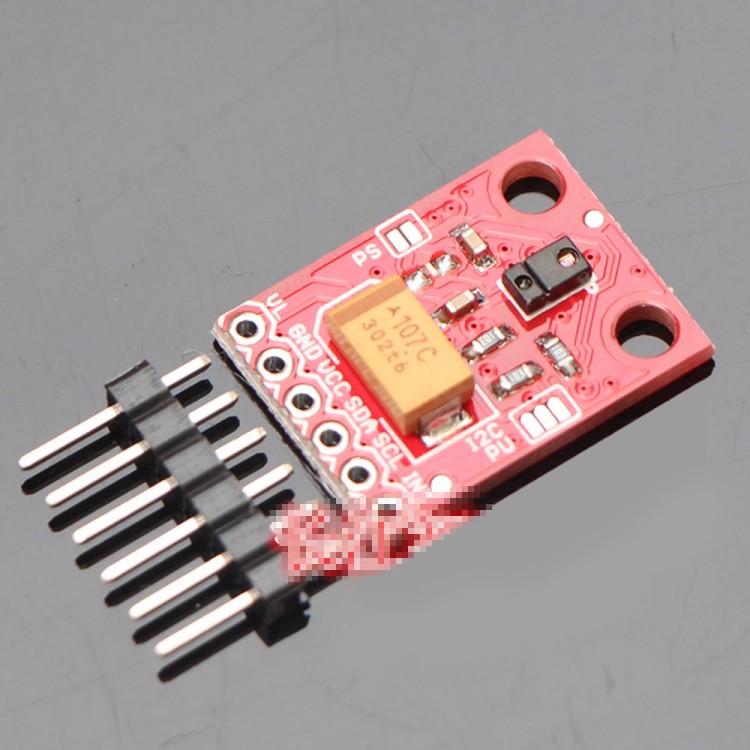

APDS-9960 Proximity Ambient Light RGB Gesture Sensor Module for Arduino DIY

Description:

Broadcom's APDS-9960 Digital Proximity Ambient Light RGB and Gesture Sensor features advanced Gesture detection, Proximity detection, Digital Ambient Light Sense (ALS) and Color Sense (RGBC). The slim modular package, L3.94 x W2.36 x H1.35 mm, incorporates an IR LED and factory calibrated LED driver for drop-in compatibility with existing footprints. Gesture detection utilizes four directional photodiodes to sense reflected IR energy (sourced by the integrated LED) to convert physical motion information (i.e. velocity, direction and distance) to a digital information.

Features
- Sensing, and Gesture Detection in an Optical Module
- Ambient Light and RGB Color Sensing
- UV and IR blocking filters
- Programmable gain and integration time
- Very high sensitivity - Ideally suited for operation behind dark glass
- Proximity Sensing
- Trimmed to provide consistent reading
- Ambient light rejection
- Offset compensation
- Programmable driver for IR LED current
- Saturation indicator bit
- Complex Gesture Sensing
- Four separate diodes sensitive to different directions
- Ambient light rejection
- Offset compensation
- Programmable driver for IR LED current
- 32 dataset storage FIFO
- Interrupt driven I2C communication
- I2C-bus Fast Mode Compatible Interface
- Data Rates up to 400kHz
- Dedicated Interrupt Pin
- Small Package L3.94 × W2.36 × H1.35mm

Applications
- Gesture Detection
- Color Sense
- Ambient Light Sensing
- Cell Phone Touch Screen Disable
- Mechanical Switch Replacement

Package List:
- 1 x Sensor Module
