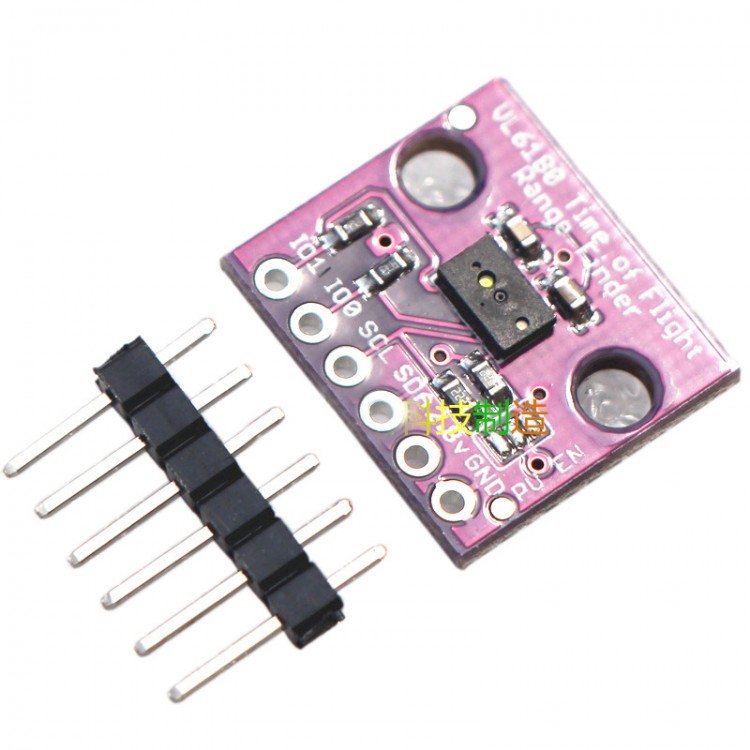

• CJMCU-6180 VL6180 Proximity Sensor Ambient Light Sensor Gesture Recognition Development Board

CJMCU-6180 VL6180 Proximity Sensor Ambient Light Sensor Gesture Recognition Development Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.85
  • Price in reward points: 159 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.53 $15.22 $14.74 $14.11 Contact US
Quantity:

CJMCU-6180 VL6180 Proximity Sensor Ambient Light Sensor Gesture Recognition Development Board

Description:
- ST introduced a new high-precision optical distance measurement (range-finding) module which is based on the amount of time of flight measurement Time-of-Flight technology, that can take more excellent ranging capabilities.
- FlightSense ™ technology is the light is reflected by the target object back in time to provide accurate distance measurement data. Conventional sensors can only return intensity of the reflected signals, and can not provide an accurate distance. Compared with conventional infrared sensors, STMicroelectronics FlightSense ™ technology more unique advantages, including measuring the distance farther (reflectivity ranging with the target object has no direct relation), high frame rate (frame rate), and low power consumption.
- STMicroelectronics VL6180X module integrates FlightSense ™ proximity sensors (proximity sensor) and the ambient light sensor (ambient-light sensor, ALS), provides basic gesture recognition, simplified user interface design, and improve product performance. The new products can support a number of innovative applications on the market, including smart phones, tablet computers, game control system, while providing increased performance consumer electronics and industrial products.
- FlightSense technology also is used for the smart phone G3 laser autofocus.
- VL6180X module takes 4.8mm x 2.8mm x 1.0mm optical package LGA12. According to the working environment, precise measurement of 100mm or more from the target object. The module is equipped with I2C interface and two programmable GPIO pins. The main controller via I2C interface to control the optical module, the read distance or ambient light intensity data; and GPIO pins can be configured to achieve the threshold (threshold) applications.
- ST's new evaluation kit VL6180X Explorer allows designers to easily play all the potential of this proximity sensors, not only enables customers to quickly get started FlightSense technology systems,but also to support the application development. The kit includes detachable USB connector, STM32Nucleod Development Boards VL6180X sensor expansion board. The VL6180X sensor expansion board integrated sensor, 4 LED display and control distance and ambient light sensing switch switching function. The display shows the distance or ambient light intensity of the object's data.

Parameters:
- Distance: 0-50cm
- IR emitter: 850nm
- I2C address: 0x29 (7-bit)
- Ambient light sensor: 0.038 to 50klux (2) 16-bit output (3)

Package Included:
- 1 x CJMCU-6180 VL6180 Development Board
