Feature:
- Platform has mounting holes for 51 MCU controller,Arduino Mega168 controller,Arduino Mega328 controller,Arduino Mega1280 controller,32-CH servo controller
- Two degrees of freedom servo holder lock slot
- Collision switch mounting hole
- Front panel can be mounted infrared obstacle avoidance sensors,infrared distance sensor,light sensor,ultrasonic sensor, bright LED lights,etc.
- Platform body uses hard aluminum alloy materials,which has light weight,high strength,hard deformation
- Mounting holes for commonly used DC Gear Motor,the motor and tires can be replaced based on personal preferences
- Large elastic rubber tires,with shock absorption,abrasion resistance,grip and strong,able to adapt to smooth and rough pavement
- Ideal for Arduino fans
- Enjoy your fun of DIY Robot
Specification:
- Wheel Diameter: 120mm
- Wheel Width: 60mm
- Platform Length: 195mm (Body Length: 270mm)
- Platform Width: 142mm (Body Width: 280mm)
- Platform Height: 120mm
- Platform Weight: 1280g
- Distance between Chassis and Ground : 26mm
- Motor Rated Voltage: 12V DC
- Motor Load Speed: 100RPM
- Motor Rated Speed: 90RPM
- Motor Gearbox Length: 19mm
- Motor Rated Current: 0.52A
- Motor Rated Torque: 0.263N.m
- Motor Maximum Torque: 0.597N.m
Kit List:
- 1 x 4WD Platform Plate-Stay (upside)
- 1 x 4WD Platform Plate-Stay (underside)
- 2 x 4WD Platform Baffle (front and behind)
- 2 x 4WD Platform Motor Mounting Plate(right and left)
- 1 x Power Switch Interface Board
- 1 x Power Toggle Switch
- 1 x Battery Charging Interface
- 4 x DC Gear Motor
- 4 x Large Elastic Rubber Off-Road Wheel
- 8 x Cable for DC Geared Motors
- 1 x Shrink Tube
- 5 x Black Tie
- 2 x Charging Switch Cable(Red And Black)
- 4 x Couplings
- 28 x Cross Recess Screws M3*6
- 4 x Hex Nut M3
- 4 x Nylon Column M3+20
- 1 x Hex Wrench
- 1 x ArDuino UNO R3 controller
- 1 x Dual H DC motor control board
- 1 x Senor board V5.0
- 1 x USB interface cable
- 2 x 3P sensor cable
Package List:

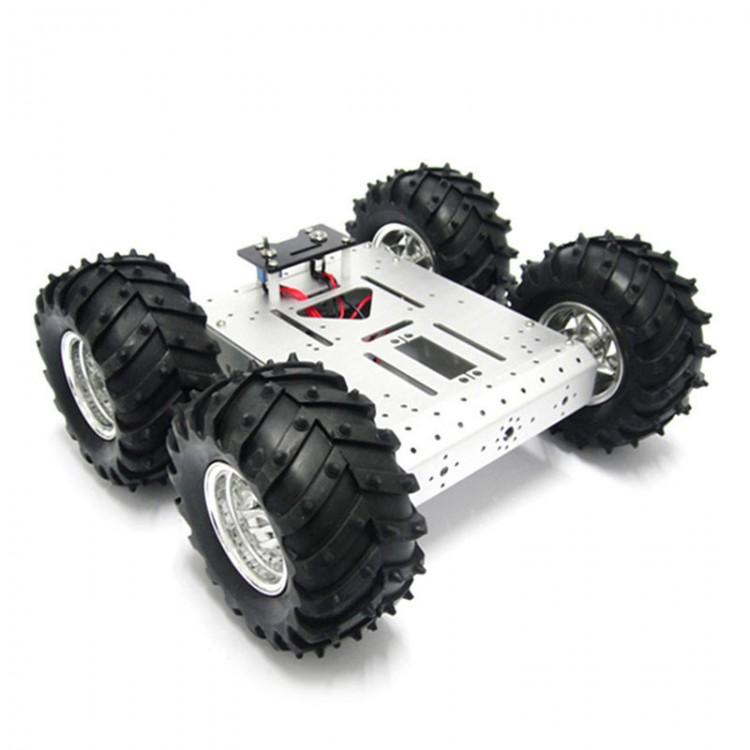

- 1 x 4WD WIFI Cross-country Off-road Robot Smart Car Kit
