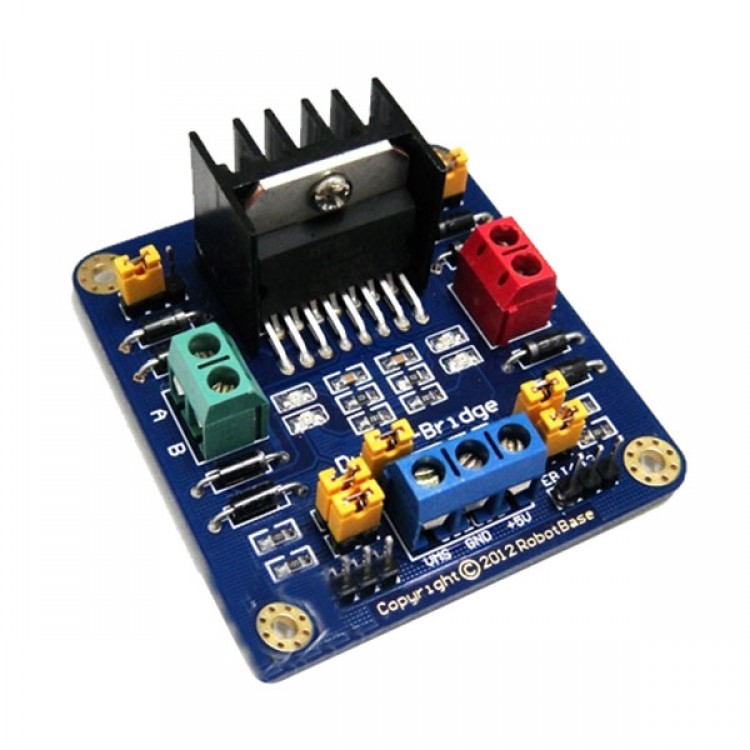

Arduino Dual H Bridge DC Motor Drive Module Stepper Motor Drive Board for Robot

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.33
  • Price in reward points: 193 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.94 $18.56 $17.98 $17.20 Contact US
Quantity:

Arduino Dual H Bridge DC Motor Drive Module Stepper Motor Drive Board for Robot

Description:

- Drive chip: L298N dual H bridge DC motor drive chip
- Power supply range: 5----46V
- Peak current Io: 2A
- Logic peak current Io: 2A
- Logic terminal power supply range: 5---7V degree
- Logic part working current voltage range: 0---36mA
- Control signal input voltaeg range:
   low level: -0.3V≤Vin≤1.5V
   high level: 2.3V≤Vin≤Vss
- Enabling signal input voltage range:
    low level: -0.3≤Vin≤1.5V (control siganl not available)
     high levle: 2.3V≤Vin≤Vss (control signal available)
- Max consumption: 25W (T+75degree)
- Working temp: -25----130degree
- Dimension: 60mm×54mm
- Weight: 32g
- Other expansion: current detection interface, control directional signal, logic part, onbaord power supply interface, resistor choosing interface
