ART-Pi 4.3-inch RGB Screen for STM32H750XBH6 Development Board High Performance Cortex-M7 for RT-Thread
Description:
- As the official hardware of RT Thread, ART-Pi can always get the native technical support of the official team when learning for RT-Thread based on it. It is a good gospel for both beginners and senior engineers. I hope you can use the platform of ART-Pi to avoid detours in learning for RT-Thread and other embedded technologies.

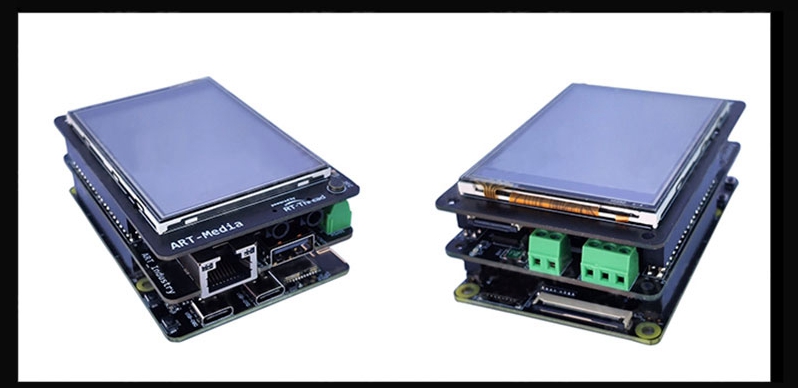

- In addition, ART-Pi will officially launch two expansion boards, called Industry IO and Media-IO. The former supports commonly used interface protocols in the industrial control field, such as 232, 485, CAN, Ethernet, etc., as well as 5V~24V separate power supply to help everyone develop and apply in the industrial control field; The latter has peripherals and interfaces commonly used in the multimedia field, such as RGB touch screen, camera interface, audio CODEC chip, etc., allowing developers to play more new tricks in the multimedia field. ART Pi is equipped with the official expansion board, which can provide more choices on the way of learning and upgrading, and also make the idea landing more smoothly.
Features:
- STM32H750XBH6: Cortex-M7, master frequency up to 480Mhz
- 16 KB I/D Cache, 1MbytesRAM
- Nor Flash x 2 (W25Q128, W25Q64)
- AP6212 (WiFi +Bluetooth)
- USB OTG with Type-C connector
- LCD (RGB 888)
- SDRAM (32M)
- SD Card
- ART Expansion port
- On-board ST-LINK/V2.1
Driver Support:
- UART
- SPI
- SDMMC
- CAN
- QSPI
- ADC
- PWM
- DCMI
- SAI
- LTDC
- USB
- ETH
- SDRAM
- HRTIM
- I²C
Package Included:

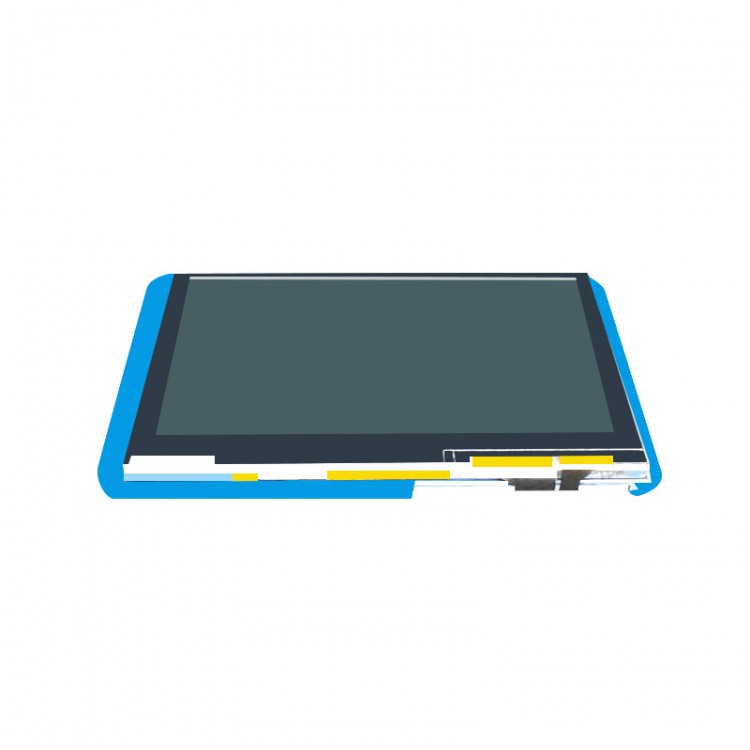

- ART-Pi 4.3-inch RGB screen
- USB Cable (Type-C)
