ASM168 Diesel Generator Controller Genset Controller Module Automatic Start Replacing GTR-168
Features:
- LED displays the alarm status of diesel generator
- Speed signal is taken from the generator (60-300V AC)
- Optional frequency 50/60HZ
- Provide fuel valve and electric shutdown output ports; suitable for different types of diesel engines
- Provide charging generator D+ signal output
- Two programmable output ports. Programmable for preheating, idle control, throttle servo motor control, ATS switching, alarm and the like
- Remote start function
- Provide three working modes and status indication of shutdown, manual start and automatic mode
- All parameters are set through 10 DIP switches on the back panel
- All output ports are 5A relay output, with built-in freewheeling diode
- Modular design, quick connection terminal wiring, embedded installation, compact structure, and small size
- Advanced MCU design featuring stable performance and easy operation
Specifications:
- Model: ASM168
- Working voltage: DC 8.0V-45V, continuous power supply
- Power consumption: < 3W (<2W in standby mode)
- Frequency signal: 0-100Hz, 100V-300VAC
- Output relay: 5AMP, 24V DC
- Dimensions: 72 x 72 x 58mm/2.8 x 2.8 x 2.3"
- Hole spacing of its panel: 66 x 66mm/2.6 x 2.6"

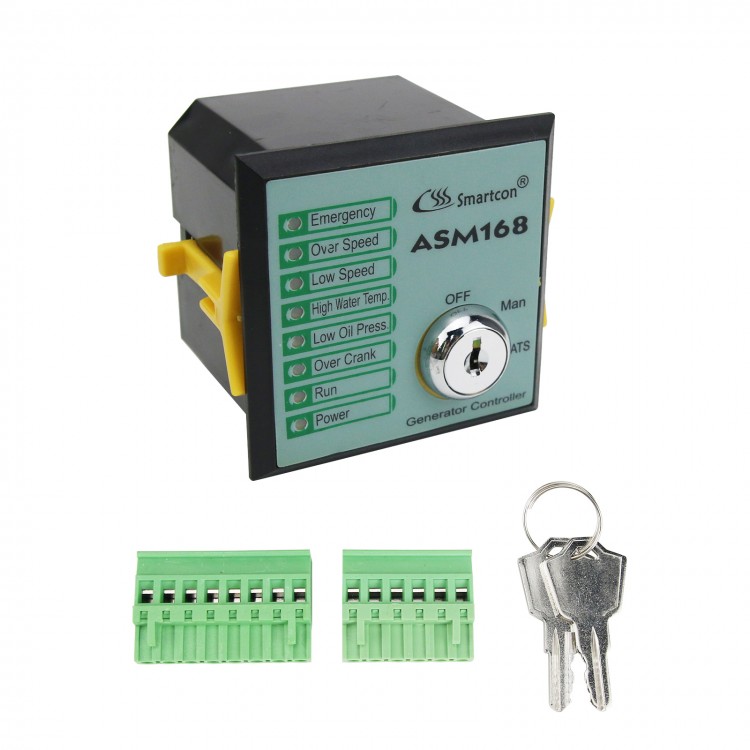

Package Included:
- 1 x Generator Controller
- 2 x Terminal Blocks
- 2 x Keys
