Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $38.64 | $37.85 | $36.67 | $35.09 | Contact US |

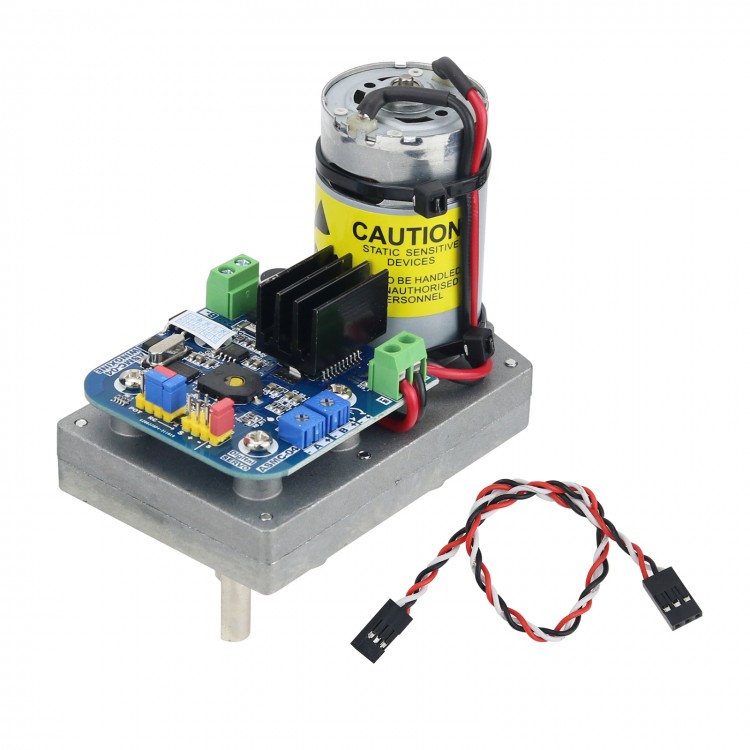

ASMC-05A 12-24V 110kg.cm High Torque Servo High Power Servo Robot Servo for Large Robotic Manipulator
Features:
- Suitable for servo controller, model airplane wireless remote control and analog voltage control
- Alloy gear high-power motor with high torque output
- Aluminum alloy gearbox body is ultra-light
- Easy to install and durable to use
Application:
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line manipulator control
- Precise control of valve angles
- Large camera PTZ remote control
- Various occasions that require high torque angle control
Rated Parameters:
- Rated voltage: 12V~24V/DC (7V/MIN~30V/MAX, limit voltage)
- No-load current: <500mA (current limit: 3A. It is recommended to use a switching power supply or battery greater than 3A)
- Limit angle: ±150° or 0°~300° (MAX). Servo has electronic limit adjustment
- Control method: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control. 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency), suitable for multi-channel servo controller mode. 2. Analog voltage mode: 0V-5V input voltage (0.22V corresponds to 0° and 4.78V corresponds to 300°)
- Material: Gear and shaft: alloy steel; gearbox body: cast aluminum
- Weight: 550g/1.2lb
- Dimensions: 95 x 60 x 110mm/3.7 x 2.4 x 4.3"
- Mechanical life: >1,000,000 times/full load (conservative value)
Limit Parameters:
- Limit voltage: 7V~30V/DC (MAX)
- Current limit: 3A±0.2A (MAX)
- Working angle: ±150° or 0°~300° (MAX)
- Control methods: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency); 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz~333Hz (frequency). 2. Analog voltage mode: 0V-5V input voltage (0.22V corresponds to 0° and 4.78V corresponds to 300°)
- Weight: 510-560g/1.1-1.2lb
Specifications:
- Model: ASMC-05A
- Starting torque: 110kg.cm MAX.
- Holding torque: 100kg.cm MAX.
- Rated speed (24V power supply): 0.12s/60°
Package Included:
- 1 x Servo
Packaging Details:
- G.W.: 0.65kg
Note:
- Battery is not included in the package.
