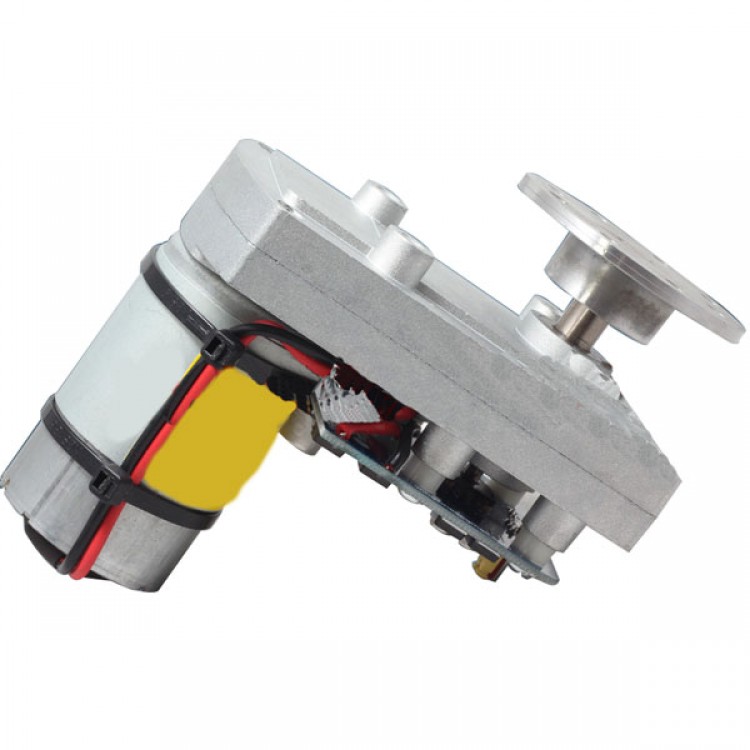

ASME-01A Super Large Torque Alloy Servo High-power Servos 260KG.cm Robot Mechanical Arm

ASME-01A Super Large Torque Alloy Servo High-power Servos 260KG.cm Robot Mechanical Arm

Specification:
- Operating voltage                   :    24V(DC)
- Limit voltage                            :    12V to 30V(DC)
- No-load current                       :    <30mA
- Maximum torque                    :    260kg.cm (24V)
- No-load speed                          :   0.12s/60 Degree(adj)
- Rotation angle                         :    0° to 270 ° (adj)
- Input signal pulse width      :    0.5 to 2.5ms
- Input Mode                               : pulse signal or analog voltage signal
- Voltage signal input range  : 0V to +5 V
- Control accuracy                     : 0.32 °
- Weight                                        : 560g
- Gear Material                           : Steel
- Dimensions                               : 95.5mm X 60.5mm X 102.6mm
- This product does not include pictures inside the arm plate, such as the need to Purchasing.
- Applications: medium and large robots, robots and other high-power high-torque control.
