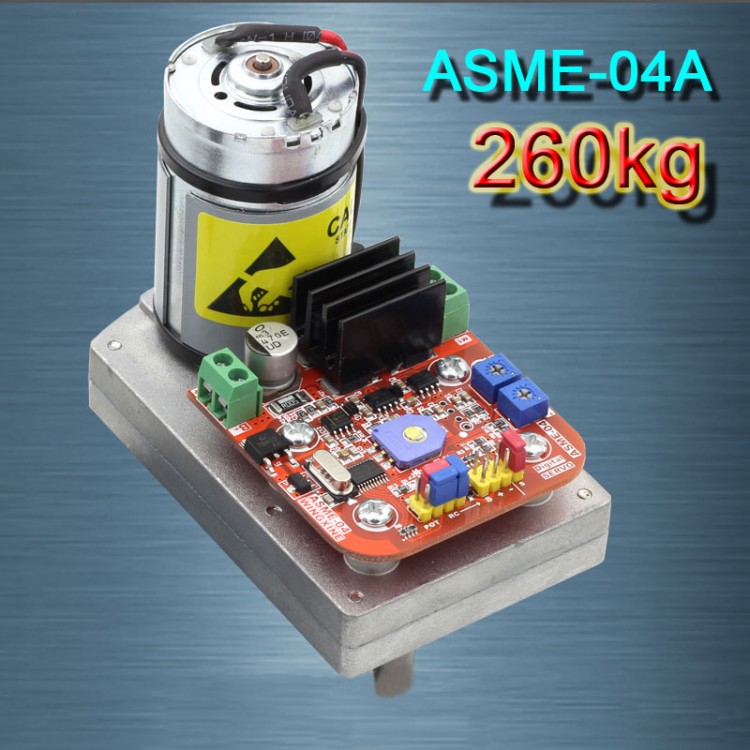

ASME-04A High Torque Servo Alloy Gear Robot Servo 12-24V 260Kg.cm For Large Robot Mechanical Arms

ASME-04A High Torque Servo Alloy Gear Robot Servo 12-24V 260Kg.cm For Large Robot Mechanical Arms

Advantages:
- Super stable, smooth running, and super anti-interference ability.
- Digital steering servo has sensitive response, large stroke and zero blind zone.
- Suitable for Futaba, JR, SANWA, Hitec and other remote-control systems.
- Unique power stabilization technology ensures the continuous operation of servo, which is completely different from other steering servos that use fuse protection. Once the fuse is blown, servo provided by other manufacturers cannot continue to work. Servo in our shop can stably work within safe torque.

Features:
- For steering gear controller, model airplane wireless remote control and analog voltage control
- Alloy gear high power motor high torque output
- Aluminum alloy gearbox body is ultra-lightweight
- Easy to install and durable

Applications:
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line manipulator control
- Precise control of valve angle
- Large camera PTZ remote control
- Various occasions requiring large torque angle control

Rated Parameters (Recommended Operating Conditions):
- Rated voltage: 12V~24V/DC (11V/MIN~30V/MAX, limit voltage)
- No-load current: <500mA (current limit: 5A, it is recommended to use a switching power supply or battery greater than 5A)

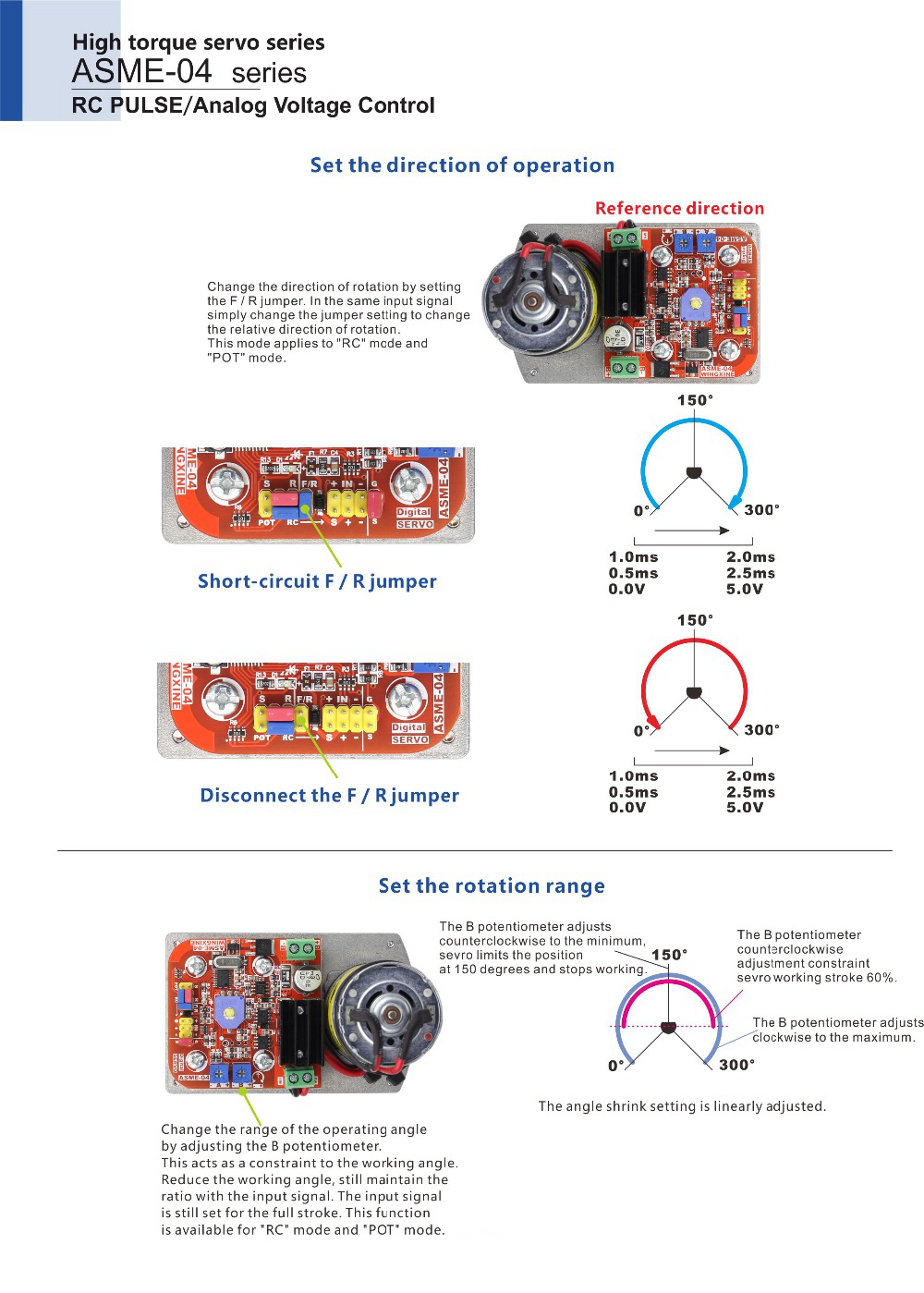

- Limit angle: ±150° or 0°~300° (MAX), the steering gear has electronic limit adjustment

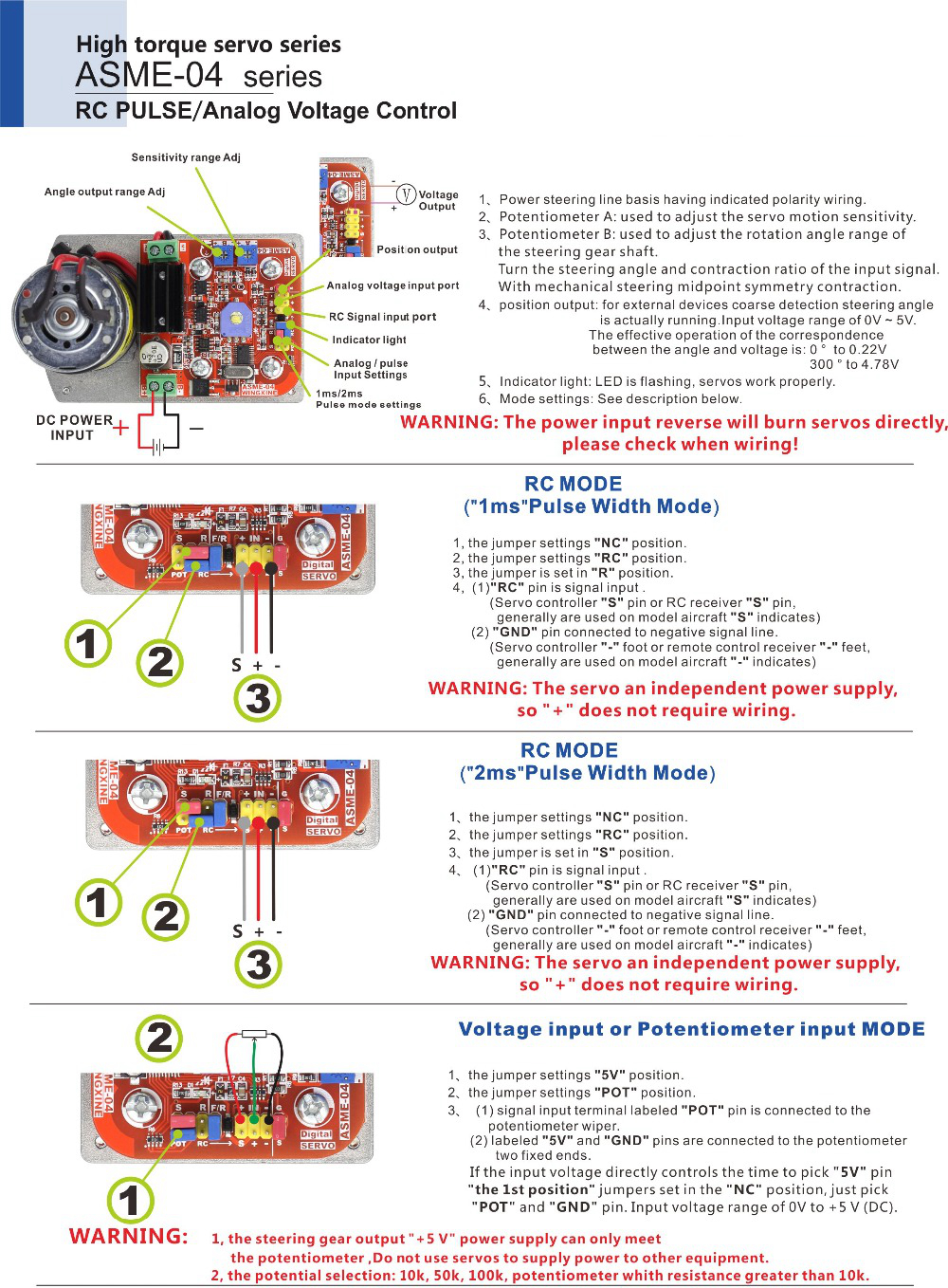

- Control ways:
* RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control. 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency), suitable for multiple-way steering gear controller control
* Analog voltage mode: 0V-5V input voltage (0.22V corresponds to 0°, 4.78V corresponds to 300°)
- Materials: gear and shaft: alloy steel; gear box body: cast aluminum
- Product weight: 550g
- Dimensions: 95mm*60mm*110mm
- Mechanical life: >1,000,000 times/full load (conservative value)

Limit Parameters:
- Limit voltage: 11V~30V/DC (MAX)
- Current limit: 5A±0.2A(MAX)
- Working angle: ±150° or 0°~300° (MAX)
- Control ways:
* RC mode: 1ms pulse mode: 1ms~2ms(pulse width)/50Hz~333Hz(frequency); 2ms pulse mode: 0.5ms~2.5ms(pulse width)/50Hz~333Hz(frequency)
* Analog voltage mode: 0V-5V input voltage (0.22V corresponds to 0°, 4.78V corresponds to 300°)
- Product weight: 510g~560g

Model Specifications:
* ASME-04A: Starting torque 260kg.cm max; Holding torque 220kg.cm max; Rated speed (24V power supply): 0.12s/60°
* ASME-04B: Starting torque 380kg.cm max; Holding torque 340kg.cm max; Rated speed (24V power supply): 0.5s/60°

Package Included:
- 1 x Servo

Note:
- Battery is not included in the package.
- Servo horn pictured is not included.
