Assembled 1.3inch Screen High Performance M2201 Duplex Version MMDVM Mini Hotspot with Power Cable

Assembled 1.3inch Screen High Performance M2201 Duplex Version MMDVM Mini Hotspot with Power Cable

Description:
- It is a MMDVM digital interphone modem (hotspot) box. You can connect WIFI or mobile phone hotspots or network cables, and realize the national interconnection through it by an ordinary digital interphone, so as to solve the restriction of the connection distance of the ordinary digital interphone.
- MMDVM motherboard adopts imported components, temperature-compensated crystal oscillator, stable performance and low bit error rate after long-time startup.
- The new version of MMDVM duplex dual-time slot digital hotspot has the advantages of optimized wiring, perfect component layout, low heat generation and fast heat dissipation, etc. It is suitable for long-term startup work, and it has a 1.3inch OLED screen. Power can be supplied by charging bank or 5V mobile phone charger. Duplex boards have the advantage of dual timeslots for DMR. All debugging parameters are carefully adjusted based on the DMR system. The calibrated DMR system will be more stable in use, and the sound quality reduction will be greatly improved. As for other systems, users can use the same stability in DMR, D-Star, YSF (C4FM), P25, as long as the frequency offset is slightly adjusted.

Specification:
- Frequency: U segment (420.000-434.900/438.100-470)
- Supported mode: DMR, D-star, YSF (C4FM), P25, NXDN, POCSAG
- Power: 20W
- Material of shell: Acrylic
- Size: 57 x 57 x 36mm
- Screen: 1.3inch OLE
- External Power supply: MINI port 5V 2A
- Internet connection: WIFI or Network Cable
- Hotspot motherboard: Duplex

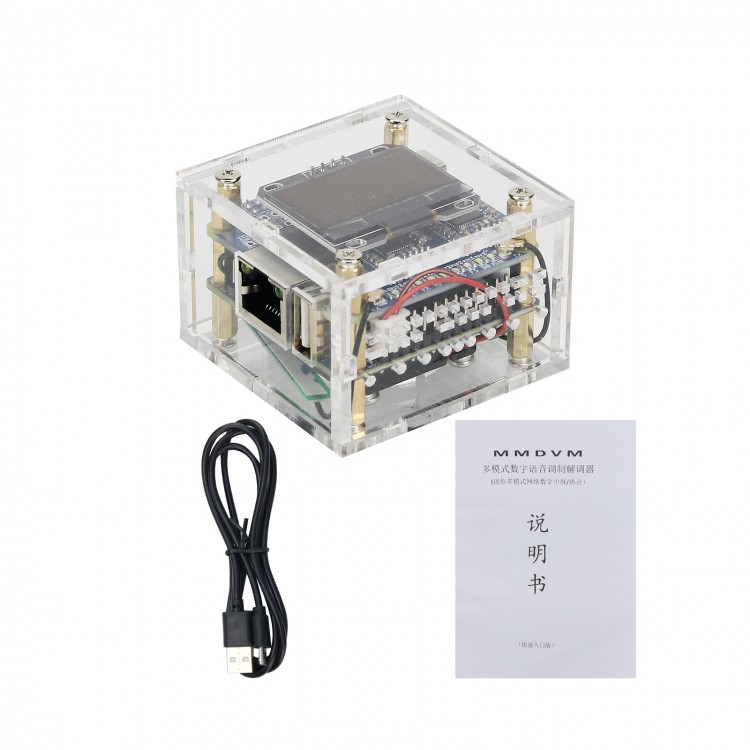

Package Included:
- 1 x Host
- 1 x Power Cable
