AT-779UV 25W 10-50KM VHF UHF Transceiver Mobile Radio with 1.4 Inch Color TFT Screen 200 Channels
Features:
- Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation
- Power: 25W/10W/5W
- 200 channels
- 1.44 Inch color TFT display
- Amateur mode and professional mode for different operation requirements
- CTCSS, DCS, DTMF, 2Tone/5Tone setting for each single channel
- 11 groups fixed scrambler code plus self-defined scrambler code
- LCD brightness control
- Main unit and microphone key lock function
- Compander function
- Tone Pulse frequency
Technical Parameters:
General specifications:
- Frequency range: VHF: 144-146MHz (EXP: 136-174MHz); UHF: 430-440MHz (EXP: 400-490MHz); FM: 86.7-108MHz
- Number of channels: 200 channels
- Channel spacing: 25KHz (wideband); 12.5KHz (Narrowband)
- Phase-locked step: 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
- Operating voltage: DC 13.8V±15% or DC 12V~28V
- Squelch: carrier /CTCSS/DCS/5Tone/2Tone/DTMF
- Frequency stability: ±2.5ppm
- Operating temperature: -20°C to +60°C
- Dimensions: 124 x 101 x 36mm/4.9 x 4 x 1.4" (main unit)
- Weight: 0.45kg/1lb (main unit)
Transmitter:
- Output power: VHF: 25W/10W/5W; UHF: 25W/10W/5W
- Modulation: 16KΦF3E (wideband); 11KΦF3E (Narrowband)
- Adjacent channel power: ≥70dB (wideband); ≥60dB (narrowband)
- Signal-to-noise ratio: ≥40dB (wideband); ≥36dB (narrowband)
- Spurious emission: ≥60dB (wideband); ≥60dB (narrowband)
- Audio response: -3dB to +1dB (0.3~3KHz) (wideband); -3dB to +1dB (0.3~2.55KHz) (Narrowband)
- Audio distortion: ≤5%
Receiver:
- Sensitivity (12dB SINAD): ≤ 0.25μV (wideband); ≤ 0.35μV (narrowband)
- Adjacent channel selectivity: ≥ 70dB (wideband); ≥ 60dB (narrowband)
- Audio response: -3dB to +1dB (0.3~3KHz) (wideband); -3dB to +1dB (0.3~2.55KHz) (Narrowband)
- Signal-to-noise ratio: ≥45dB (wideband); ≥40dB (narrowband)
- Audio distortion: <3%
- Audio output power: >2W at 10%

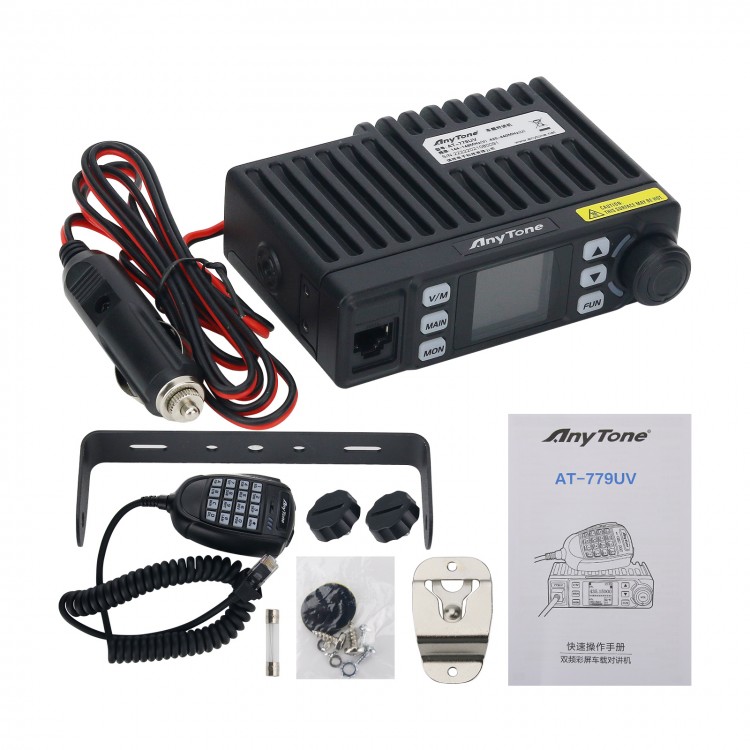

Package Included:
- 1 x Set of transceiver
