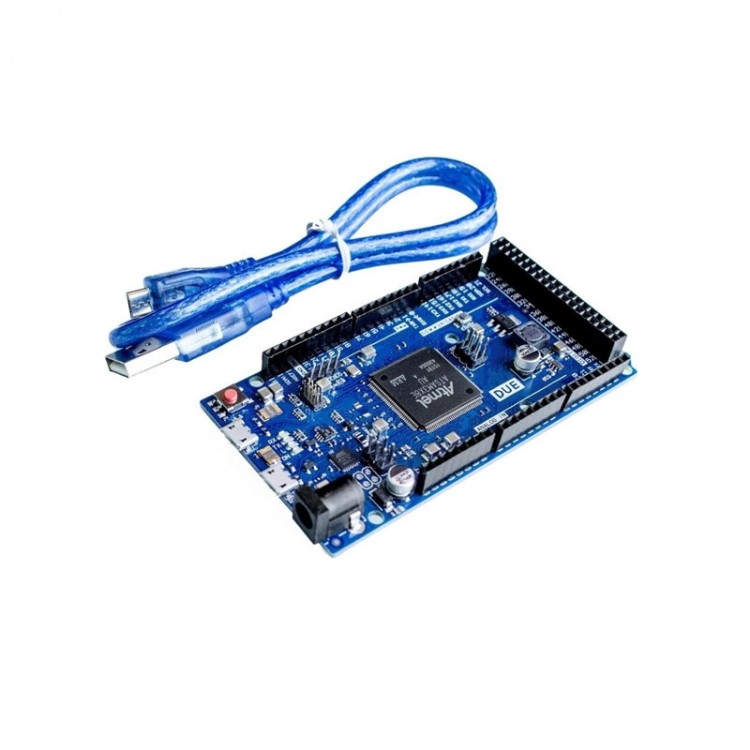

AT91SAM3X8EA DUE Board R3 32Bit Main Control Development Board Module USB Cable for Arduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$45.83
  • Price in reward points: 458 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.91 $44.00 $42.62 $40.79 Contact US
Quantity:

AT91SAM3X8EA DUE Board R3 32Bit Main Control Development Board Module USB Cable for Arduino

Parameters:

- Processor: AT91SAM3X8EA
- Operating voltage: 3.3V
- Input voltage: 7-12V
- Input voltage (limit): 6-20V
- Digital I/O ports: 54 (12 PWM outputs)
- Analog input pins: 12
- Analog output pins: 2 (Digital-to-Analog Conversion)
- Total current of DC output of female header I/O port: 130mA
- 800mA from 3.3V supply pin
- 5V power supply pin with 800mA current
- Internal flash capacity: 512KB
- SRAM: 96KB (two banks: 64KB and 32KB)
- Clock frequency: 84 MHz

Package Included:
- 1 x Board
- 1 x USB Cable
